16K 0.311X Bi-Telecentric Lenses | DTCM16K-190H-AL COOLENS®

DTCM16K-190H-AL
$9,741.00 USD
Shipping calculated at checkout.
Quantity
16K 0.311X Bi-Telecentric Lenses | DTCM16K-190H-AL COOLENS®-OKLAB

Description

Model NO. DTCM16K-190H-AL Image Circle Diameter (Φmm) 59(16K)
Magnification(x) 0.311 Working Distance(mm) 330±5
NA 0.0179 Type Bi-Telecentric
Mount M72 Object Field of View(Φmm) 190
Best Aperture(f/#) 8.7 MTF30 (lp/mm) >100
Depth of Field(mm) ±6.6@F16 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 913±5
Length (mm) 571.2 Weight(kg) 11.1
Measured Depth of Field (mm) 5 Filter Screw Size  M223x1.0
Field of View (mm × mm)
 48.7×29.0 with KAI-47051 156.6×93.3
57.4mm with 16K×3.5/3.53um 184.6mm
57.4mm with 8K×7um/7.04um 184.6mm
Compatible Lighting
 Telecentric LED Lighting DTCL-190H-xW-y
Beam Diameter 190mm

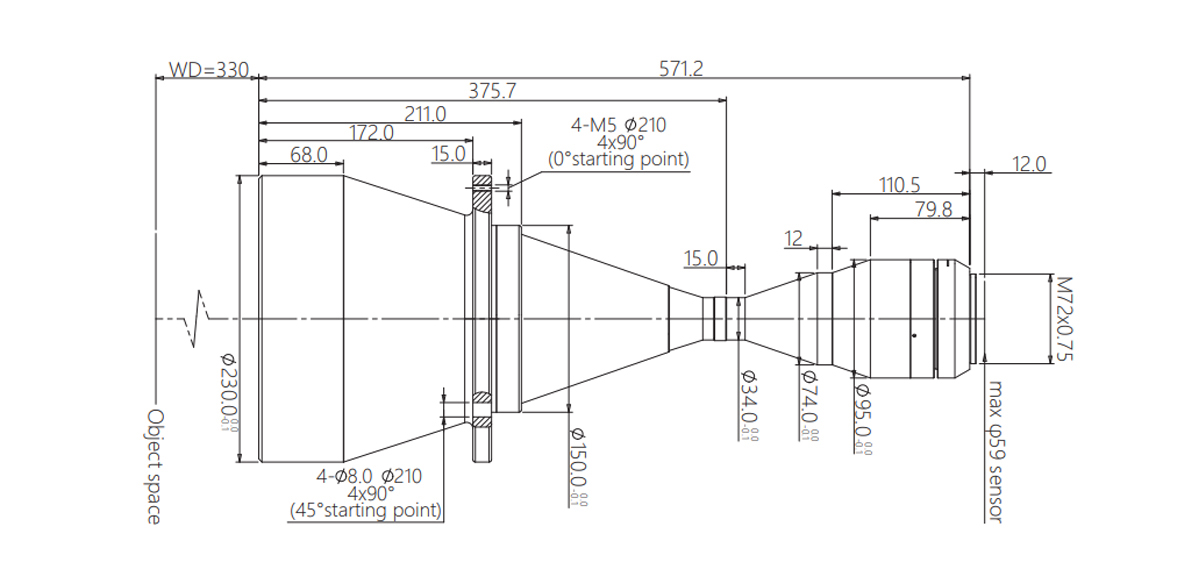

Dimensions

Naming Rule

Important Note
