150M 0.313X Bi-Telecentric Lenses | DTCM150M-216-M72-19.5-AL COOLENS®

DTCM150M-216-M72-19.5-AL

Image Circle:67.6(150M)mm, Magnification:0.313X, FoV:216mm, WD:372±5mm, NA:0.01968, Mount:M72, Type:Bi-Telecentric Lenses

$13,052.00 USD

Quantity

Description

Model NO.		DTCM150M-216-M72-19.5-AL		Image Circle Diameter (Φmm)		67.6(150M)
Magnification(x)		0.313		Working Distance(mm)		372±5
NA		0.0197		Type		Bi-Telecentric
Mount		M72		Object Field of View(Φmm)		216
Best Aperture(f/#)		7.9		MTF30 (lp/mm)		>100
Depth of Field(mm)		±6.5@F16		Distortion Typical(% max)		<0.03
Telecentricity Typical (°max)		<0.05		Length of I/O(mm)		1088±5
Length (mm)		696.1		Weight(kg)		15.201
Measured Depth of Field (mm)		3.5		Filter Screw Size		M249x1.0
Field of View (mm × mm)		150M IMX411 (53.42x40mm）			170.6x127.8

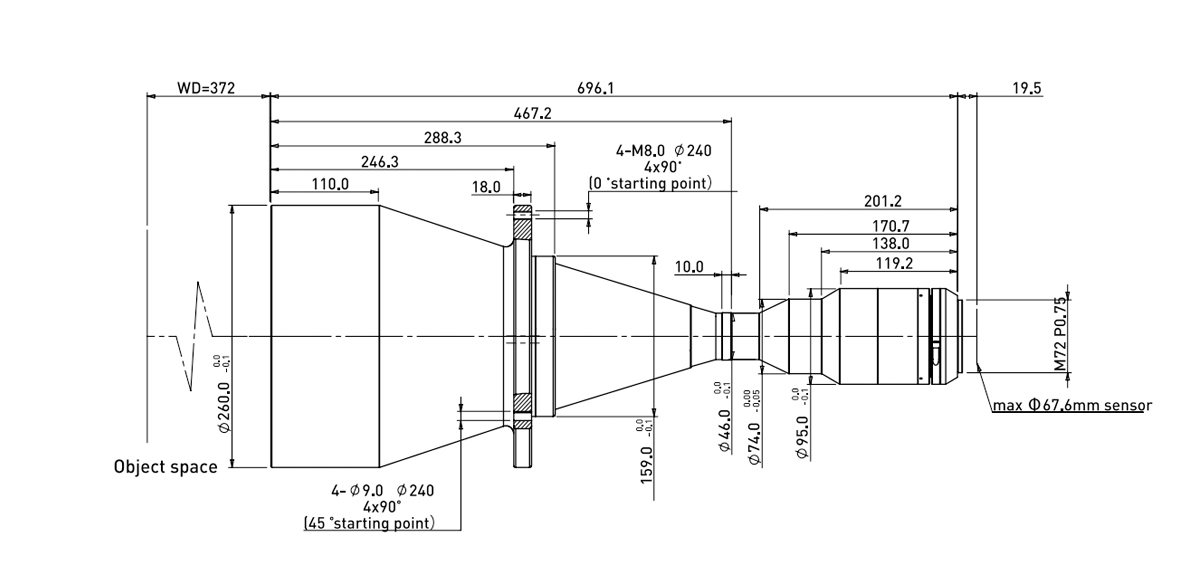

Dimensions

Naming Rule
