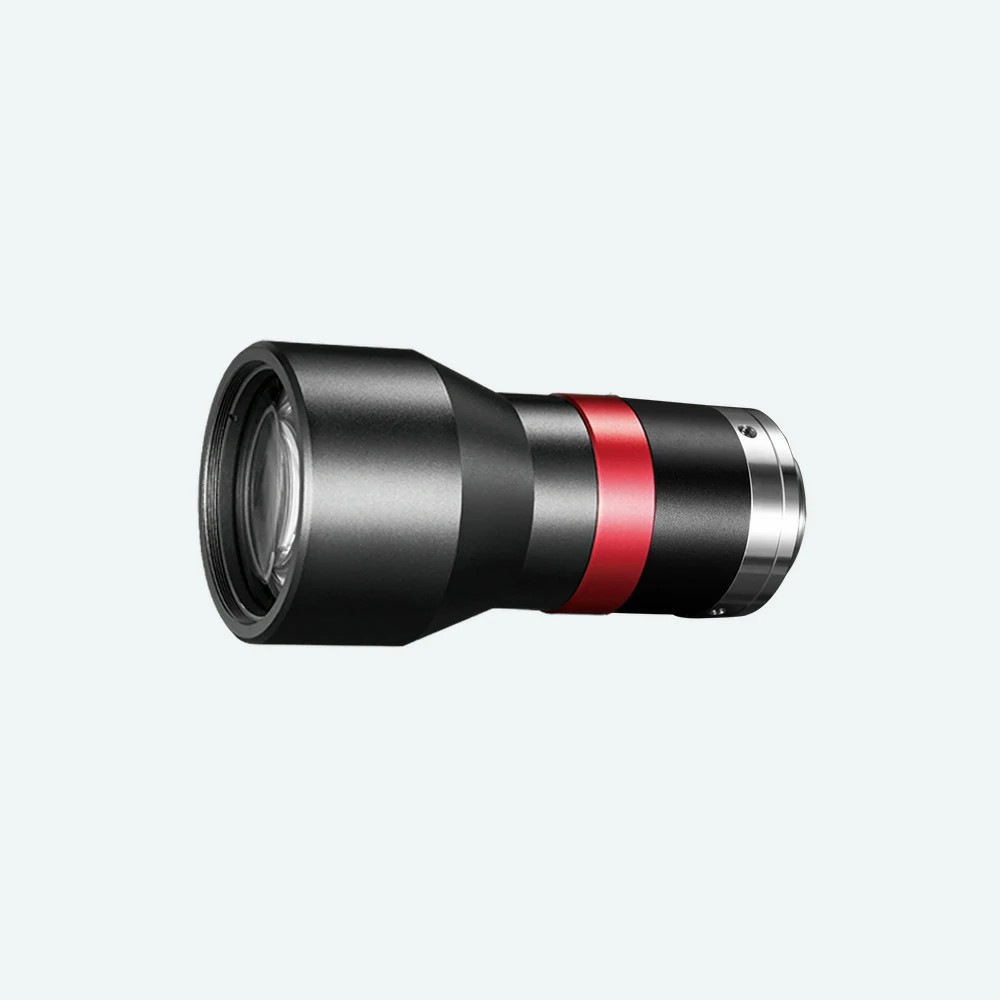

1/1.8" 0.346X Bi-Telecentric Lenses | DTCM118-26 COOLENS®-OKLAB
1/1.8" 0.346X Bi-Telecentric Lenses | DTCM118-26 COOLENS®-OKLAB

1/1.8" 0.346X Bi-Telecentric Lenses | DTCM118-26 COOLENS®

DTCM118-26
Image Circle:9.0(1/1.8")mm, Magnification:0.346X, FoV:26mm, WD:73±1mm, NA:0.03676, Mount:C, Type:Bi-Telecentric Lenses
$779.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$779.00 USD each
Description

Model NO. DTCM118-26 Image Circle Diameter (Φmm) 9.0(1/1.8")
Magnification(x) 0.346 Working Distance(mm) 73±1
NA 0.0368 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 26
Best Aperture(f/#) 4.6 MTF30 (lp/mm) >170
Depth of Field(mm) ±3.7@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 199±1
Length (mm) 108.2 Weight(kg) 0.3
Measured Depth of Field (mm) 2.2 Filter Screw Size M40x0.5
Field of View (mm × mm) 1/1.8" IMX178 (7.43x4.9) 21.5x14.2
1/1.8" IMX252/265 (7.1x5.3) 20.5x15.3
Compatible Lighting Telecentric LED Lighting DTCL-26-xW-y
Beam Diameter 26mm

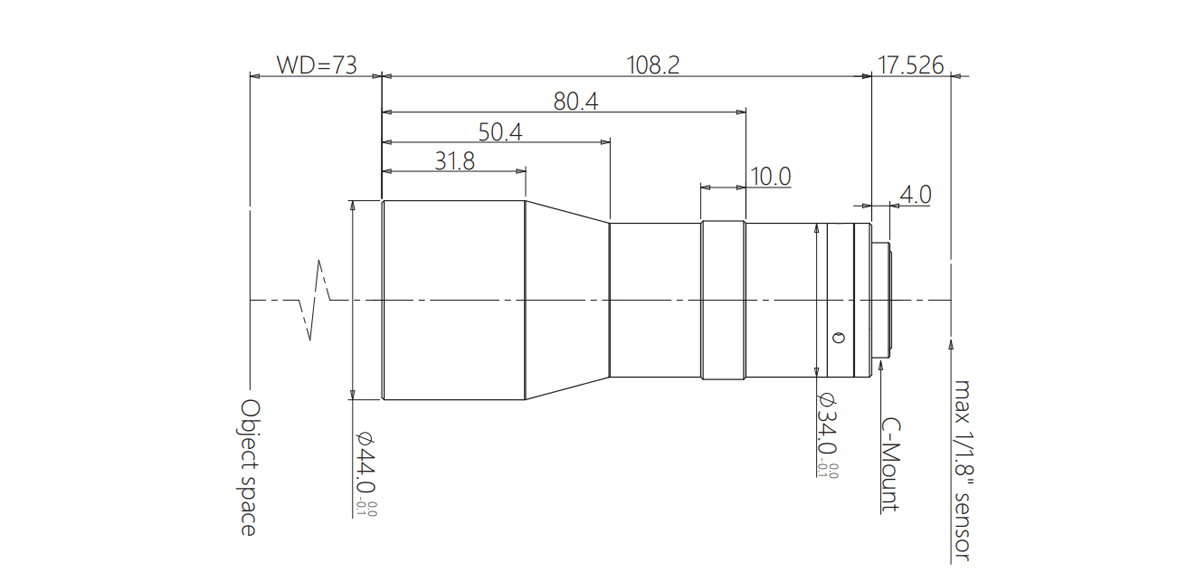

Dimensions

Naming Rule
