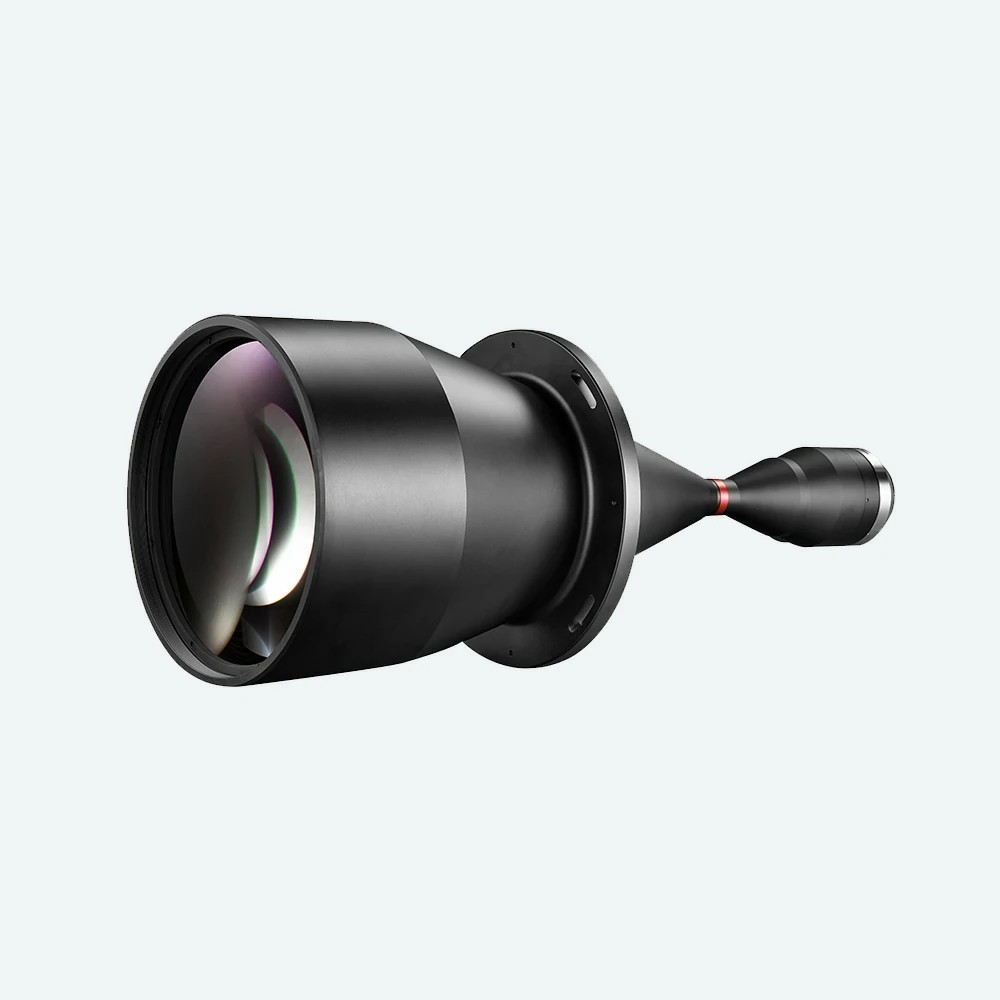

150M 0.356X Bi-Telecentric Lenses | DTCM150M-190H-M72-19.5-AL COOLENS®

DTCM150M-190H-M72-19.5-AL
Image Circle:67.6(150M)mm, Magnification:0.356X, FoV:190mm, WD:330±5mm, NA:0.01902, Mount:M72, Type:Bi-Telecentric Lenses
$10,520.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$10,520.00 USD each
Description

Model NO. DTCM150M-190H-M72-19.5-AL Image Circle Diameter (Φmm) 67.6(150M)
Magnification(x) 0.356 Working Distance(mm) 330±5
NA 0.0190 Type Bi-Telecentric
Mount M72 Object Field of View(Φmm) 190
Best Aperture(f/#) 9.4 MTF30 (lp/mm) >95
Depth of Field(mm) ±3.0@F9.4 Distortion Typical(% max) <0.05
Telecentricity Typical (°max) <0.05 Length of I/O(mm) 952±5
Length (mm) 600.7 Weight(kg) 11.081
Measured Depth of Field (mm) 2.4 Filter Screw Size  M223x1.0
Field of View (mm × mm)
 150M IMX411 (53.42x40mm） 150.1x112.4

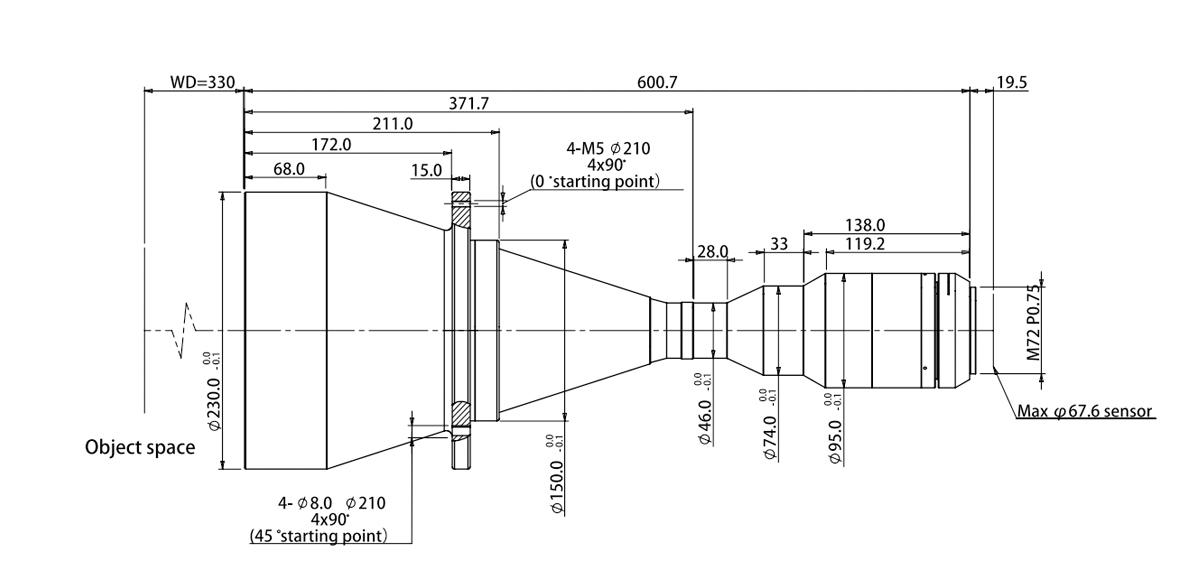

Dimensions

Naming Rule
