1.85" 0.37X Telecentric Lenses | DTCA185-81C-G-M58-AL COOLENS®-OKLAB
1.85" 0.37X Telecentric Lenses | DTCA185-81C-G-M58-AL COOLENS®-OKLAB

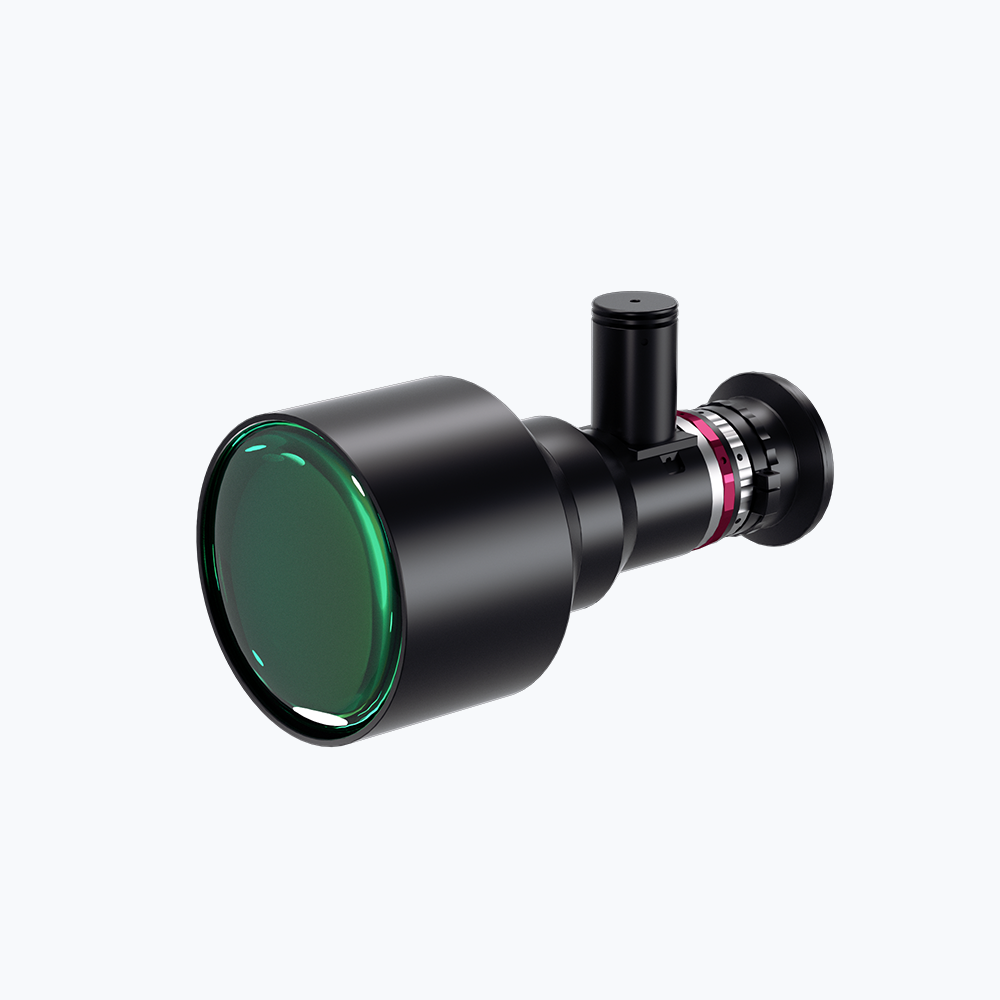

1.85" 0.37X Telecentric Lenses | DTCA185-81C-G-M58-AL COOLENS®

DTCA185-81C-G-M58-AL
Image Circle:20(1.85")mm, Magnification:0.37X, FoV:81.1mm, WD:250mm, NA:0.02312, Mount:M58, Type:Telecentric Lenses
$3,020.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$3,020.00 USD each
Description

Model NO. DTCA185-81C-G-M58-AL Image Circle Diameter (Φmm) 20(1.85")
Magnification(x) 0.37 Working Distance(mm) 250
NA 0.0231 Type Telecentric
Mount M58 Object Field of View(Φmm) 81.1
Best Aperture(f/#) 8 MTF30 (lp/mm) 114
Object Resolution(μm) 14.5 Depth of Field(mm) 4.7
Distortion Typical(% max) 0.02 Telecentricity Typical (°max) 0.09
Length of I/O(mm) 462 Length (mm) 200
Weight(kg) 2.5 Iris Adjustable Yes
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.4
Filter Screw Size M100x0.75
Field of View (mm × mm)
1.75" IMX342 (22.3X16.7) 60.3x45.1

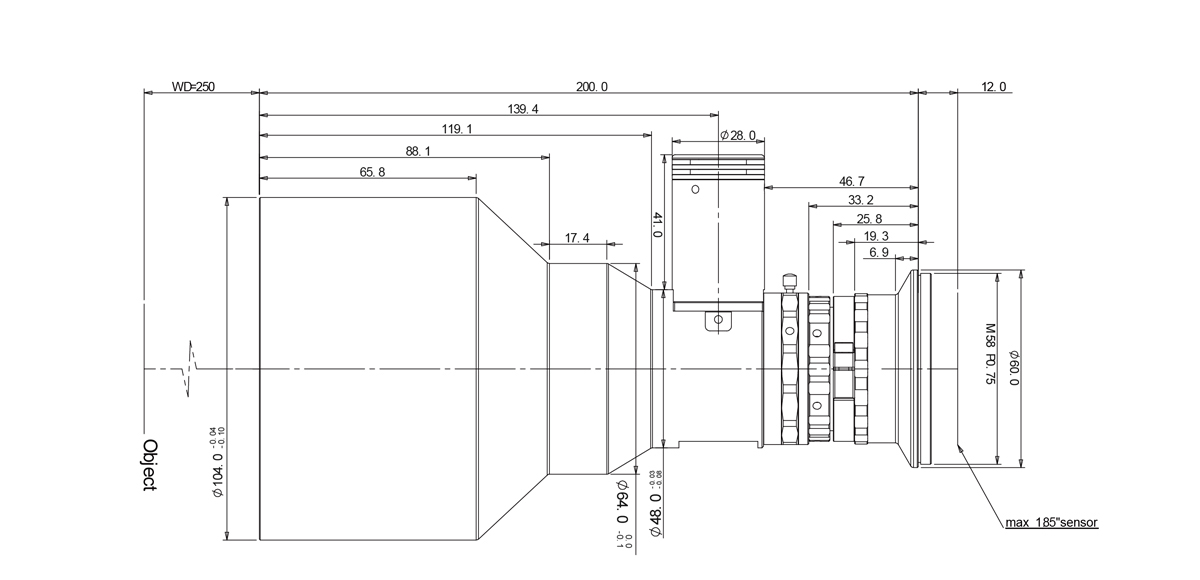

Dimensions

Naming Rule
