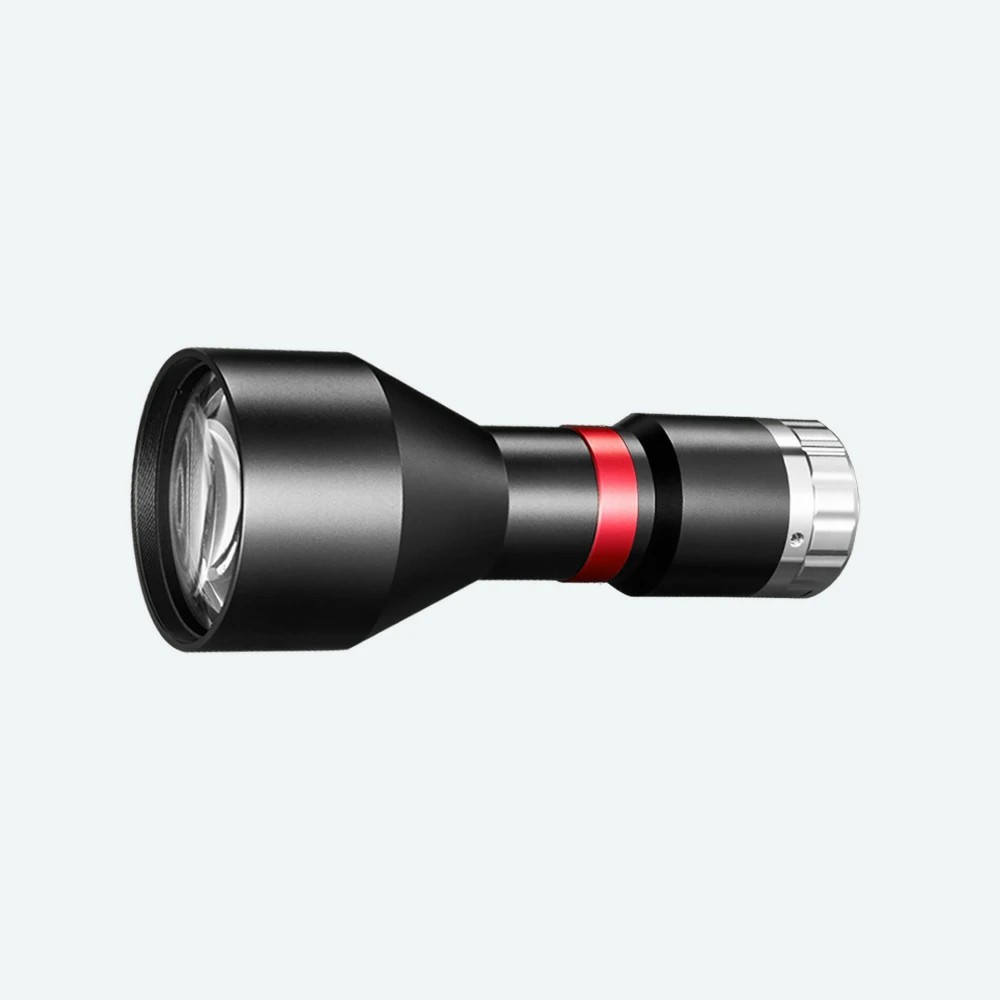

1.1" 0.383X Bi-Telecentric Lenses | DTCM111-48-AL COOLENS®

$1,383.00 USD
Shipping calculated at checkout.
Quantity
1.1" 0.383X Bi-Telecentric Lenses | DTCM111-48-AL COOLENS®-OKLAB

Description

Model NO. DTCM111-48-AL Image Circle Diameter (Φmm) 18.4(1.1")
Magnification(x) 0.383 Working Distance(mm) 128±3
NA 0.0266 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 48
Best Aperture(f/#) 7.2 MTF30 (lp/mm) >115
Depth of Field(mm) ±4.3@F16 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 312±3
Length (mm) 166.7 Weight(kg) 0.6
Measured Depth of Field (mm) 1.8 Filter Screw Size M60x0.5
Field of View (mm × mm)

1" IMX183 (13.13x8.76) 34.3x22.9
1.1" IMX253 (14.19x10.38) 37.0x27.1
Compatible Lighting Telecentric LED Lighting DTCL-48-xW-y
Beam Diameter 48mm

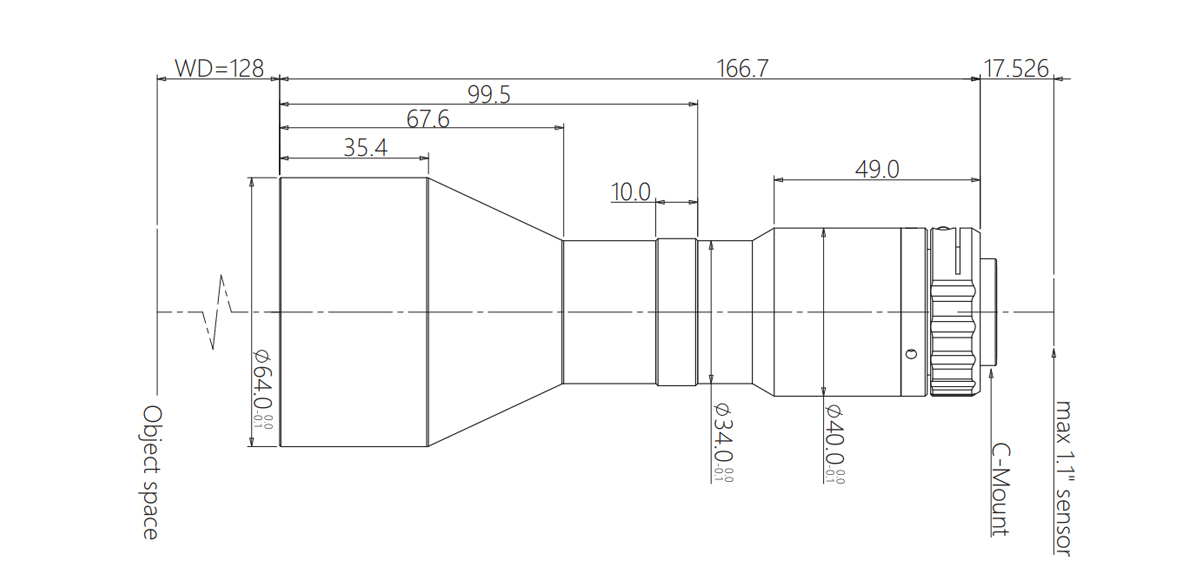

Dimensions

Naming Rule

  • Description

Model NO. DTCM111-48-AL Image Circle Diameter (Φmm) 18.4(1.1")
Magnification(x) 0.383 Working Distance(mm) 128±3
NA 0.0266 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 48
Best Aperture(f/#) 7.2 MTF30 (lp/mm) >115
Depth of Field(mm) ±4.3@F16 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 312±3
Length (mm) 166.7 Weight(kg) 0.6
Measured Depth of Field (mm) 1.8 Filter Screw Size M60x0.5
Field of View (mm × mm)

1" IMX183 (13.13x8.76) 34.3x22.9
1.1" IMX253 (14.19x10.38) 37.0x27.1
Compatible Lighting Telecentric LED Lighting DTCL-48-xW-y
Beam Diameter 48mm

Dimensions

Naming Rule
