Model NO. | DTCM430H-42-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.562 | Working Distance(mm) | 118±3 | ||||
NA | 0.0304 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 42 | ||||
Best Aperture(f/#) | 9.3 | MTF30 (lp/mm) | >96 | ||||
Depth of Field(mm) | ±2.5@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 304±3 | ||||
Length (mm) | 174.1 | Weight(kg) | 0.9 | ||||
Measured Depth of Field (mm) | 1 | Filter Screw Size | M56x0.5 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 42.4x34.0 | |||||
4/3" PYTHON 12K (18.43x13.82) | 43.8x32.8 | ||||||
4/3" CMV8000 (18.48x13.73) | 43.9x32.6 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-56-xW-y | |||||
Beam Diameter 56 mm |

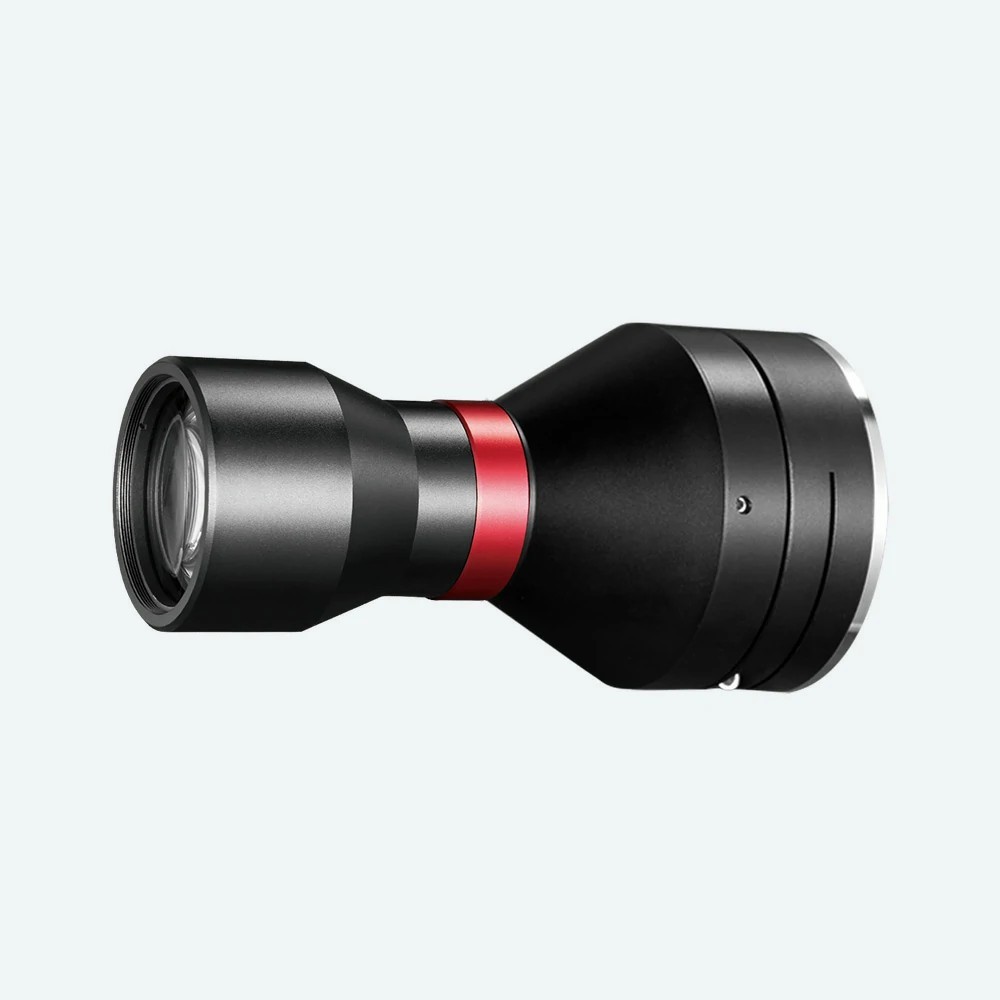

4/3" 0.562X Bi-Telecentric Lenses | DTCM430H-42-M58-AL COOLENS®
$2,046.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM430H-42-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.562 | Working Distance(mm) | 118±3 | ||||
NA | 0.0304 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 42 | ||||
Best Aperture(f/#) | 9.3 | MTF30 (lp/mm) | >96 | ||||
Depth of Field(mm) | ±2.5@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 304±3 | ||||
Length (mm) | 174.1 | Weight(kg) | 0.9 | ||||
Measured Depth of Field (mm) | 1 | Filter Screw Size | M56x0.5 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 42.4x34.0 | |||||
4/3" PYTHON 12K (18.43x13.82) | 43.8x32.8 | ||||||
4/3" CMV8000 (18.48x13.73) | 43.9x32.6 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-56-xW-y | |||||
Beam Diameter 56 mm |
