| Model NO. |
DTCM16K-136-AL |
Image Circle Diameter (Φmm) |
59(16K) |
| Magnification(x) |
0.434 |
Working Distance(mm) |
288±5 |
| NA |
0.0213 |
Type |
Bi-Telecentric |
| Mount |
M72 |
Object Field of View(Φmm) |
136 |
| Best Aperture(f/#) |
10.7 |
MTF30 (lp/mm) |
>80 |
| Depth of Field(mm) |
±4.2@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
813±5 |
| Length (mm) |
512.6 |
Weight(kg) |
5.7 |
| Measured Depth of Field (mm) |
2.2 |
Filter Screw Size |
M160x0.75 |
Field of View (mm × mm)
|
48.7×29.0 with KAI-47051 |
112.2x66.8 |
|
| 57.4mm with 16K×3.5/3.53um |
132.3mm |
| 57.4mm with 8K×7um/7.04um |
132.3mm |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-136-xW-y |
|
|
| Beam Diameter 136mm |

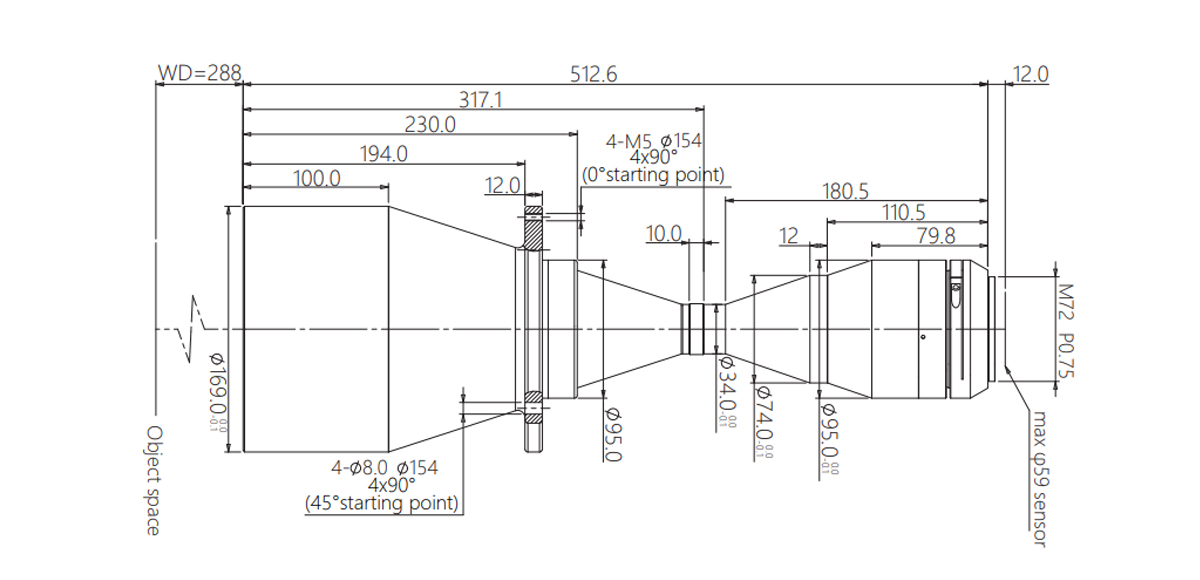

Dimensions
Naming Rule
