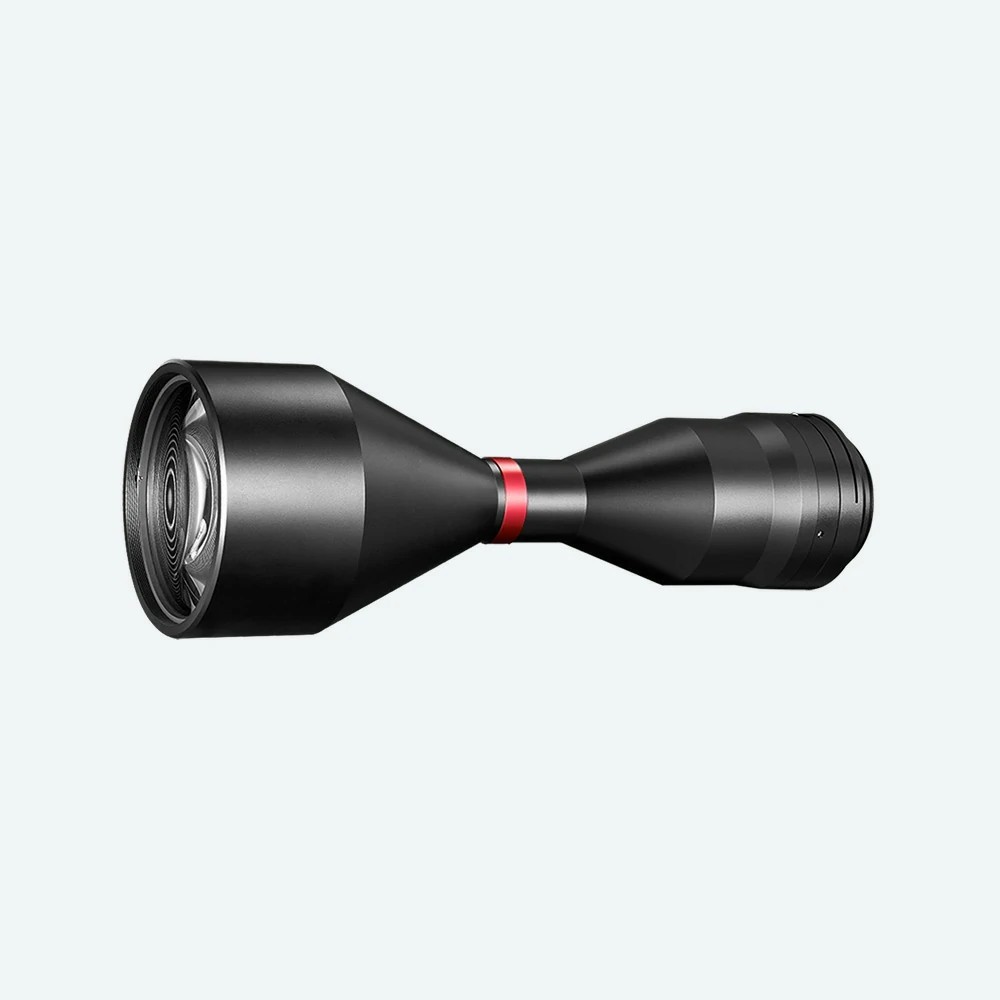

35mm Full 0.484X Bi-Telecentric Lenses | DTCM35FH-90-M58-AL COOLENS®

$3,585.00 USD
Shipping calculated at checkout.
Quantity
35mm Full 0.484X Bi-Telecentric Lenses | DTCM35FH-90-M58-AL COOLENS®-OKLAB

Description

Model NO. DTCM35FH-90-M58-AL Image Circle Diameter (Φmm) 43.6(35mm Full)
Magnification(x) 0.484 Working Distance(mm) 208±3
NA 0.0213 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 90
Best Aperture(f/#) 11.4 MTF30 (lp/mm) >75
Depth of Field(mm) ±3.4@F20 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 561±3
Length (mm) 341.3 Weight(kg) 2.4
Measured Depth of Field (mm) 2.2 Filter Screw Size M111x0.75
Field of View (mm × mm)
CMV50000 (36.43x27.62) 75.3x57.1
KAI29050/2 (36.17x24.11) 34.8x23.2 74.7x49.8
KAI43142 (36.18x24.12) 74.8x49.8
Compatible Lighting
Telecentric LED Lighting DTCL-90-xW-y
Beam Diameter 90mm

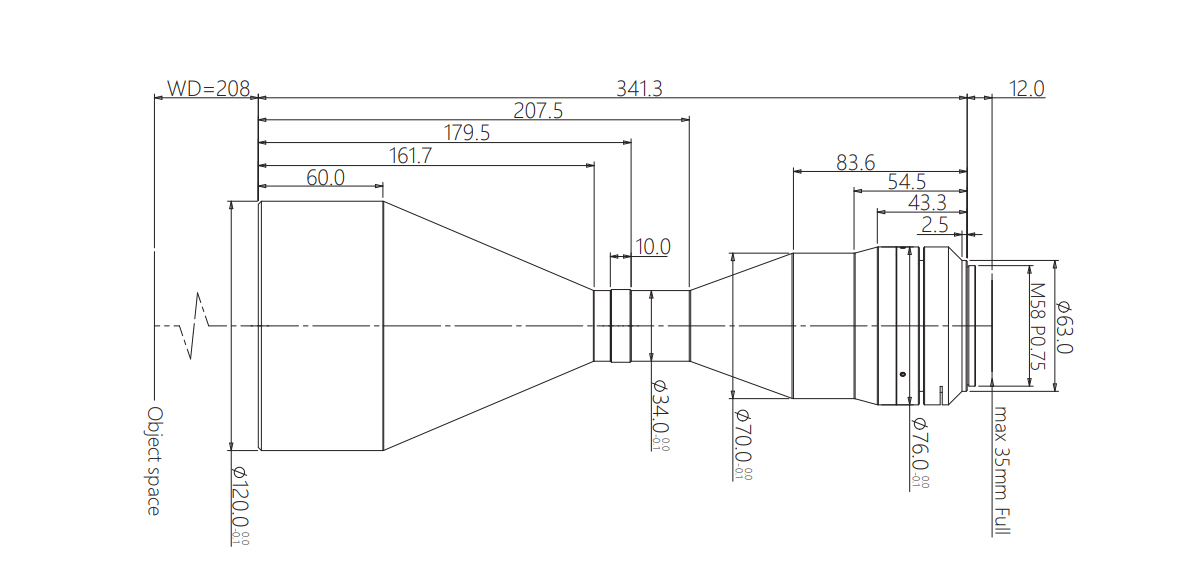

Dimensions

Naming Rule

  • Description

Model NO. DTCM35FH-90-M58-AL Image Circle Diameter (Φmm) 43.6(35mm Full)
Magnification(x) 0.484 Working Distance(mm) 208±3
NA 0.0213 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 90
Best Aperture(f/#) 11.4 MTF30 (lp/mm) >75
Depth of Field(mm) ±3.4@F20 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 561±3
Length (mm) 341.3 Weight(kg) 2.4
Measured Depth of Field (mm) 2.2 Filter Screw Size M111x0.75
Field of View (mm × mm)
CMV50000 (36.43x27.62) 75.3x57.1
KAI29050/2 (36.17x24.11) 34.8x23.2 74.7x49.8
KAI43142 (36.18x24.12) 74.8x49.8
Compatible Lighting
Telecentric LED Lighting DTCL-90-xW-y
Beam Diameter 90mm

Dimensions

Naming Rule
