Model NO. | WWK04-110C-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.4 | Working Distance(mm) | 110±2 | ||||
NA | 0.0285 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 7 | ||||
MTF30 (lp/mm) | >140 | Object Resolution(μm) | 11.8 | ||||
Depth of Field(mm) | ±1.8@F7 | Distortion Typical(% max) | <0.02 | ||||
Telecentricity Typical (°max) | <0.03 | Length (mm) | 140.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.4 | ||||
Filter Screw Size | M40x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/1.8" EV76C570 (7.2x5.4) | 18.0x13.5 | ||||||
1/1.7" IMX226 (7.5x5.6) | 18.8x14.0 | ||||||
2/3" IMX250/264 (8.45x7.1) | 21.1x17.8 |

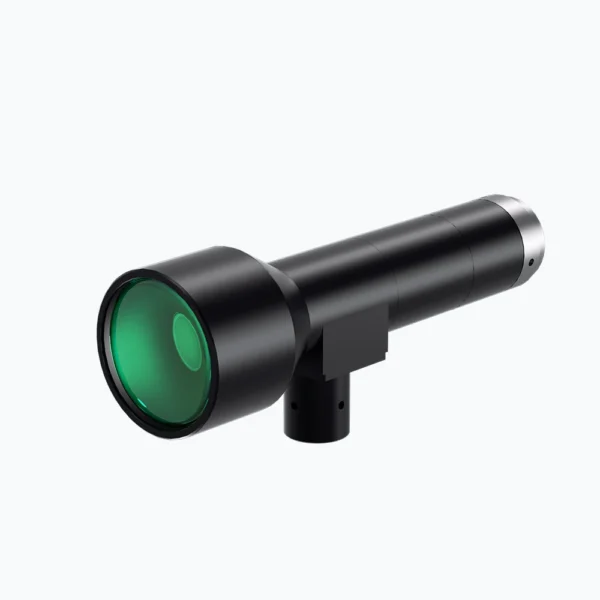

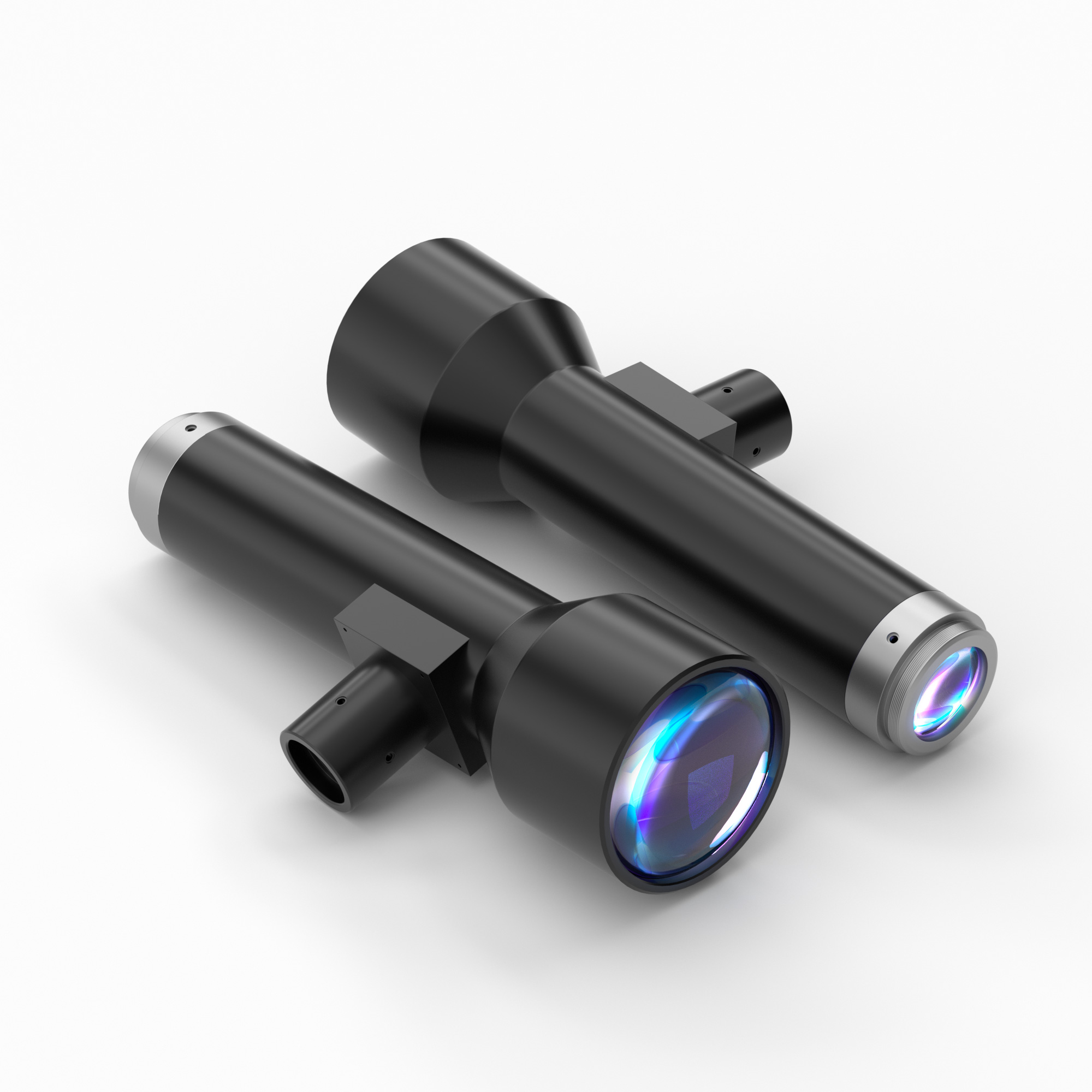

2/3" 0.4X Telecentric Lenses | WWK04-110C-230 COOLENS®
$741.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description

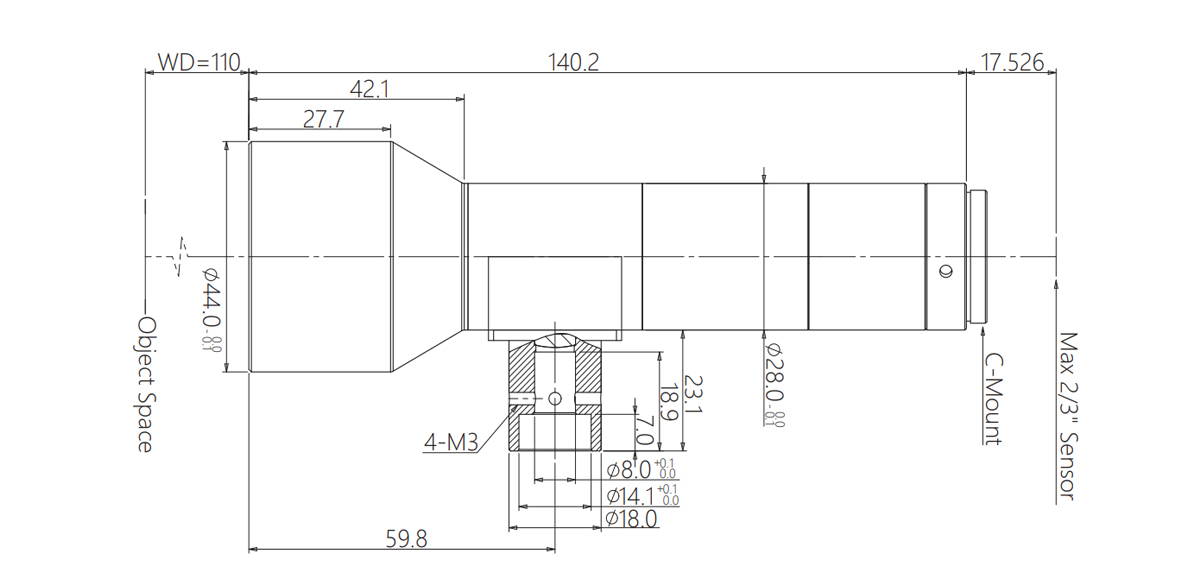

Model NO. | WWK04-110C-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.4 | Working Distance(mm) | 110±2 | ||||
NA | 0.0285 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 7 | ||||
MTF30 (lp/mm) | >140 | Object Resolution(μm) | 11.8 | ||||
Depth of Field(mm) | ±1.8@F7 | Distortion Typical(% max) | <0.02 | ||||
Telecentricity Typical (°max) | <0.03 | Length (mm) | 140.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.4 | ||||
Filter Screw Size | M40x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/1.8" EV76C570 (7.2x5.4) | 18.0x13.5 | ||||||
1/1.7" IMX226 (7.5x5.6) | 18.8x14.0 | ||||||
2/3" IMX250/264 (8.45x7.1) | 21.1x17.8 |
