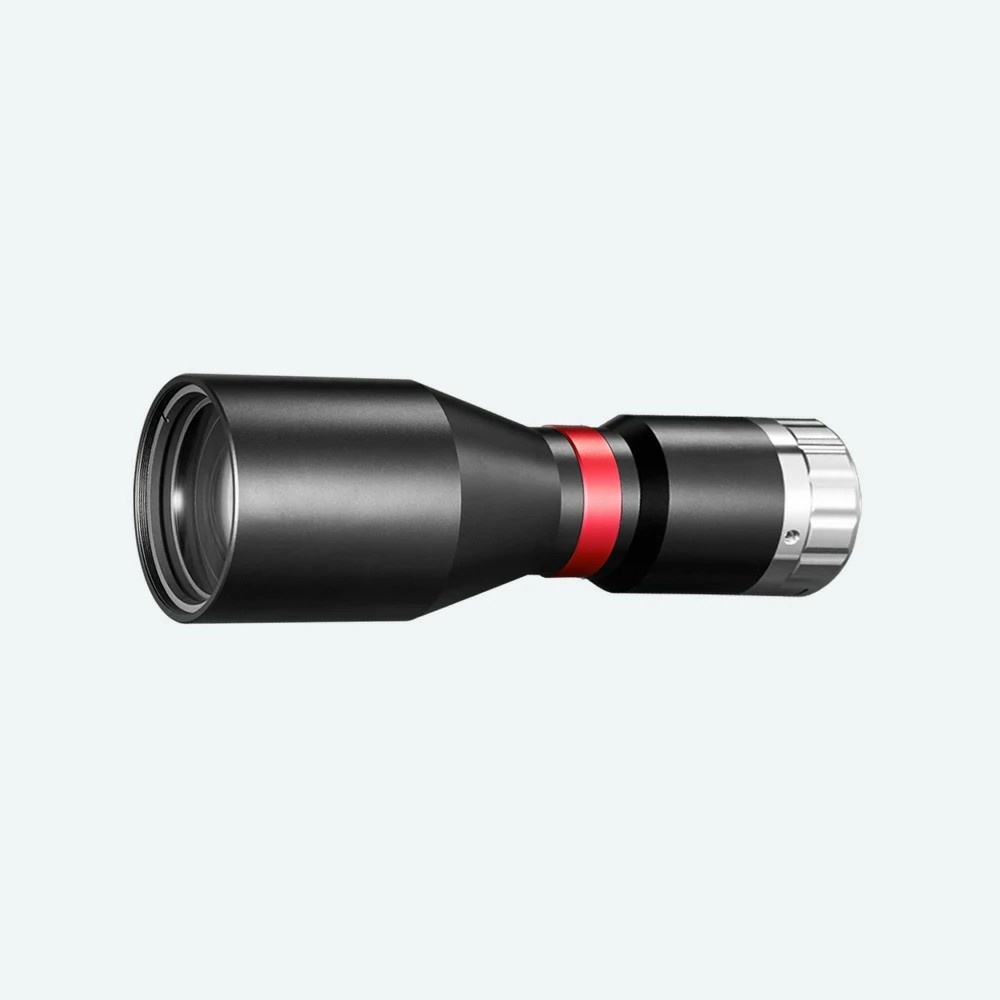

Model NO. |
DTCM111-36-AL |
Image Circle Diameter (Φmm) |
18.4(1.1") |
Magnification(x) |
0.511 |
Working Distance(mm) |
110±2 |
NA |
0.0295 |
Type |
Bi-Telecentric |
Mount |
C |
Object Field of View(Φmm) |
36 |
Best Aperture(f/#) |
8.7 |
MTF30 (lp/mm) |
>85 |
Depth of Field(mm) |
±3.0@F20 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
295±2 |
Length (mm) |
167.7 |
Weight(kg) |
0.6 |
Measured Depth of Field (mm) |
1.2 |
Filter Screw Size |
M50x0.5 |
Field of View (mm × mm)
|
1" IMX183 (13.13x8.76) |
25.7x17.1 |
1.1" IMX253 (14.19x10.38) |
27.8x20.3 |
Compatible Lighting |
Telecentric LED Lighting |
DTCL-36-xW-y |
Beam Diameter 36mm |

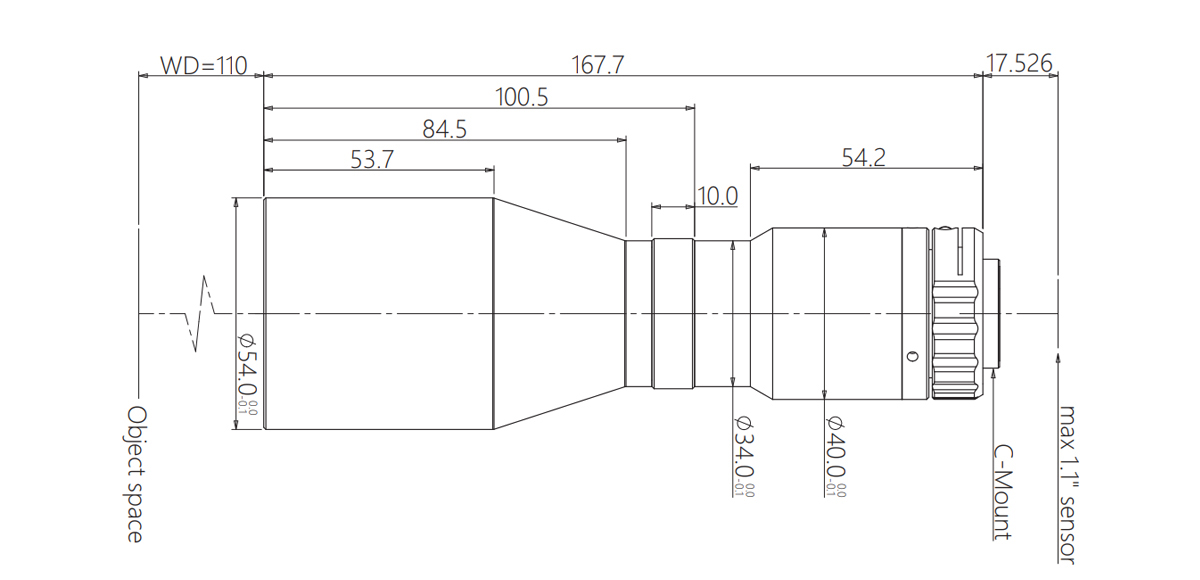

Dimensions
![]()
Naming Rule
![]()
