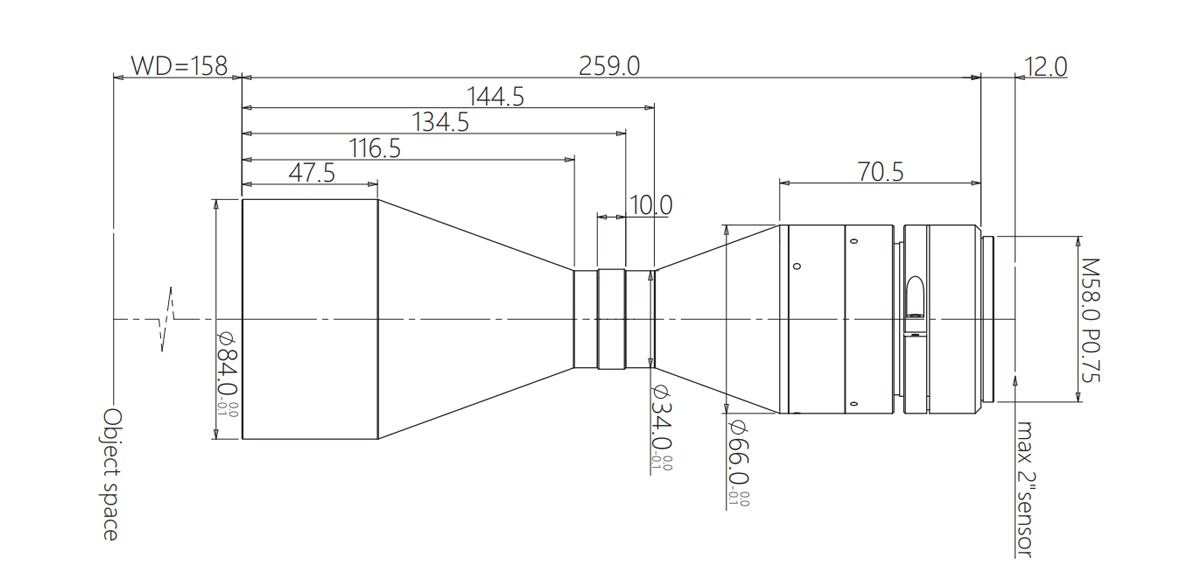

Model NO. | DTCM210-64H-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
Magnification(x) | 0.516 | Working Distance(mm) | 158±3 | ||||
NA | 0.0266 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 9.7 | MTF30 (lp/mm) | >90 | ||||
Depth of Field(mm) | ±3.3@F22 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 429±3 | ||||
Length (mm) | 259 | Weight(kg) | 1.4 | ||||
Measured Depth of Field (mm) | 2 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) |
2" DALSA 12M (24.58x18.43) | 47.6x35.7 | |||||
2" PYTHON 25K (23.04x23.04) | 44.7x44.7 | ||||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64Hmm |
2" 0.516X Bi-Telecentric Lenses | DTCM210-64H-M58-AL COOLENS®
$2,922.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM210-64H-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
Magnification(x) | 0.516 | Working Distance(mm) | 158±3 | ||||
NA | 0.0266 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 9.7 | MTF30 (lp/mm) | >90 | ||||
Depth of Field(mm) | ±3.3@F22 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 429±3 | ||||
Length (mm) | 259 | Weight(kg) | 1.4 | ||||
Measured Depth of Field (mm) | 2 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) |
2" DALSA 12M (24.58x18.43) | 47.6x35.7 | |||||
2" PYTHON 25K (23.04x23.04) | 44.7x44.7 | ||||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64Hmm |
