35mm Full 0.545X Bi-Telecentric Lenses | DTCM35FH-80H-M58-AL COOLENS®-OKLAB
35mm Full 0.545X Bi-Telecentric Lenses | DTCM35FH-80H-M58-AL COOLENS®-OKLAB

35mm Full 0.545X Bi-Telecentric Lenses | DTCM35FH-80H-M58-AL COOLENS®

DTCM35FH-80H-M58-AL
Image Circle:43.6(35mm Full)mm, Magnification:0.545X, FoV:80mm, WD:228±4mm, NA:0.03717, Mount:M58, Type:Bi-Telecentric Lenses
$3,390.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$3,390.00 USD each
Description

Model NO. DTCM35FH-80H-M58-AL Image Circle Diameter (Φmm) 43.6(35mm Full)
Magnification(x) 0.545 Working Distance(mm) 228±4
NA 0.0372 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 80
Best Aperture(f/#) 7.3 MTF30 (lp/mm) >115
Depth of Field(mm) ±2.2@F16 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 546±4
Length (mm) 306.3 Weight(kg) 2.7
Measured Depth of Field (mm) 1.8 Filter Screw Size M103x0.75
Field of View (mm × mm)
CMV50000 (36.43x27.62) 66.8x50.7
KAI29050/2 (36.17x24.11) 34.8x23.2 66.4x44.2
KAI43142 (36.18x24.12) 66.4x44.3
Compatible Lighting
Telecentric LED Lighting DTCL-80H-xW-y
Beam Diameter 80Hmm

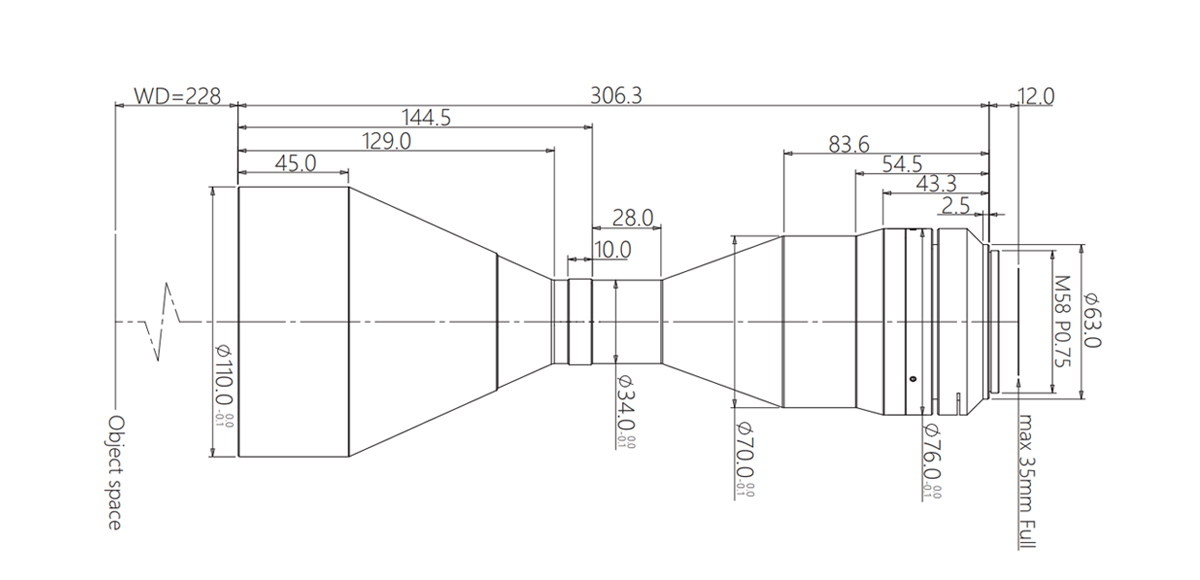

Dimensions

Naming Rule
