Model NO. | WWK055-220-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.550 | Working Distance(mm) | 220±2 | ||||
NA | 0.0340 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >110 | Object Resolution(μm) | 9.9 | ||||
Depth of Field(mm) | ±1.1@F8 | Distortion Typical(% max) | <0.1 | ||||

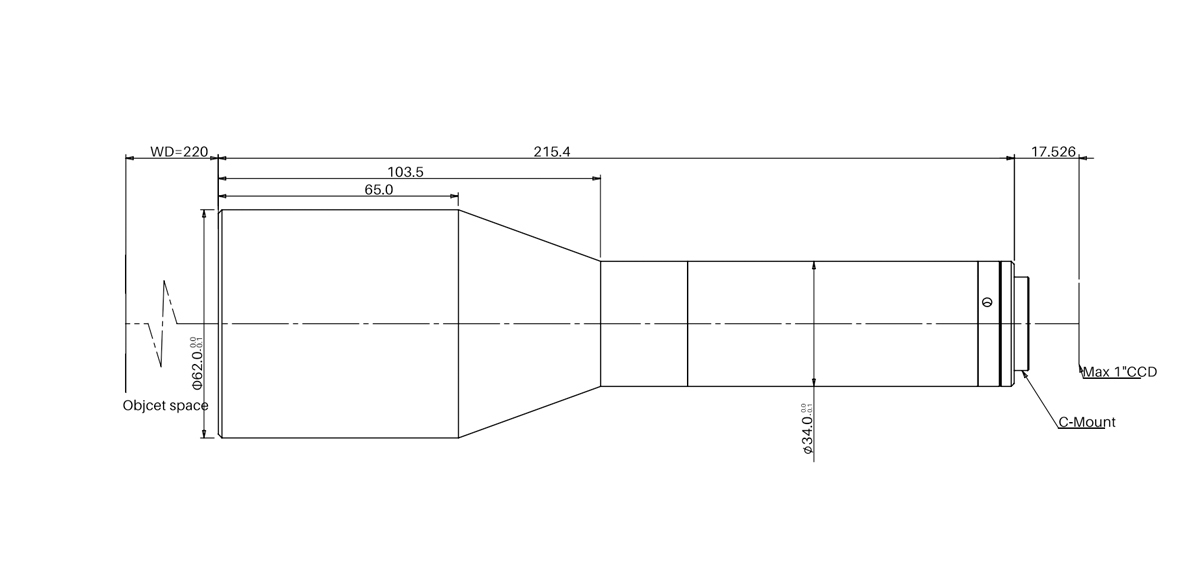

Telecentricity Typical (°max) | <0.1 | Length (mm) | 215.4 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1 | ||||
Filter Screw Size | M50x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 23.9x15.9 | ||||||
1.1" IMX253 (14.19x10.38) | 25.8x18.9 |

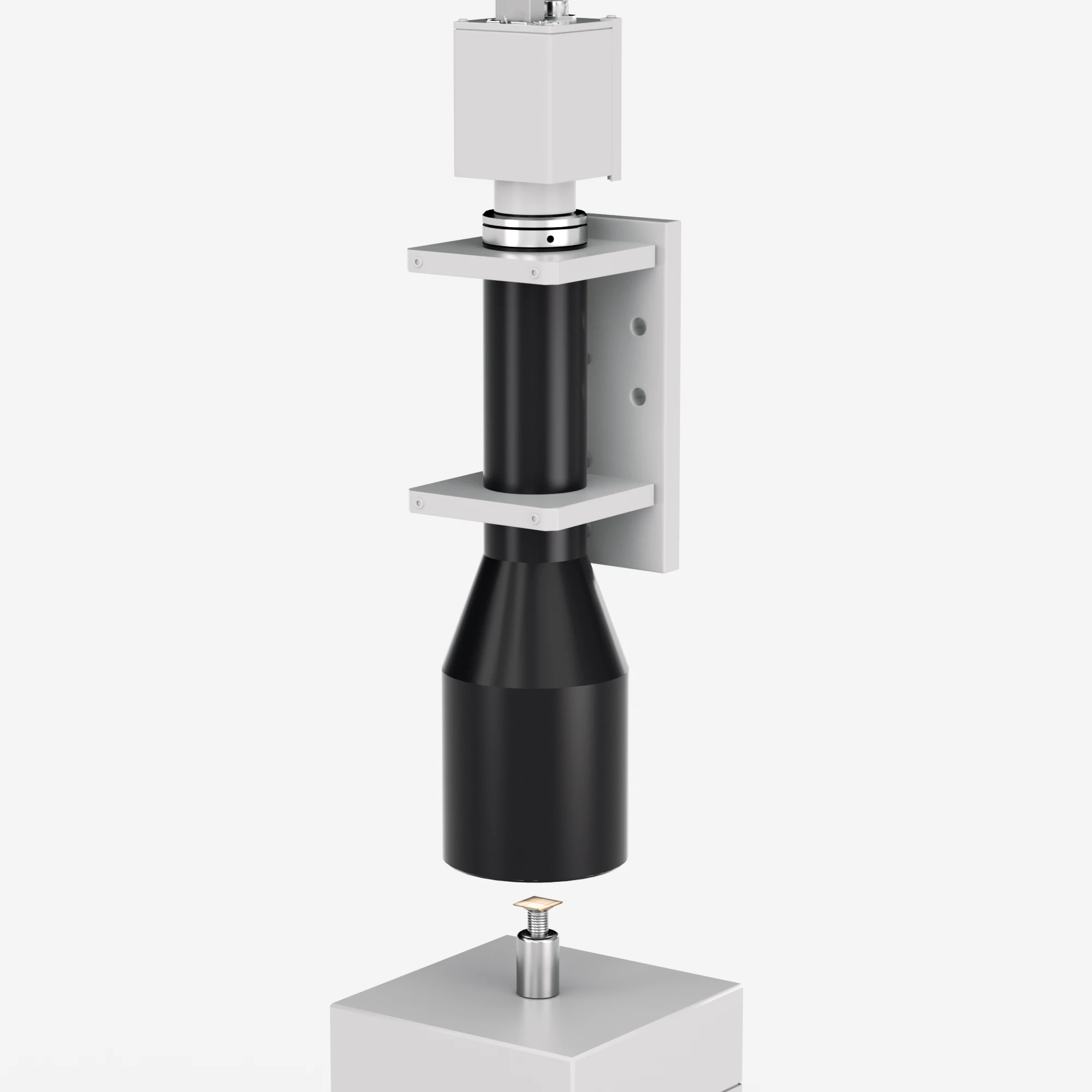

1" 0.55X Telecentric Lenses | WWK055-220-110 COOLENS®
$1,029.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK055-220-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.550 | Working Distance(mm) | 220±2 | ||||
NA | 0.0340 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >110 | Object Resolution(μm) | 9.9 | ||||
Depth of Field(mm) | ±1.1@F8 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length (mm) | 215.4 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1 | ||||
Filter Screw Size | M50x0.5 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 23.9x15.9 | ||||||
1.1" IMX253 (14.19x10.38) | 25.8x18.9 |
