| Model NO. |
WWK055-220C-111 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
0.550 |
Working Distance(mm) |
220±2 |
| NA |
0.0271 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
10.1 |
| MTF30 (lp/mm) |
>90 |
Object Resolution(μm) |
12.4 |
| Depth of Field(mm) |
±1.3@F10.1 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
215.6 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
1.2 |
| Filter Screw Size |
M50x0.5 |
| Field of View (mm x mm) |
|
| 1" IMX183 (13.13x8.76) |
23.9x15.9 |
| 1.1" IMX253 (14.19x10.38) |
25.8x18.9 |

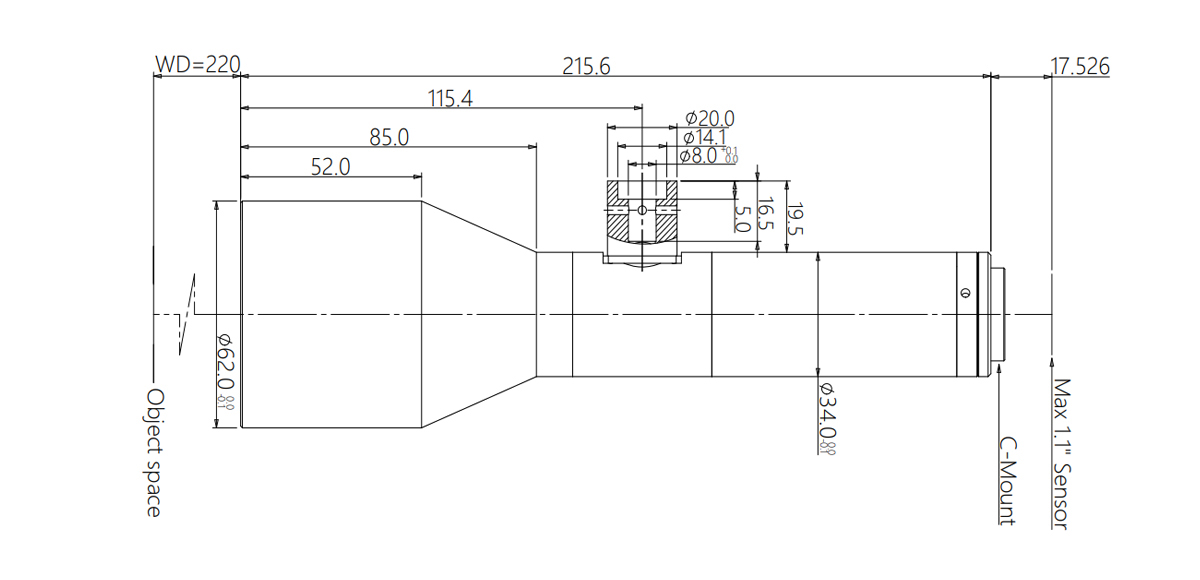

Dimensions
Naming Rule
