Model NO. | DTCA175-51-G-M58-AL | Image Circle Diameter (Φmm) | 28.2(1.75") | ||||
Magnification(x) | 0.55 | Working Distance(mm) | 220 | ||||
NA | 0.0344 | Type | Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 51.2 | ||||
Best Aperture(f/#) | 8 | MTF30 (lp/mm) | 106 | ||||
Object Resolution(μm) | 9.8 | Depth of Field(mm) | 2.1 | ||||
Distortion Typical(% max) | 0.005 | Telecentricity Typical (°max) | 0.09 | ||||
Length of I/O(mm) | 425 | Length (mm) | 192.7 | ||||
Weight(kg) | 1.1 | Iris Adjustable | Yes | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.2 | ||||
Filter Screw Size | M72x0.75 | ||||||
Field of View (mm × mm) |
22.53x16.90 with CMV12000 | 40.96x30.73 | |||||
18.43x18.43 with PYTHON16k | 33.51x33.51 | ||||||
28.8mm with LineScan-2k/4k/8k | 52.36 |

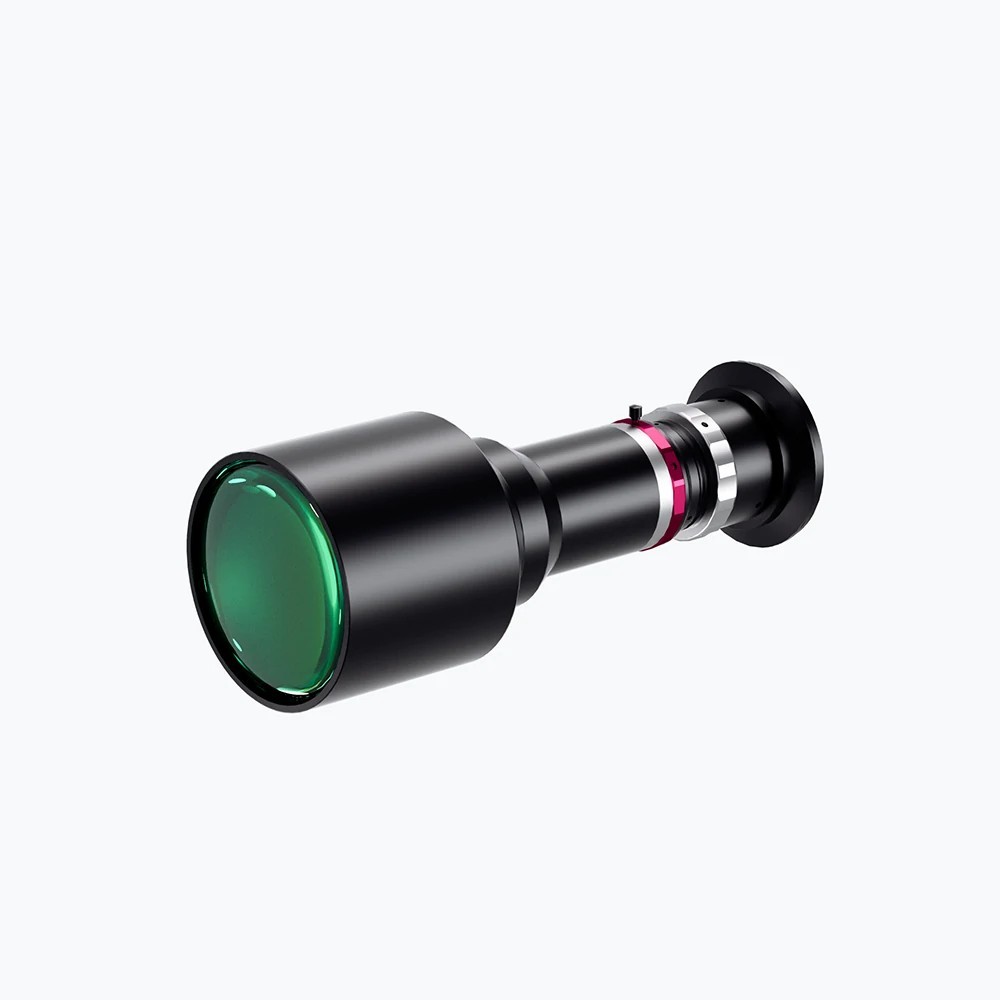

1.75“ 0.55X Telecentric Lenses | DTCA175-51-G-M58-AL COOLENS®
DTCA175-51-G-M58-AL
$2,435.00 USD
Shipping calculated at checkout.
Quantity


Description
Important Note
Important Shipping & Customs Information
Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.
Customs & Duties
-
Import duties vary by destination country and are determined by your local customs office
-
You will be contacted directly by customs or the delivery carrier to arrange payment
-
Oklab cannot pre-collect customs fees as rates differ across international destinations
Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.
Questions?
For shipping inquiries, please contact us at sales@oklab.com
By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
-
Description
-
Important Note
Model NO. | DTCA175-51-G-M58-AL | Image Circle Diameter (Φmm) | 28.2(1.75") | ||||
Magnification(x) | 0.55 | Working Distance(mm) | 220 | ||||
NA | 0.0344 | Type | Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 51.2 | ||||
Best Aperture(f/#) | 8 | MTF30 (lp/mm) | 106 | ||||
Object Resolution(μm) | 9.8 | Depth of Field(mm) | 2.1 | ||||
Distortion Typical(% max) | 0.005 | Telecentricity Typical (°max) | 0.09 | ||||
Length of I/O(mm) | 425 | Length (mm) | 192.7 | ||||
Weight(kg) | 1.1 | Iris Adjustable | Yes | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1.2 | ||||
Filter Screw Size | M72x0.75 | ||||||
Field of View (mm × mm) |
22.53x16.90 with CMV12000 | 40.96x30.73 | |||||
18.43x18.43 with PYTHON16k | 33.51x33.51 | ||||||
28.8mm with LineScan-2k/4k/8k | 52.36 |

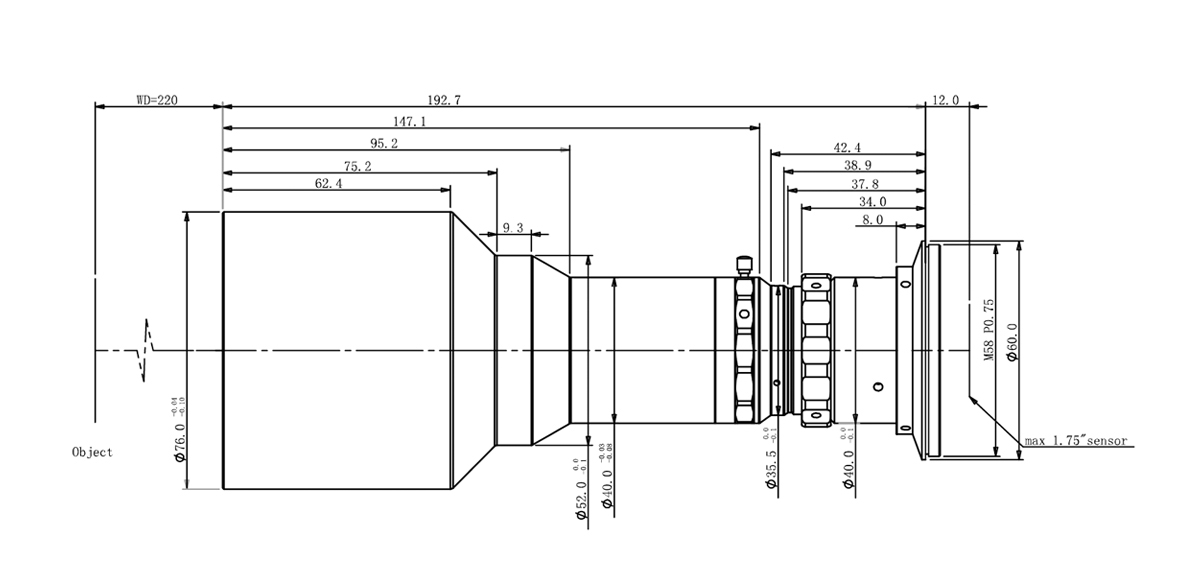

Dimensions
