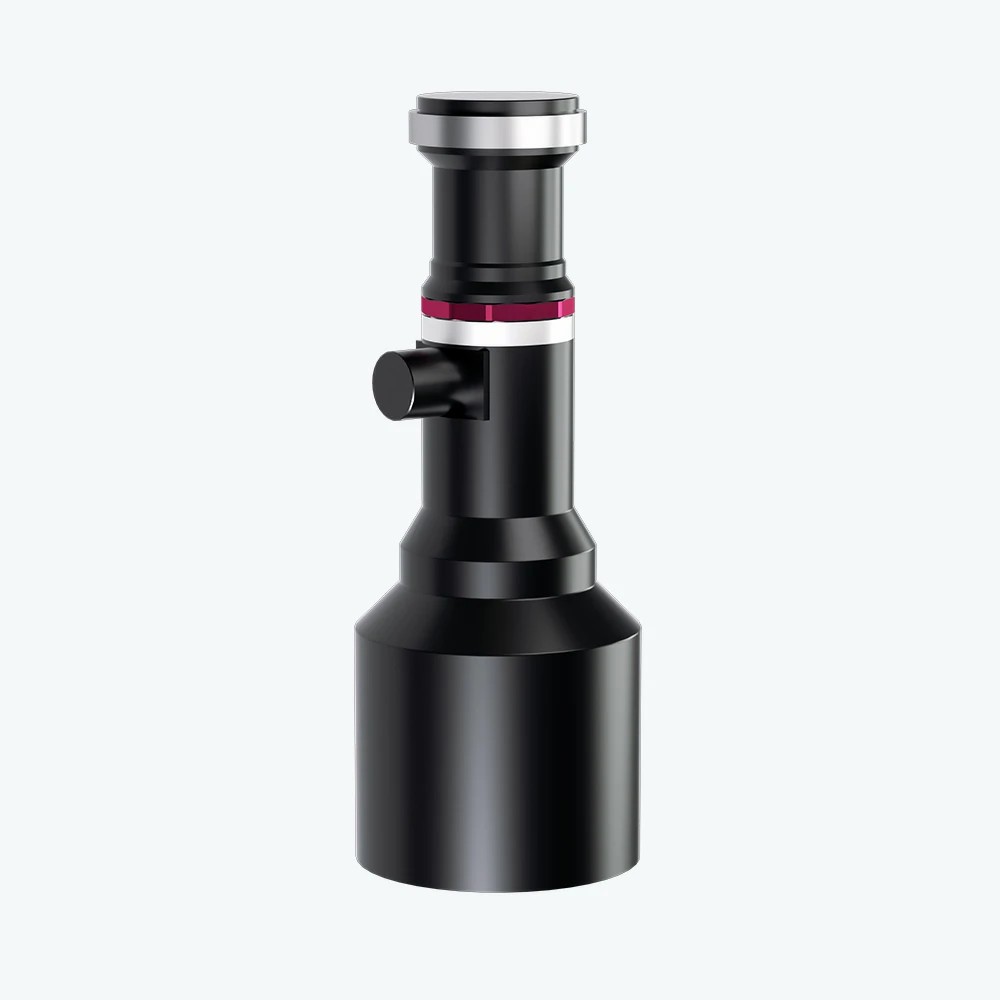

1.75“ 0.55X Telecentric Lenses | DTCA175-51C-G-M58-AL COOLENS®

DTCA175-51C-G-M58-AL
$2,630.00 USD
Shipping calculated at checkout.
Quantity
1.2" 0.55X Telecentric Lenses | DTCA175-51C-G-M58-AL COOLENS®-OKLAB

Description

Model NO. DTCA175-51C-G-M58-AL Image Circle Diameter (Φmm) 28.2(1.75")
Magnification(x) 0.55 Working Distance(mm) 220
NA 0.0344 Type Telecentric
Mount M58 Object Field of View(Φmm) 51.2
Best Aperture(f/#) 8 MTF30 (lp/mm) 106
Object Resolution(μm) 9.8 Depth of Field(mm) 2.1
Distortion Typical(% max) 0.005 Telecentricity Typical (°max) 0.09
Length of I/O(mm) 430 Length (mm) 197.9
Weight(kg) 1.2 Iris Adjustable Yes
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.2
Filter Screw Size M72x0.75
Field of View (mm × mm)
 22.53x16.90 with CMV12000 40.96x30.73
18.43x18.43 with PYTHON16k 33.51x33.51
28.8mm with LineScan-2k/4k/8k 52.36

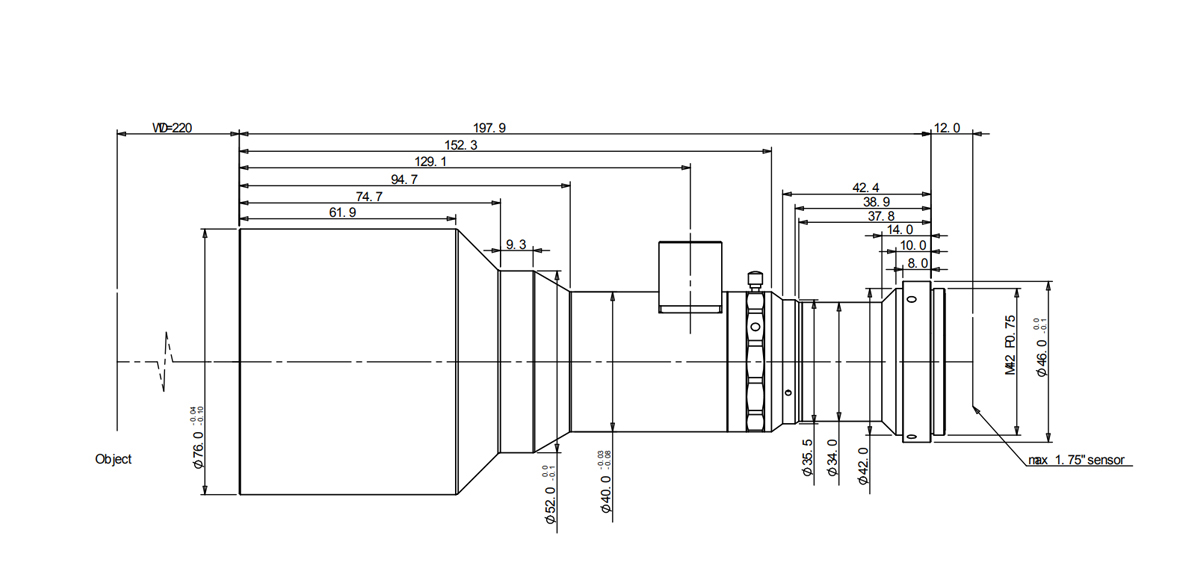

Dimensions

Naming Rule

Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
