Model NO. |
DTCM210-56-M58-AL |
Image Circle Diameter (Φmm) |
33(2") |
Magnification(x) |
0.589 |
Working Distance(mm) |
138±3 |
NA |
0.0266 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
56 |
Best Aperture(f/#) |
11.1 |
MTF30 (lp/mm) |
>75 |
Depth of Field(mm) |
±2.3@F20 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
397±3 |
Length (mm) |
246.5 |
Weight(kg) |
1.3 |
Measured Depth of Field (mm) |
1.4 |
Filter Screw Size |
M70x0.5 |
Field of View (mm × mm)
|
2" DALSA 12M (24.58x18.43) |
41.7x31.3 |
2" PYTHON 25K (23.04x23.04) |
39.1x39.1 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-56-xW-y |
Beam Diameter 56mm |

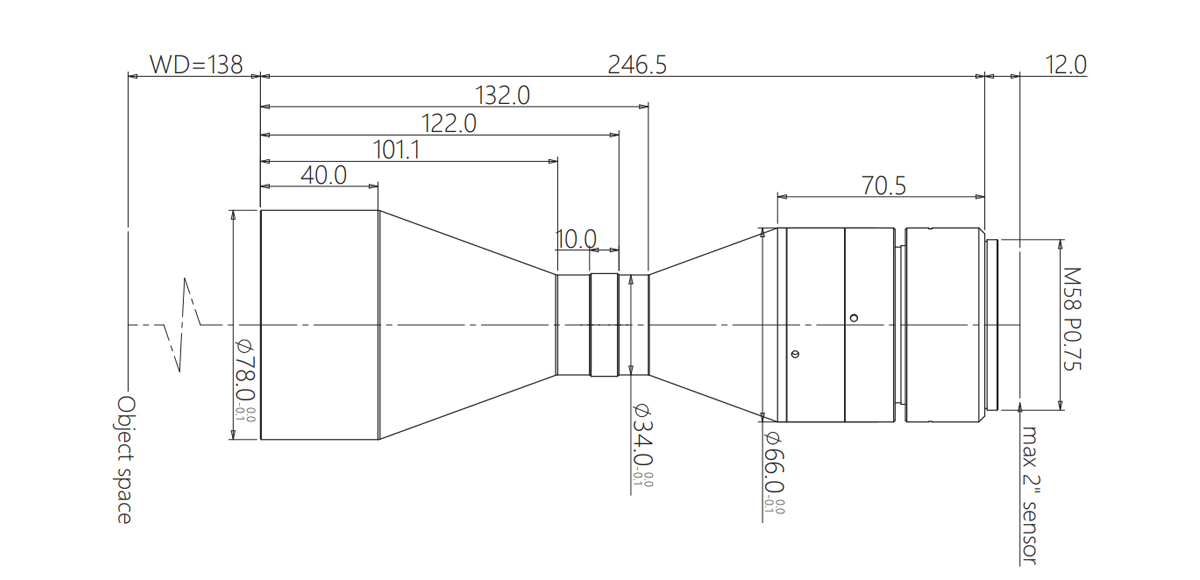

Dimensions
![]()
Naming Rule
![]()
