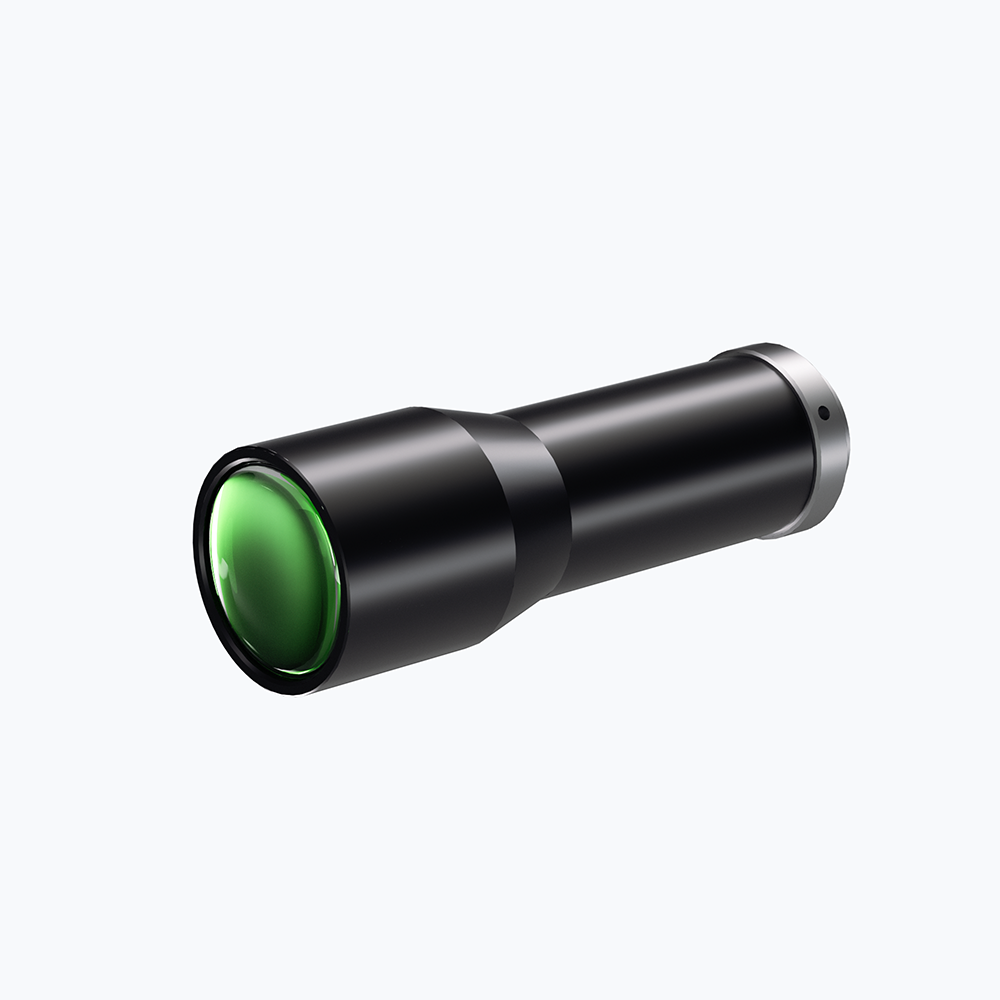

2/3" 0.5X Bi-Telecentric Lenses | DTCA230-22L COOLENS®

DTCA230-22L
$705.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.5X Bi-Telecentric Lenses | DTCA230-22L COOLENS®-OKLAB

Description

Model NO. DTCA230-22L Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.5 Working Distance(mm) 65
NA 0.0500 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 22
Best Aperture(f/#) 5 MTF30 (lp/mm) >160
Object Resolution(μm) 6.7 Depth of Field(mm) ±0.8@F5.0
Distortion Typical(% max) <0.1 Telecentricity Typical (°max) <0.1
Length of I/O(mm) 189 Length (mm) 106.7
Weight(kg) 0.2 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M34x0.5
Field of View (mm × mm)
 1/1.8" EV76C570 (7.2x5.4) 14.4x10.8
1/1.7" IMX226 (7.5x5.6) 15.0x11.2
2/3" IMX250/264 (8.45x7.1) 16.9x14.2

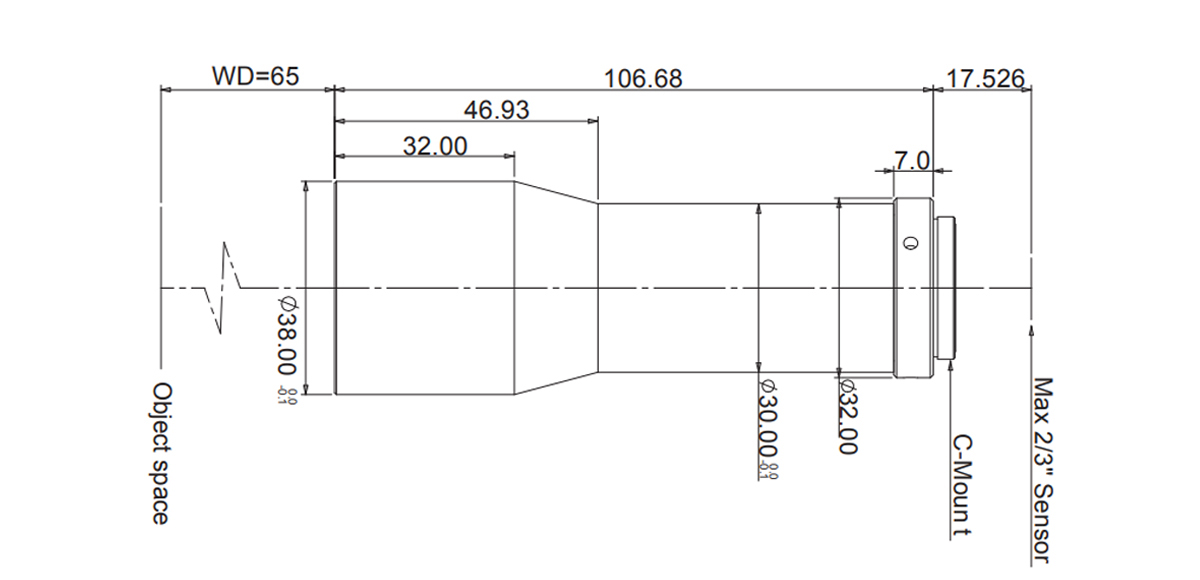

Dimensions
