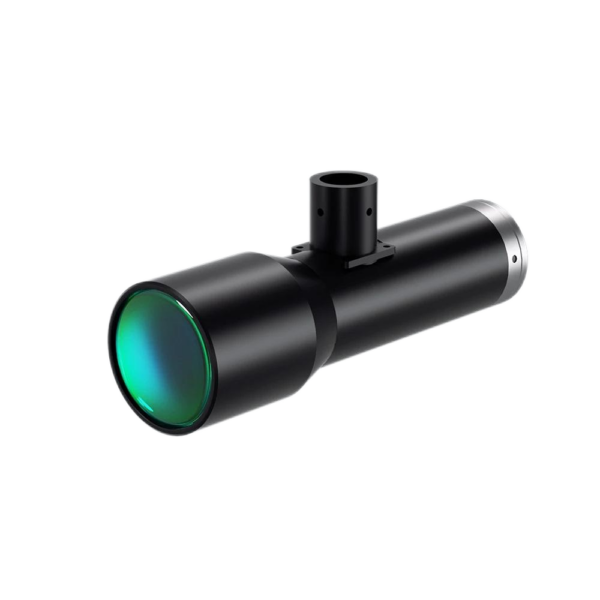

Description

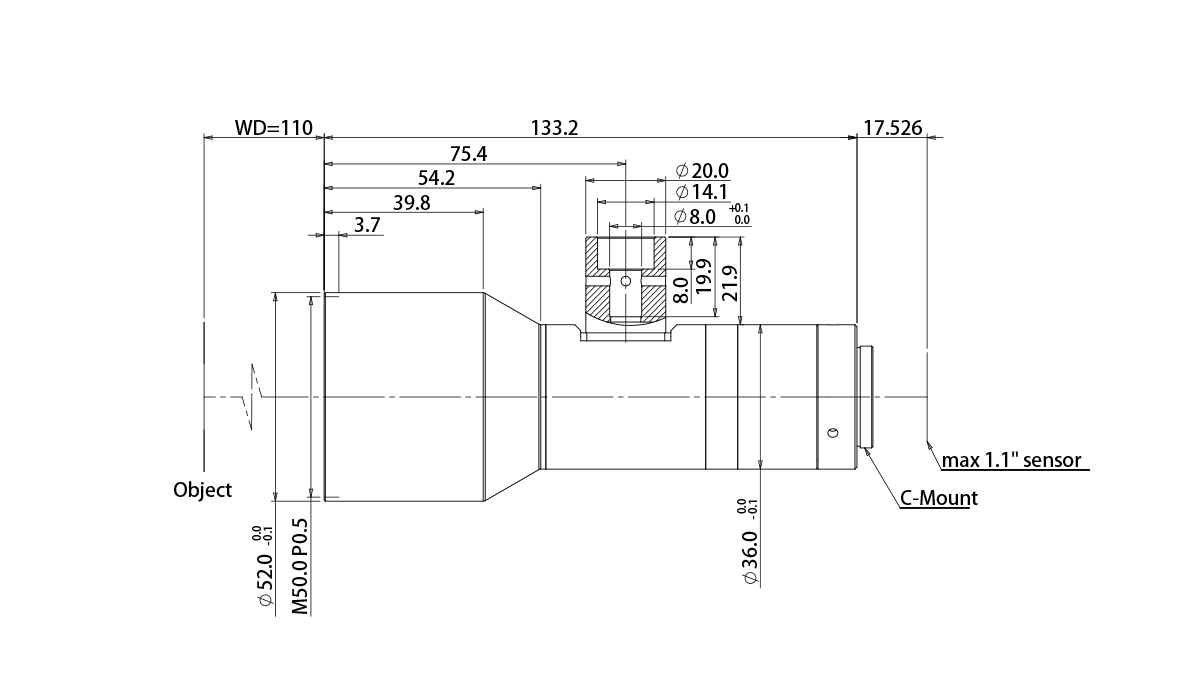

| Model NO. | WWK05-110C-111V3 | Magnification(x) | 0.5 | ||||
| Working Distance(mm) | 110±2 | Max Sensor Size(φmm) | 11.0 (2/3") | ||||
| Best Aperture(F/#) | 7 | Telecentricity Typical(max)(deg) | <0.08 | ||||
| Distortion Typical(max)(%) | <0.1 | Depth of Field | ±1.1@F8 | ||||
| Length of I/O (mm) | 260.7 | Mount | C | ||||
| Length (mm) | 133.2 | MTF30 (lp/mm) | >124 | ||||
| Coaxial Illumination Port Option | YES | Iris Adjustable | No | ||||
| Field of View (mm x mm) | |||||||
| 1" IMX183 (13.13x8.76) | 26.3X17.5 | ||||||
| 1.1" IMX253 (14.19x10.38) | 28.4x20.8 | ||||||
