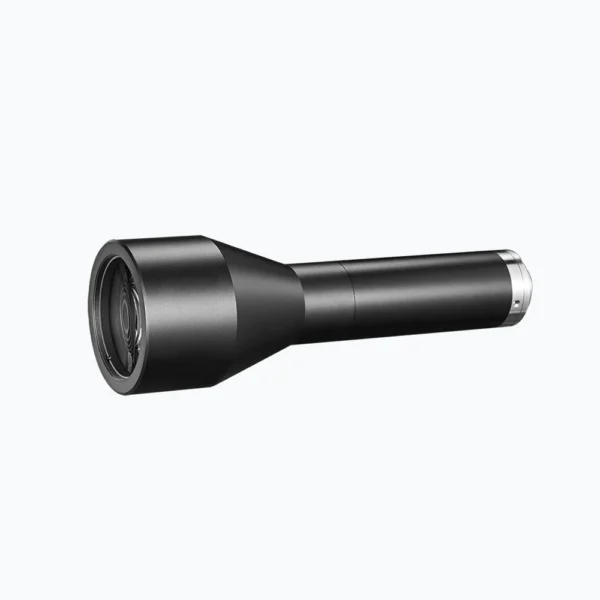

0.5X 2/3″ Telecentric Lenses | WWK 110 111 COOLENS®
0.5X 2/3″ Telecentric Lenses | WWK 110 111 COOLENS®
WWK05-110-111V3
Model No: WWK05-110-111V3 •Telecentric Lenses with Coaxial Illumination Port Optional •Up to 5 MegaPixels, 3.45μm Pixel Size Sensors •Up to 2/3″, WD110, C-Mount Telecentric Lenses •Magnification(x) 0.5
$0.00 USD
$0.00 USD
Quantity
Only 0 left
Sold Out
Add to cart
Buy now
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Click to Download the Specification
Model NO.
WWK05-110-111V3
Magnification(x)
0.5
Working Distance(mm)
110±2
Max Sensor Size(φmm)
11.0(2/3")
Best Aperture(F/#)
7
Telecentricity Typical(max)(deg)
<0.08
Distortion Typical(max)(%)
<0.1
Depth of Field
±1.1@F7
Length of I/O (mm)
260.7
Mount
C
Length (mm)
133.2
MTF30 (lp/mm)
>140
Coaxial Illumination Port Option
NO
Iris Adjustable
No
Field of View (mm x mm)
1“ IMX183 (13.13x8.76)
26.3X17.5
1.1" IMX253 (14.19x10.38)
28.4x20.8

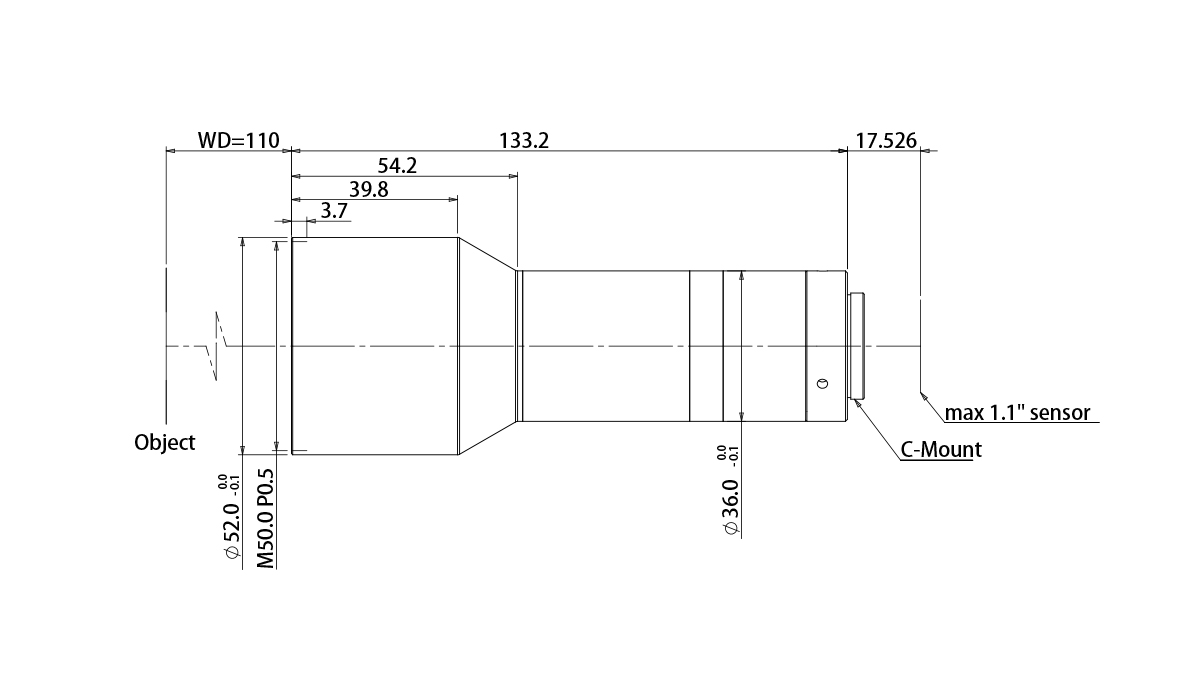

Dimensions
