Model No.	Image Circle Diameter (Φmm)	Magnification(x)	Working Distance(mm)	NA	Type	Mount	Price
DTCM71M-36-M58-AL	39(71M)	1.083	110±2	0.0295	Bi-Telecentric	M58	$2,144.00
DTCM71M-42-M58-AL	39(71M)	0.929	118±3	0.0304	Bi-Telecentric	M58	$2,298.00
DTCM71M-48-M58-AL	39(71M)	0.813	128±3	0.0266	Bi-Telecentric	M58	$2,649.00
DTCM71M-56-M58-AL	39(71M)	0.696	138±3	0.0266	Bi-Telecentric	M58	$2,727.00

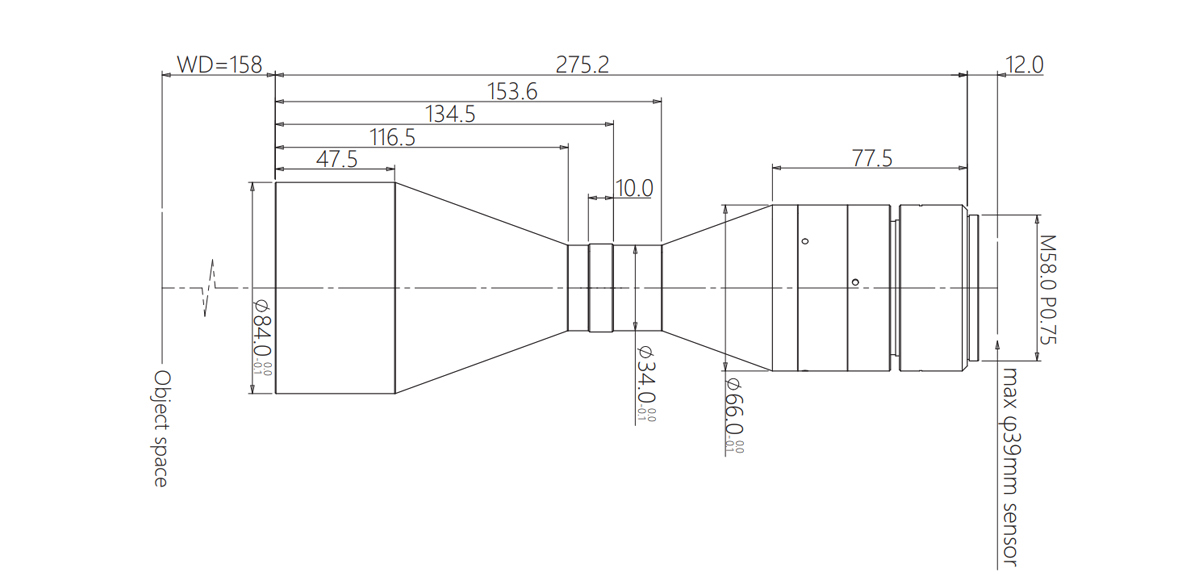

DTCM71M-64H-M58-AL	39(71M)	0.609	158±3	0.0266	Bi-Telecentric	M58	$3,000.00
DTCM71M-72-M58-AL	39(71M)	0.542	178±3	0.0236	Bi-Telecentric	M58	$3,156.00
DTCM71M-80H-M58-AL	39(71M)	0.488	228±4	0.0372	Bi-Telecentric	M58	$3,293.00
DTCM71M-90-M58-AL	39(71M)	0.433	208±3	0.0213	Bi-Telecentric	M58	$3,507.00
DTCM71M-100H-M58-AL	39(71M)	0.390	238±4	0.0128	Bi-Telecentric	M58	$3,798.00s
DTCM71M-110-M58-AL	39(71M)	0.355	263±4	0.0213	Bi-Telecentric	M58	$3,993.00
DTCM71M-120H-M58-AL	39(71M)	0.325	273±5	0.0213	Bi-Telecentric	M58	$4,188.00
DTCM71M-136-M58-AL	39(71M)	0.287	288±5	0.0203	Bi-Telecentric	M58	$4,676.00
DTCM71M-150-M58-AL	39(71M)	0.260	300±5	0.0099	Bi-Telecentric	M58	$3,857.00
DTCM71M-170-M58-AL	39(71M)	0.229	318±5	0.0176	Bi-Telecentric	M58	$7,208.00
DTCM71M-190H-M58-AL	39(71M)	0.205	330±5	0.0158	Bi-Telecentric	M58	$9,059.00
DTCM71M-216-M58-AL	39(71M)	0.181	372±5	0.0139	Bi-Telecentric	M58	$12,078.00
DTCM71M-240H-M58-AL	39(71M)	0.163	410±6	0.0125	Bi-Telecentric	M58	$15,234.00
DTCM71M-258-M58-AL	39(71M)	0.151	338±5	0.0116	Bi-Telecentric	M58	$15,683.00
DTCM71M-300-M58-AL	39(71M)	0.130	465±6	0.0100	Bi-Telecentric	M58	$21,818.00
DTCA35F-11-G-M58-AL	44(35mm Full)	4.000	60	0.18-0.0624	Bi-Telecentric	M58	$--
DTCA35F-11C-G-M58-ALV3	44(35mm Full)	4.000	60	0.18-0.0624	Bi-Telecentric	M58	$--
DTCA35F-94-M58-AL	39(71M)	0.462	378	0.0289	Telecentric	M58	$3,702.00
DTCA35F-94C-M58-AL	39(71M)	0.462	378	0.0289	Telecentric	M42	$4,091.00
DTCA35F-82-M58-AL	39(71M)	0.530	338	0.0265	Telecentric	M42	$3,702.00
DTCA35F-82C-M58-AL	39(71M)	0.530	338	0.0265	Telecentric	M42	$4,091.00

71M 0.609X Bi-Telecentric Lenses | DTCM71M-64H-M58-AL COOLENS®
