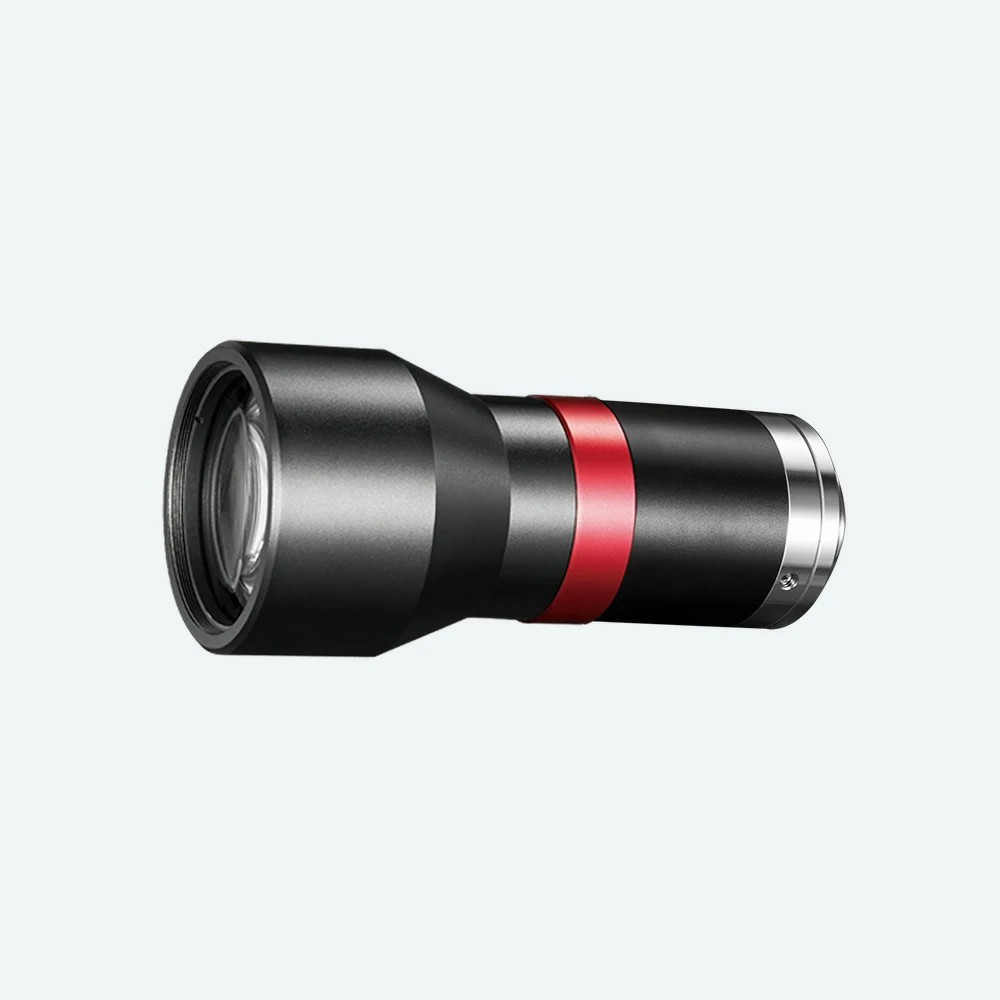

1" 0.638X Bi-Telecentric Lenses | DTCM110-26 COOLENS®

DTCM110-26

Image Circle:16.6(1")mm, Magnification:0.638X, FoV:26mm, WD:73±1mm, NA:0.03676, Mount:C, Type:Bi-Telecentric Lenses

$935.00 USD

Quantity

Description

Model NO.		DTCM110-26		Image Circle Diameter (Φmm)		16.6(1")
Magnification(x)		0.638		Working Distance(mm)		73±1
NA		0.0368		Type		Bi-Telecentric
Mount		C		Object Field of View(Φmm)		26
Best Aperture(f/#)		8.7		MTF30 (lp/mm)		>90
Depth of Field(mm)		±1.6@F16		Distortion Typical(% max)		<0.1
Telecentricity Typical (°max)		<0.1		Length of I/O(mm)		227±1
Length (mm)		136.3		Weight(kg)		0.4
Measured Depth of Field (mm)		1.4		Filter Screw Size		M40x0.5
Field of View (mm × mm)		1" PYTHON 5000(12.43x9.83)			19.5x15.4
		1" IMX255(14.19x7.51)			22.2x11.8
		1" IMX183(13.13x8.76)			20.6x13.7
Compatible Lighting		Telecentric LED Lighting			DTCL-26-xW-y
					Beam Diameter 26mm

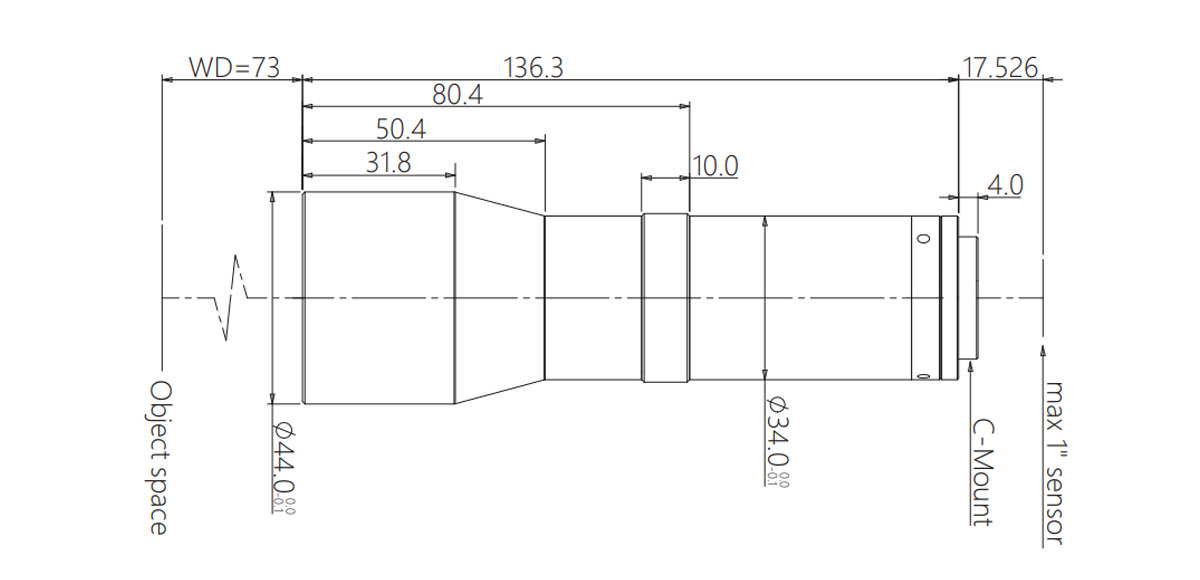

Dimensions

Naming Rule
