Model NO. | DTCM430H-36-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.656 | Working Distance(mm) | 110±2 | ||||
NA | 0.0295 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 36 | ||||
Best Aperture(f/#) | 11.1 | MTF30 (lp/mm) | >77 | ||||
Depth of Field(mm) | ±1.9@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 311±2 | ||||

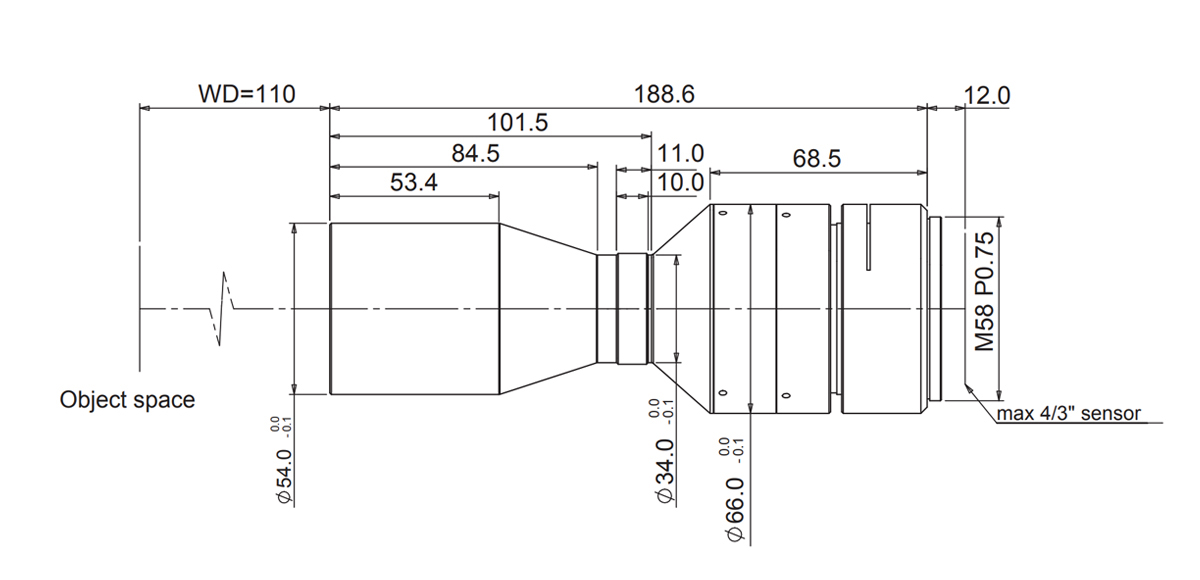

Length (mm) | 188.6 | Weight(kg) | 0.9 | ||||
Measured Depth of Field (mm) | 1 | Filter Screw Size | M50x0.5 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 27.2x21.8 | |||||
4/3" PYTHON 12K (18.43x13.82) | 28.1x21.1 | ||||||
4/3" CMV8000 (18.48x13.73) | 28.2x20.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-48-xW-y | |||||
Beam Diameter 48 mm |

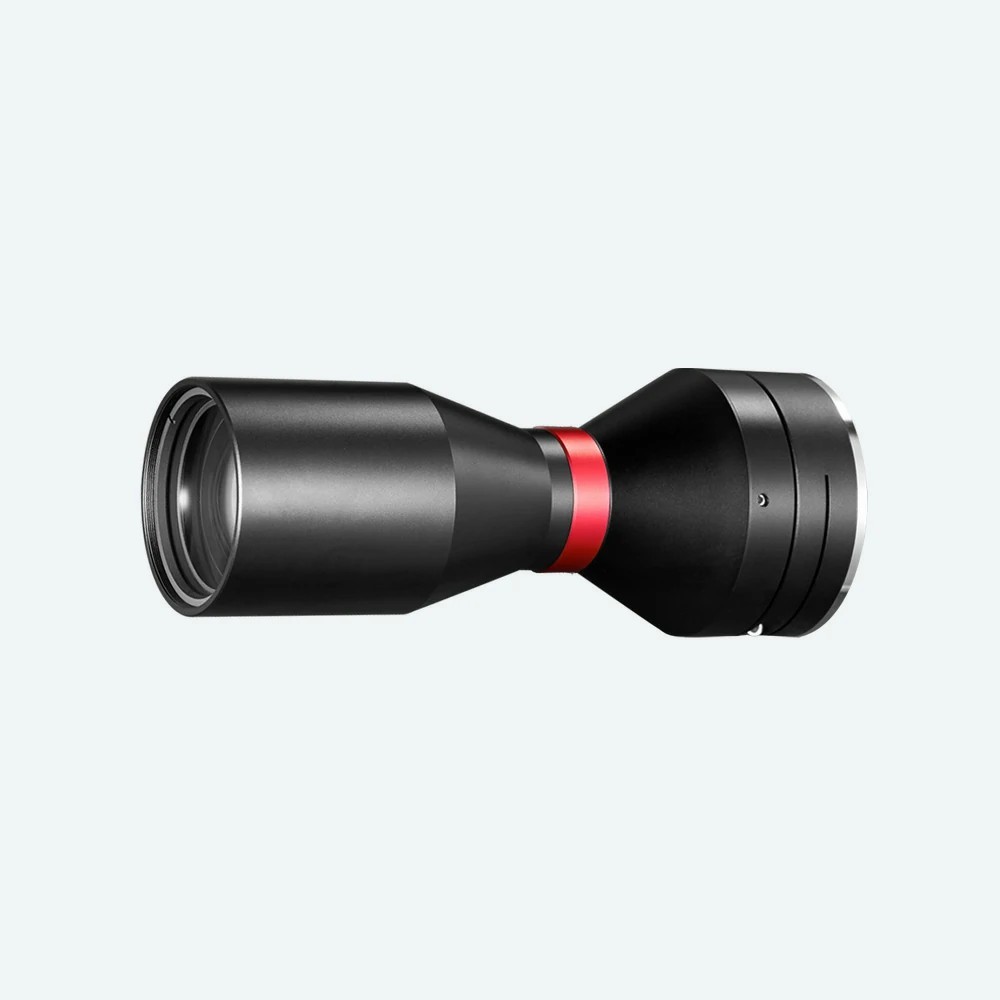

4/3" 0.656X Bi-Telecentric Lenses | DTCM430H-36-M58-AL COOLENS®
$1,851.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM430H-36-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.656 | Working Distance(mm) | 110±2 | ||||
NA | 0.0295 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 36 | ||||
Best Aperture(f/#) | 11.1 | MTF30 (lp/mm) | >77 | ||||
Depth of Field(mm) | ±1.9@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 311±2 | ||||
Length (mm) | 188.6 | Weight(kg) | 0.9 | ||||
Measured Depth of Field (mm) | 1 | Filter Screw Size | M50x0.5 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 27.2x21.8 | |||||
4/3" PYTHON 12K (18.43x13.82) | 28.1x21.1 | ||||||
4/3" CMV8000 (18.48x13.73) | 28.2x20.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-48-xW-y | |||||
Beam Diameter 48 mm |
