Model NO. | DTCA16K-88-AL | Image Circle Diameter (Φmm) | 62(16K) | ||||
Magnification(x) | 0.705 | Working Distance(mm) | 125 | ||||
NA | 0.0503 | Type | Bi-Telecentric | ||||
Mount | M72 | Object Field of View(Φmm) | 88 | ||||
Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >165 | ||||
Object Resolution(μm) | 6.7 | Depth of Field(mm) | ±0.6@F7.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.3 | ||||

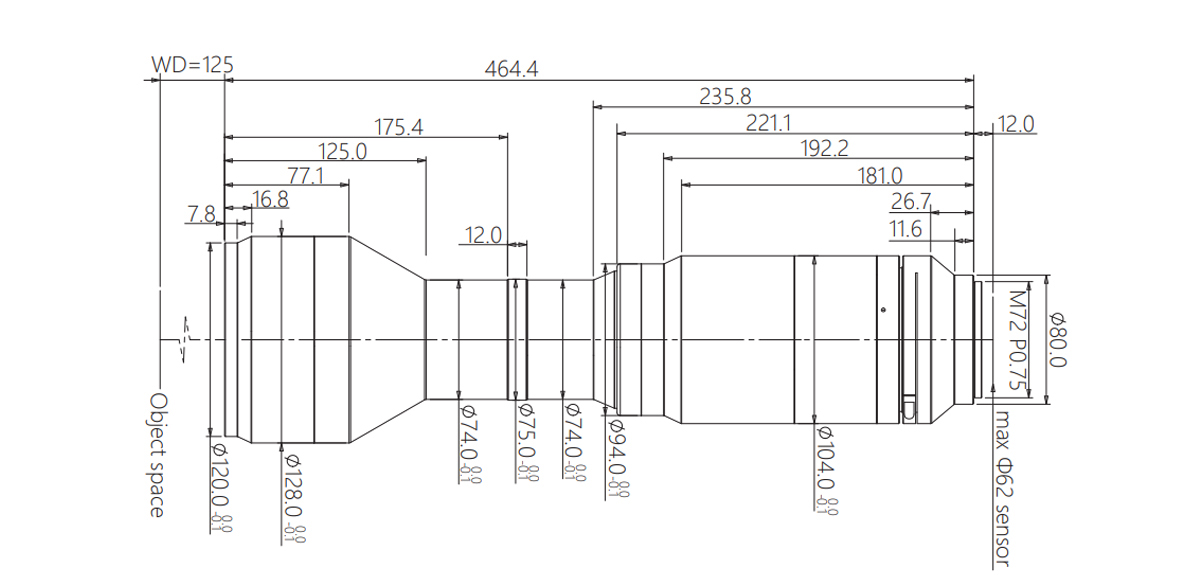

Length of I/O(mm) | 601 | Length (mm) | 464.4 | ||||
Weight(kg) | 5.2 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M112x0.75 | ||||||
Field of View (mm × mm) |
KAI-47051(48.7x29.0) | 69.1x41.1 | |||||
Linescan-12K 5um(61.44mm) | 87.1 mm | ||||||
Linescan-16K 3.5/3.53um(57.4mm) | 81.4 mm |

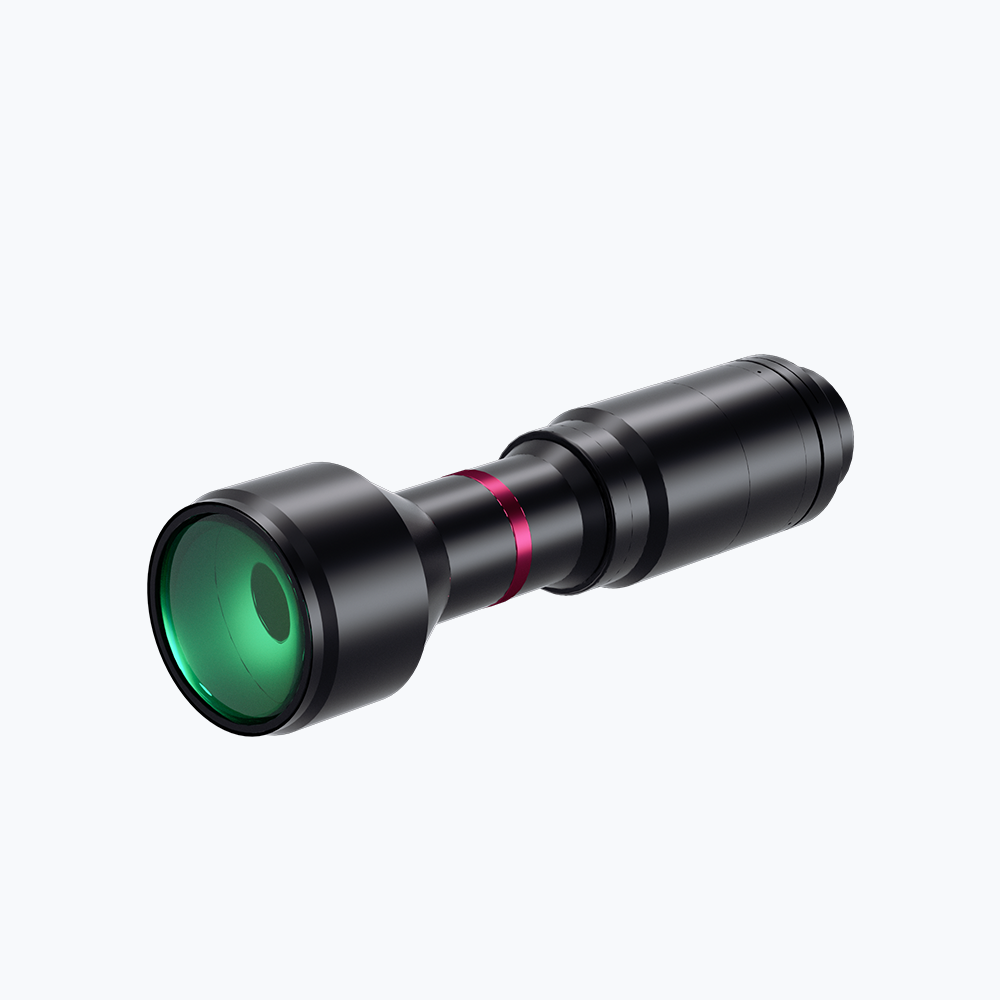

16K 0.705X Bi-Telecentric Lenses | DTCA16K-88-AL COOLENS®
$3,810.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCA16K-88-AL | Image Circle Diameter (Φmm) | 62(16K) | ||||
Magnification(x) | 0.705 | Working Distance(mm) | 125 | ||||
NA | 0.0503 | Type | Bi-Telecentric | ||||
Mount | M72 | Object Field of View(Φmm) | 88 | ||||
Best Aperture(f/#) | 7 | MTF30 (lp/mm) | >165 | ||||
Object Resolution(μm) | 6.7 | Depth of Field(mm) | ±0.6@F7.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.3 | ||||
Length of I/O(mm) | 601 | Length (mm) | 464.4 | ||||
Weight(kg) | 5.2 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M112x0.75 | ||||||
Field of View (mm × mm) |
KAI-47051(48.7x29.0) | 69.1x41.1 | |||||
Linescan-12K 5um(61.44mm) | 87.1 mm | ||||||
Linescan-16K 3.5/3.53um(57.4mm) | 81.4 mm |
