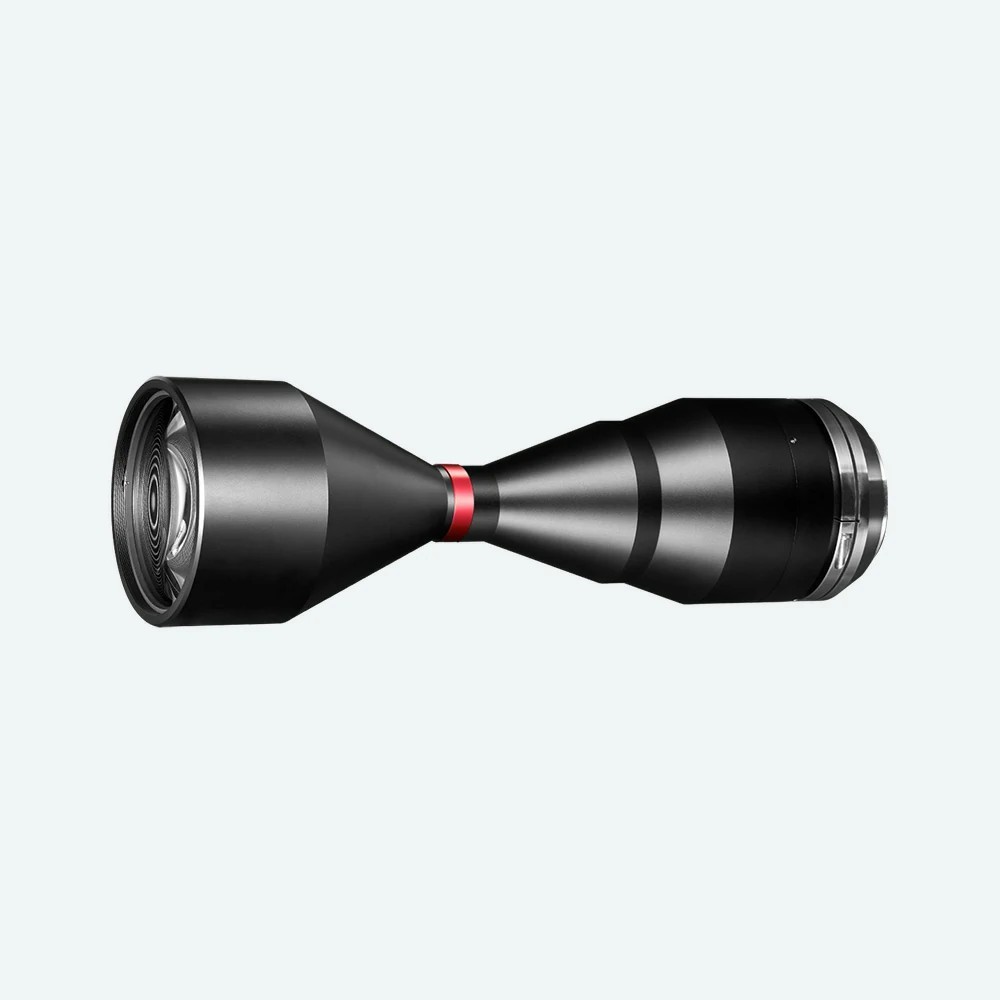

Model NO. | DTCM16K-80H-AL | Image Circle Diameter (Φmm) | 59(16K) | ||||
Magnification(x) | 0.738 | Working Distance(mm) | 228±4 | ||||
NA | 0.0266 | Type | Bi-Telecentric | ||||
Mount | M72 | Object Field of View(Φmm) | 80 | ||||
Best Aperture(f/#) | 9.9 | MTF30 (lp/mm) | >85 | ||||
Depth of Field(mm) | ±1.6@F22 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 580±4 | ||||
Length (mm) | 340 | Weight(kg) | 3.4 | ||||
Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M103x0.75 | ||||
Field of View (mm × mm) |
48.7×29.0 with KAI-47051 | 66.0x39.3 | |||||
57.4mm with 16K×3.5/3.53um | 77.8mm | ||||||
57.4mm with 8K×7um/7.04um | 77.8mm | ||||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-80-xW-y | |||||
Beam Diameter 80mm |

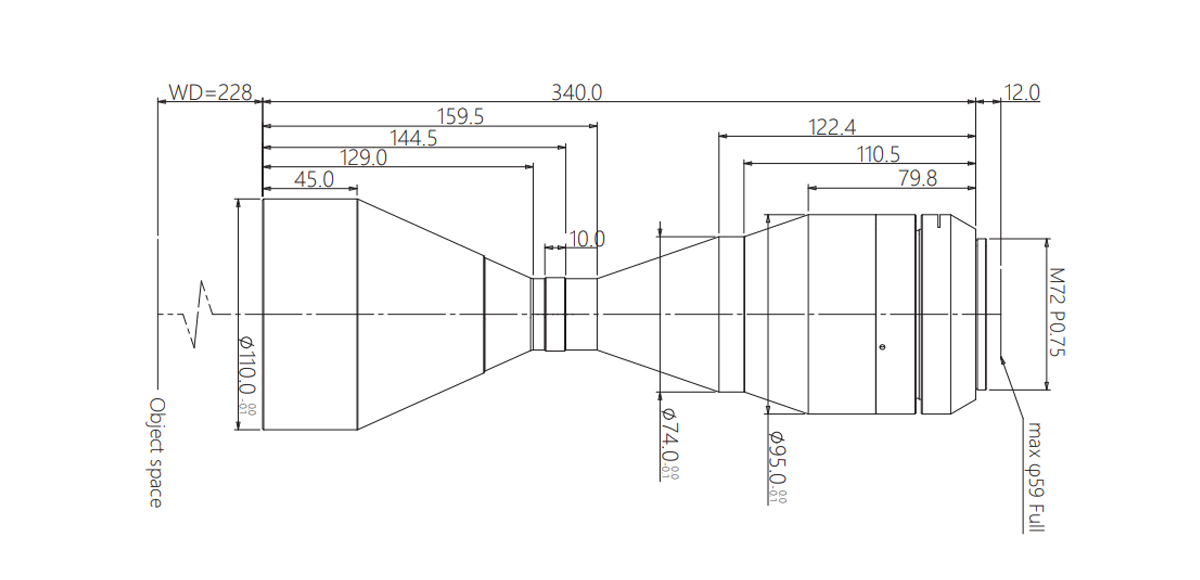

Dimensions
Naming Rule
