Description

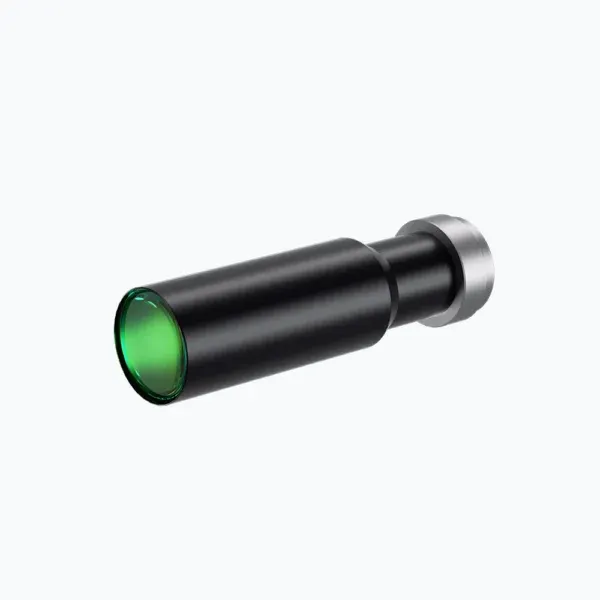

| Model NO. | WWH075-63ATV3 | Magnification(x) | 0.75 | ||||
| Working Distance(mm) | 63±1 | Max Sensor Size(φmm) | 11.0(2/3") | ||||
| Aperture(F/#) | 6 | Telecentricity Typical(max)(deg) | 0.22 | ||||
| Distortion Typical(max)(%) | 0.05 | NA | 0.06 | ||||
| Resolution(μm) | 5.4 | Depth of Field | 0.9 | ||||

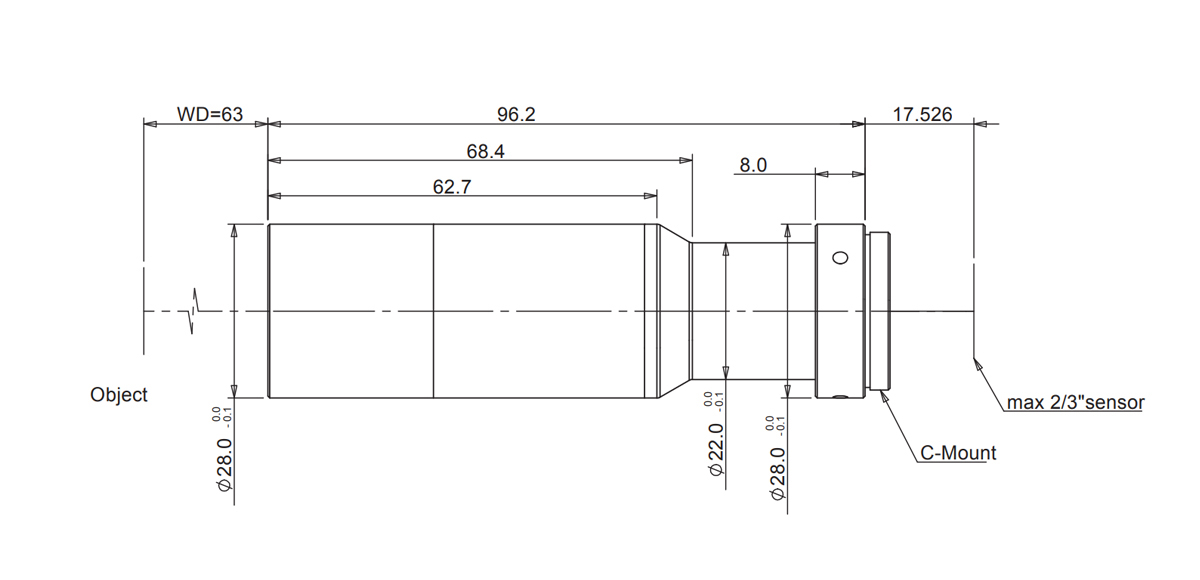

| Mount | C | Length (mm) | 96.2 | ||||
| Coaxial Illumination Port Option | No | Iris Adjustable | No | ||||
| Field of View (mm x mm) | |||||||
| 1/2”（6.4x4.8） | 8.5×6.4 | ||||||
| 1/1.8”（7.13x5.37） | 9.5×7.2 | ||||||
| 2/3”（8.45x7.1） | 11.3×9.5 | ||||||
