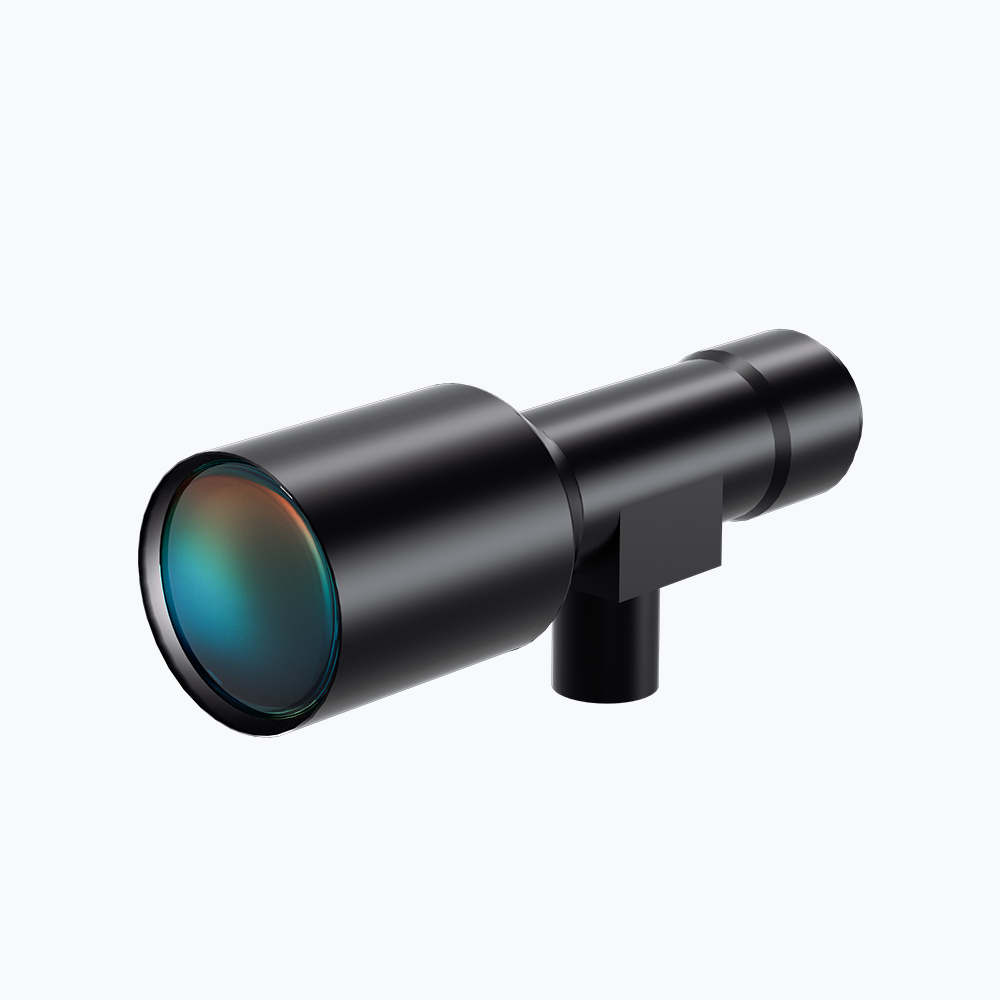

1" 0.7X Telecentric Lenses | WWK07-108C-110 COOLENS®

WWK07-108C-110

Image Circle:16(1")mm, Magnification:0.7X, WD:108±2mm, NA:0.04944, Mount:C, Type:Telecentric Lenses

$876.00 USD

Quantity

Description

Model NO.		WWK07-108C-110		Image Circle Diameter (Φmm)		16(1")
Magnification(x)		0.700		Working Distance(mm)		108±2
NA		0.0494		Type		Telecentric
Mount		C		Best Aperture(f/#)		7
MTF30 (lp/mm)		>135		Object Resolution(μm)		6.8
Depth of Field(mm)		±0.6@F7		Distortion Typical(% max)		<0.02
Telecentricity Typical (°max)		<0.02		Length (mm)		133.4
With Coaxial Illumination Port		Yes		Measured Depth of Field (mm)		0.4
Filter Screw Size		M42x0.5
Field of View (mm x mm)

1/1.8" EV76C570 (7.2x5.4)				17.8x14.0
1/1.7" IMX226 (7.5x5.6)				20.3x10.8
2/3" IMX250/264 (8.45x7.1)				18.8x12.5

Dimensions

Naming Rule
