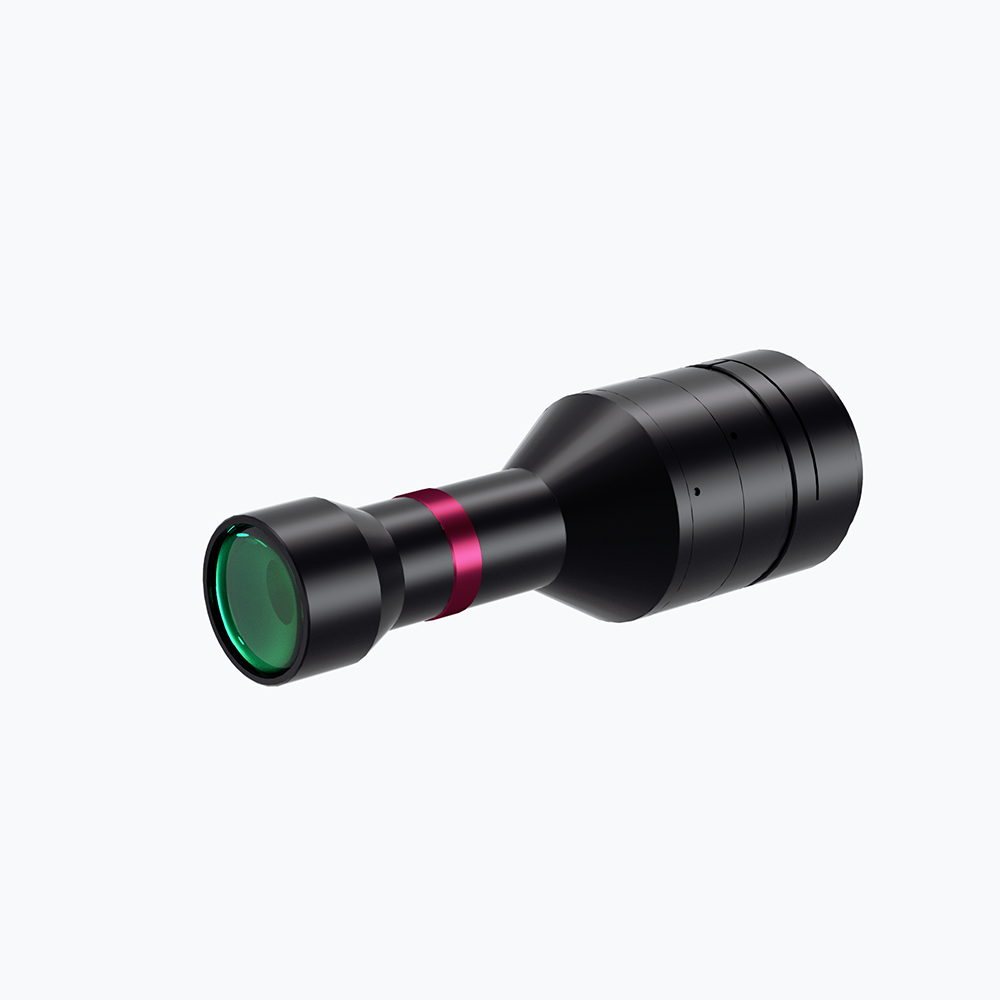

Model NO. | DTCA210-44.8-M58-AL | Image Circle Diameter (Φmm) | 33(2") | ||||
Magnification(x) | 0.737 | Working Distance(mm) | 90 | ||||
NA | 0.0469 | Type | Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 44.8 | ||||
Best Aperture(f/#) | 7.8 | MTF30 (lp/mm) | 90 | ||||
Object Resolution(μm) | 7.2 | Depth of Field(mm) | 1.1 | ||||
Distortion Typical(% max) | 0.1 | Telecentricity Typical (°max) | / | ||||
Length of I/O(mm) | 298 | Length (mm) | 194.2 | ||||
Weight(kg) | 0.8 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.8 | ||||
Filter Screw Size | / | ||||||
Field of View (mm × mm) |
2" PYTHON 25K (23.04X23.04) | 31.3x31.3 | |||||

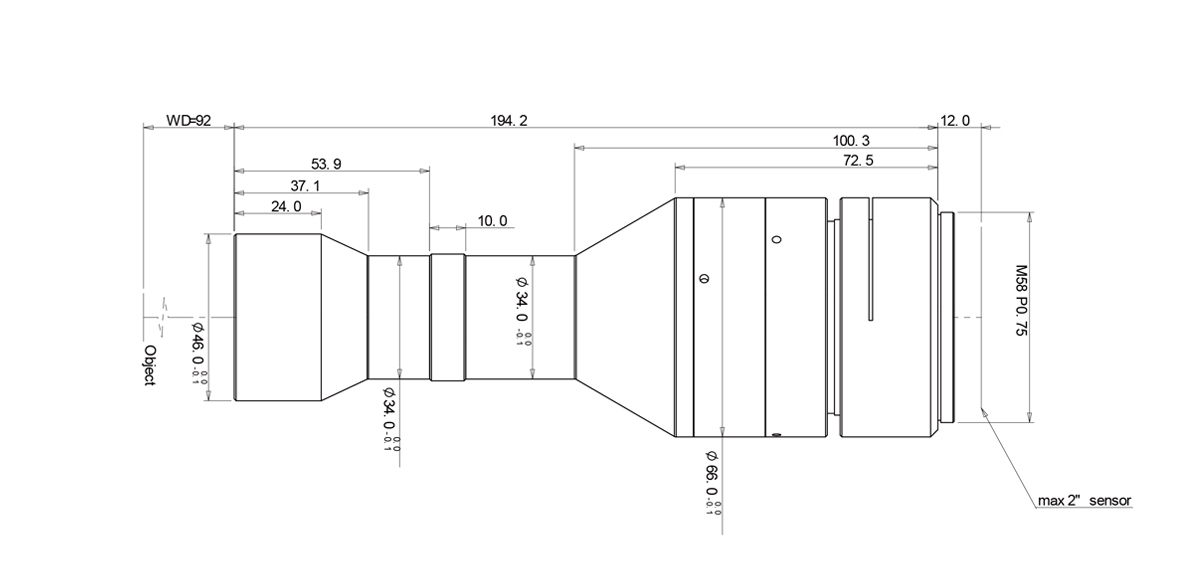

Dimensions

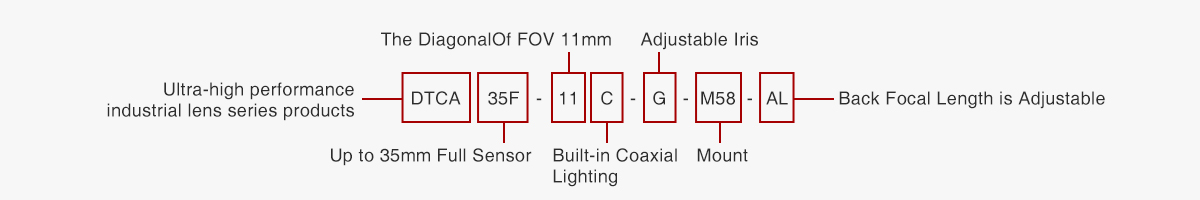

Naming Rule
