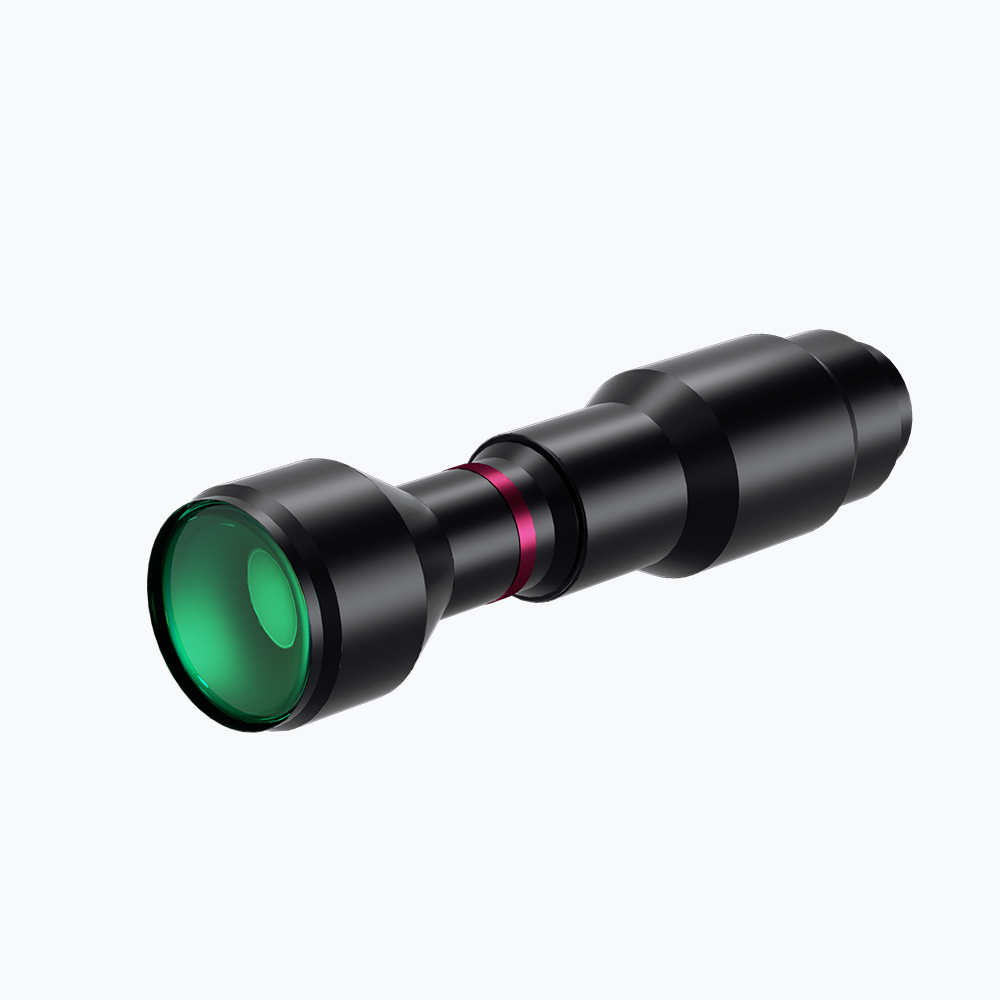

16K 0.853X Bi-Telecentric Lenses | DTCA16K-72.7-AL COOLENS®

DTCA16K-72.7-AL

Image Circle:62(16K)mm, Magnification:0.853X, FoV:72.7mm, WD:125mm, NA:0.07112, Mount:M72, Type:Bi-Telecentric Lenses

$3,507.00 USD

Quantity

Description

Model NO.		DTCA16K-72.7-AL		Image Circle Diameter (Φmm)		62(16K)
Magnification(x)		0.853		Working Distance(mm)		125
NA		0.0711		Type		Bi-Telecentric
Mount		M72		Object Field of View(Φmm)		72.7
Best Aperture(f/#)		6		MTF30 (lp/mm)		>135
Object Resolution(μm)		4.7		Depth of Field(mm)		±0.3@F6.0
Distortion Typical(% max)		<0.1		Telecentricity Typical (°max)		<0.3
Length of I/O(mm)		650		Length (mm)		513
Weight(kg)		5.7		Iris Adjustable		No
With Coaxial Illumination Port		No		Measured Depth of Field (mm)		0.5
Filter Screw Size		M112x0.75
Field of View (mm × mm)		KAI-47051(48.7x29.0)			57.1x34.0


		Linescan-12K 5um(61.44mm)			72.0mm
		Linescan-16K 3.5/3.53um(57.4mm)			67.3mm

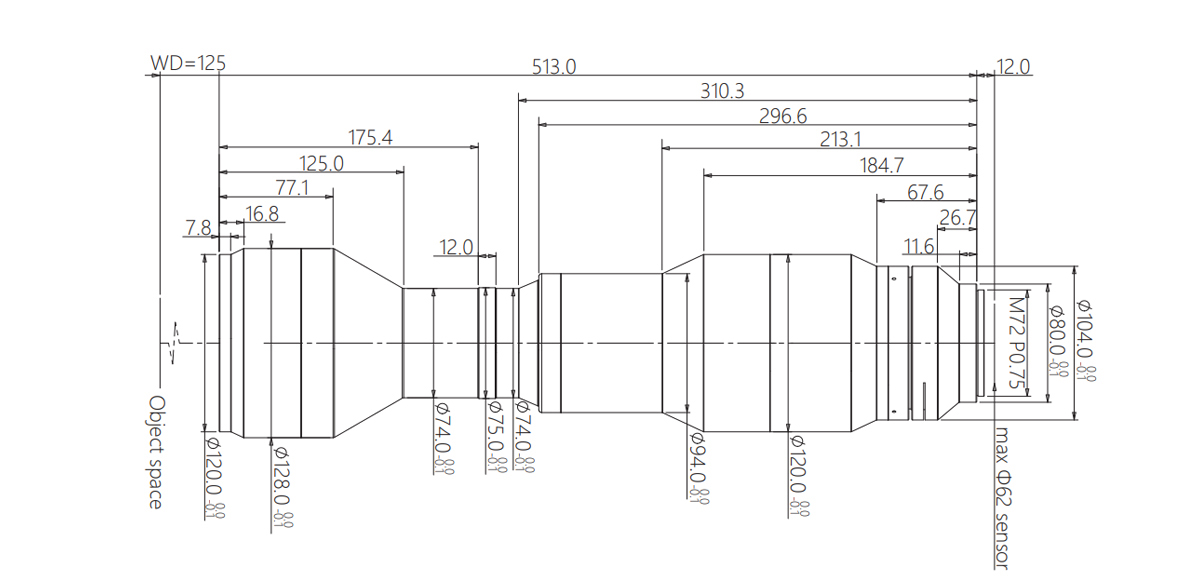

Dimensions
