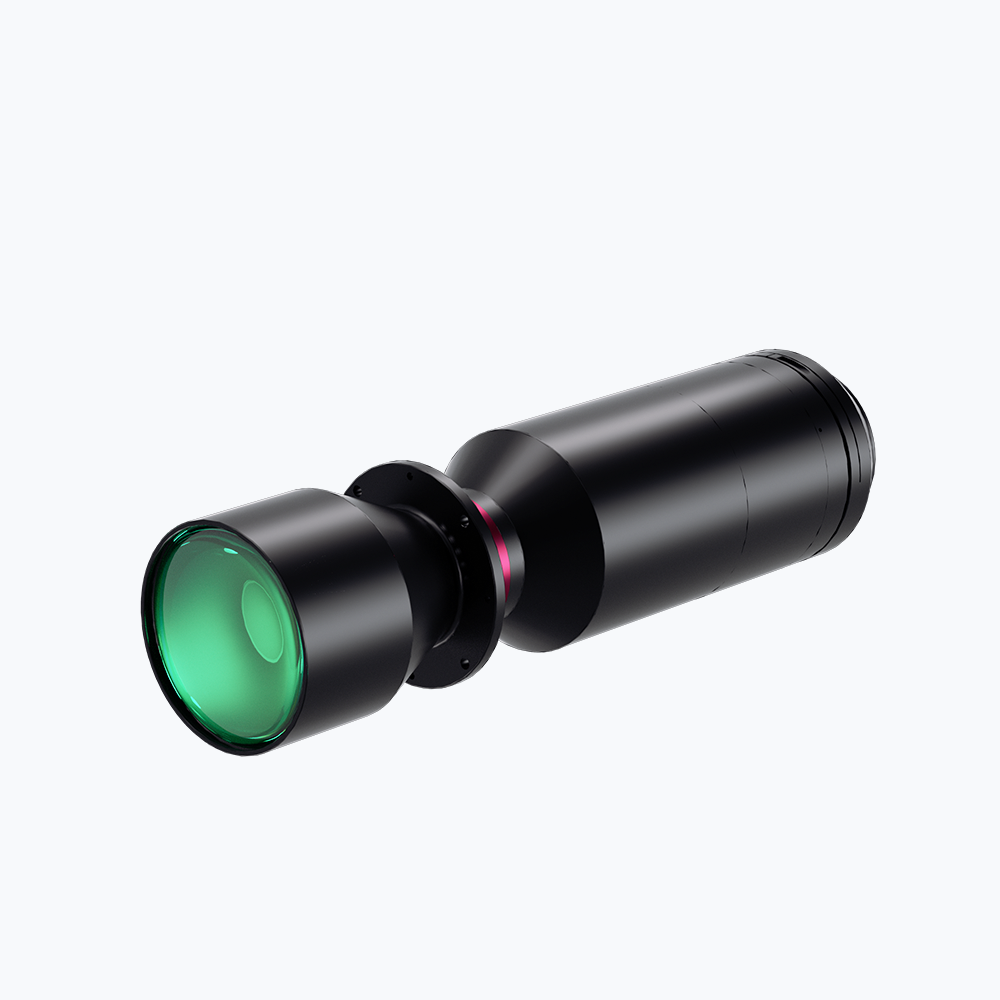

23K 0.875X Bi-Telecentric Lenses | DTCA23K-93.7-M95-AL COOLENS®

Name: 23K 0.875X Bi-Telecentric Lenses | DTCA23K-93.7-M95-AL COOLENS®
Brand: COOLENS
SKU: DTCA23K-93.7-M95-AL
Price: 3896 USD
Availability: InStock
Rating: 0 (0 reviews)

DTCA23K-93.7-M95-AL

Image Circle:82(23K)mm, Magnification:0.875X, FoV:93.7mm, WD:140mm, NA:0.04601, Mount:M95, Type:Bi-Telecentric Lenses

$3,896.00 USD

Quantity

Description

Model NO.	DTCA23K-93.7-M95-AL	Image Circle Diameter (Φmm)		82(23K)
Magnification(x)	0.875	Working Distance(mm)		140
NA	0.0460	Type		Bi-Telecentric
Mount	M95	Object Field of View(Φmm)		93.7
Best Aperture(f/#)	9.5	MTF30 (lp/mm)		>97
Object Resolution(μm)	7.3	Depth of Field(mm)		1
Distortion Typical(% max)	0.03	Telecentricity Typical (°max)		0.08
Length of I/O(mm)	623	Length (mm)		470.7
Weight(kg)	6	Iris Adjustable		No
With Coaxial Illumination Port	No	Measured Depth of Field (mm)		0.35
Filter Screw Size	M95x1.0
Field of View (mm × mm)	DALSA 86M (64.32X37.2)		73.5×55.3


	Linescan-16K 5um (23.04X23.04)		93.6

23K 0.875X Bi-Telecentric Lenses | DTCA23K-93.7-M95-AL COOLENS®

Dimensions

Naming Rule
