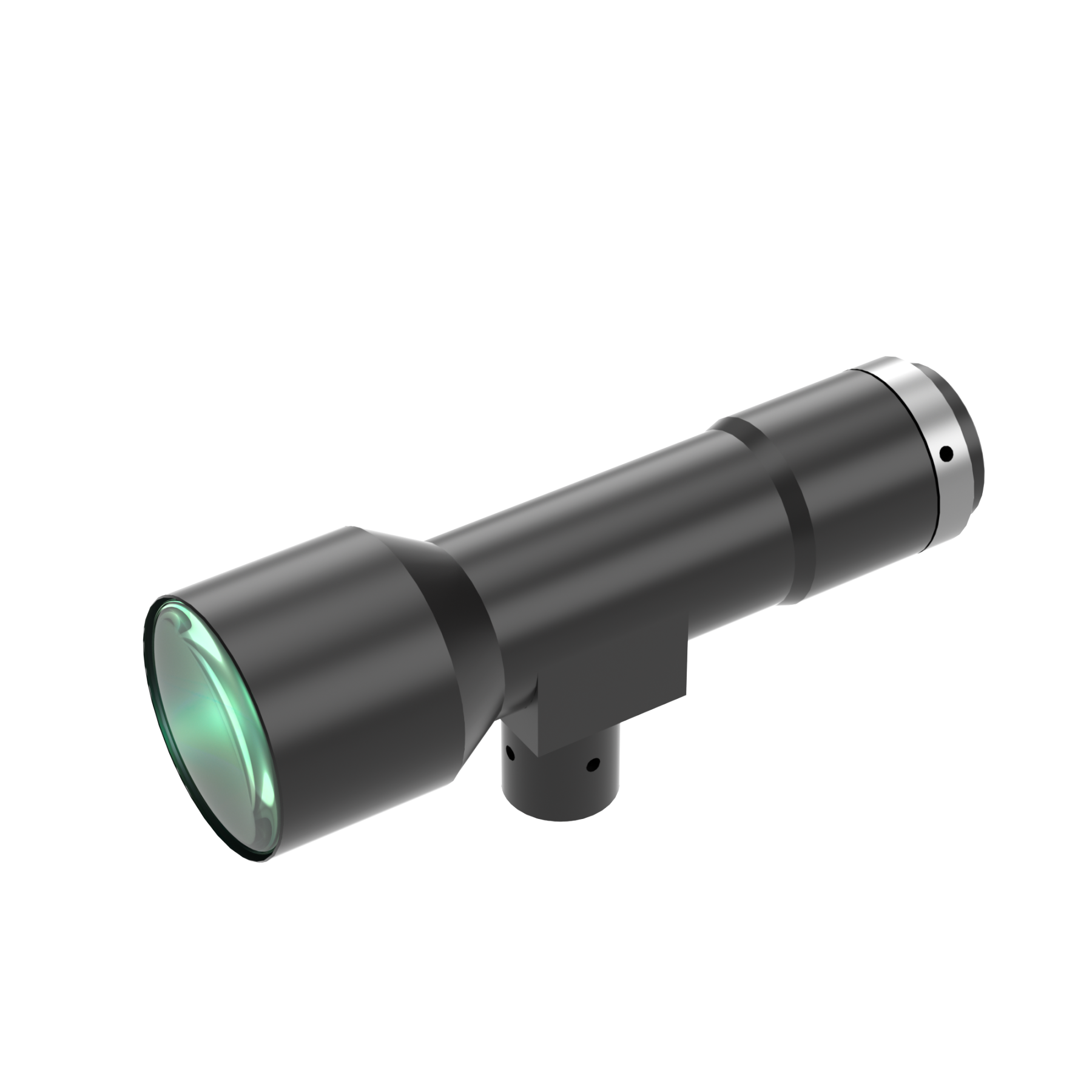

| Model NO. |
WWK08-110C-111 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
0.800 |
Working Distance(mm) |
110±2 |
| NA |
0.0503 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
7.9 |
| MTF30 (lp/mm) |
>85 |
Object Resolution(μm) |
6.7 |
| Depth of Field(mm) |
±0.5@F7.9 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
122.7 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.6 |
| Filter Screw Size |
M37.0x0.5 |
| Field of View (mm x mm) |
|
| 1" IMX183 (13.13x8.76) |
16.4×11.0 |
| 1.1" IMX253 (14.19x10.38) |
17.7×13.0 |
Dimensions
Naming Rule
