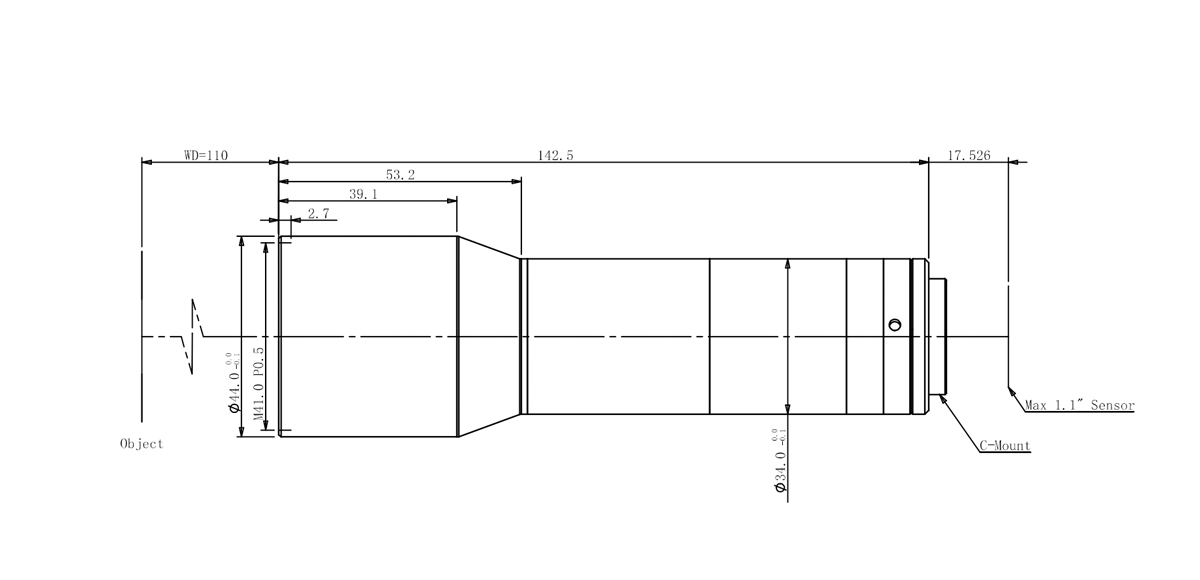

Model NO. | WWK08-110-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.800 | Working Distance(mm) | 110±2 | ||||
NA | 0.0605 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 6.6 | ||||
MTF30 (lp/mm) | >128 | Object Resolution(μm) | 5.5 | ||||
Depth of Field(mm) | ±0.4@F6.6 | Distortion Typical(% max) | <0.08 | ||||
Telecentricity Typical (°max) | <0.06 | Length (mm) | 142.5 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M41x0.5 | ||||||
Field of View (mm x mm) | |||||||
1“ IMX183 (13.13x8.76) | 16.4×11.0 | ||||||
1.1" IMX253 (14.19x10.38) | 17.7x13.0 | ||||||
1.1" GMAX0505 (12.8x12.8) | 16x16 |

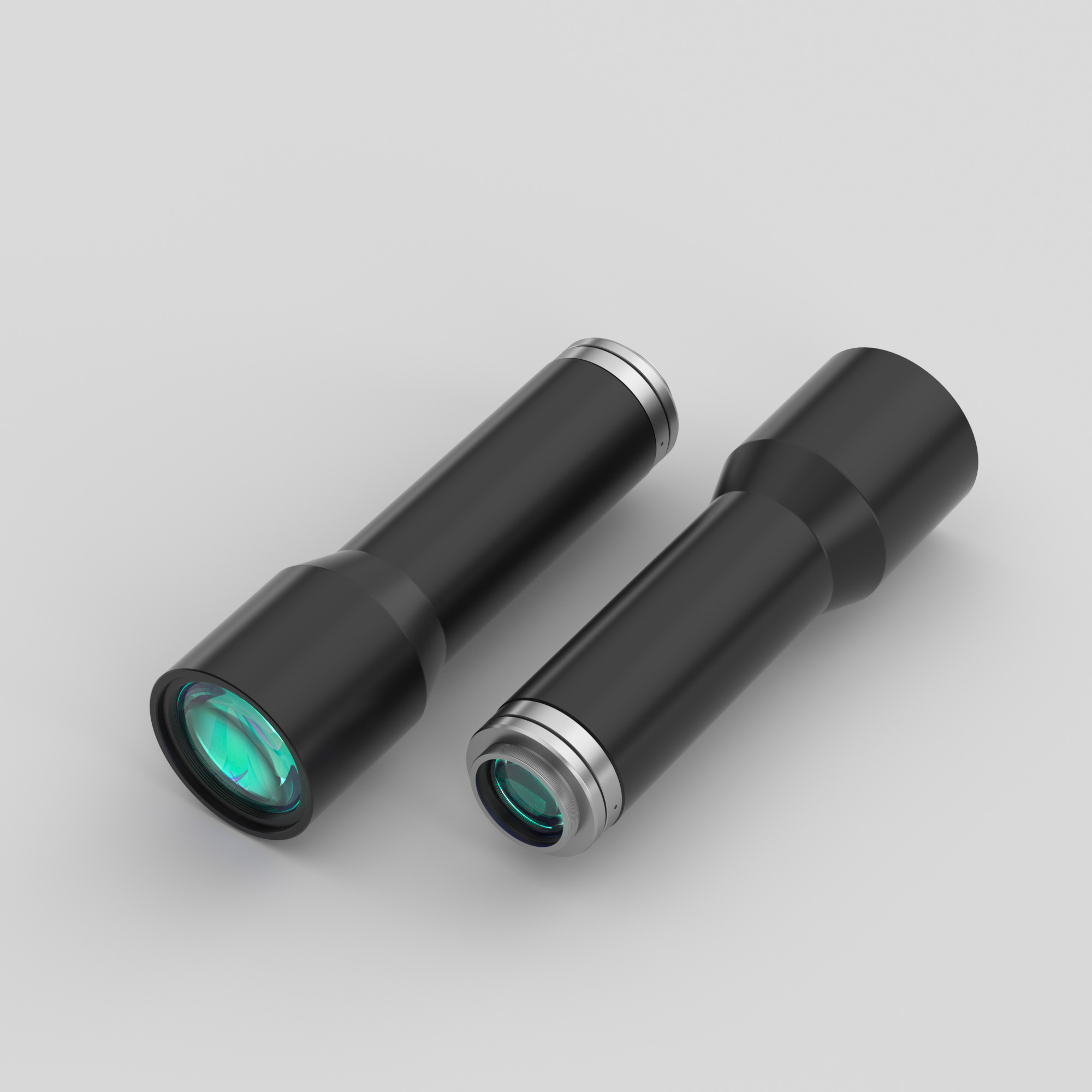

1.1" 0.8X Telecentric Lenses | WWK08-110-111V3 COOLENS®
$741.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK08-110-111V3 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.800 | Working Distance(mm) | 110±2 | ||||
NA | 0.0605 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 6.6 | ||||
MTF30 (lp/mm) | >128 | Object Resolution(μm) | 5.5 | ||||
Depth of Field(mm) | ±0.4@F6.6 | Distortion Typical(% max) | <0.08 | ||||
Telecentricity Typical (°max) | <0.06 | Length (mm) | 142.5 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M41x0.5 | ||||||
Field of View (mm x mm) | |||||||
1“ IMX183 (13.13x8.76) | 16.4×11.0 | ||||||
1.1" IMX253 (14.19x10.38) | 17.7x13.0 | ||||||
1.1" GMAX0505 (12.8x12.8) | 16x16 |
