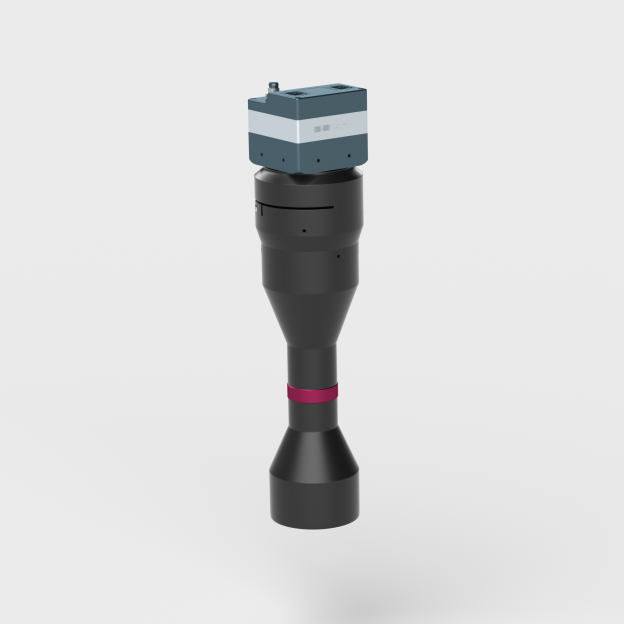

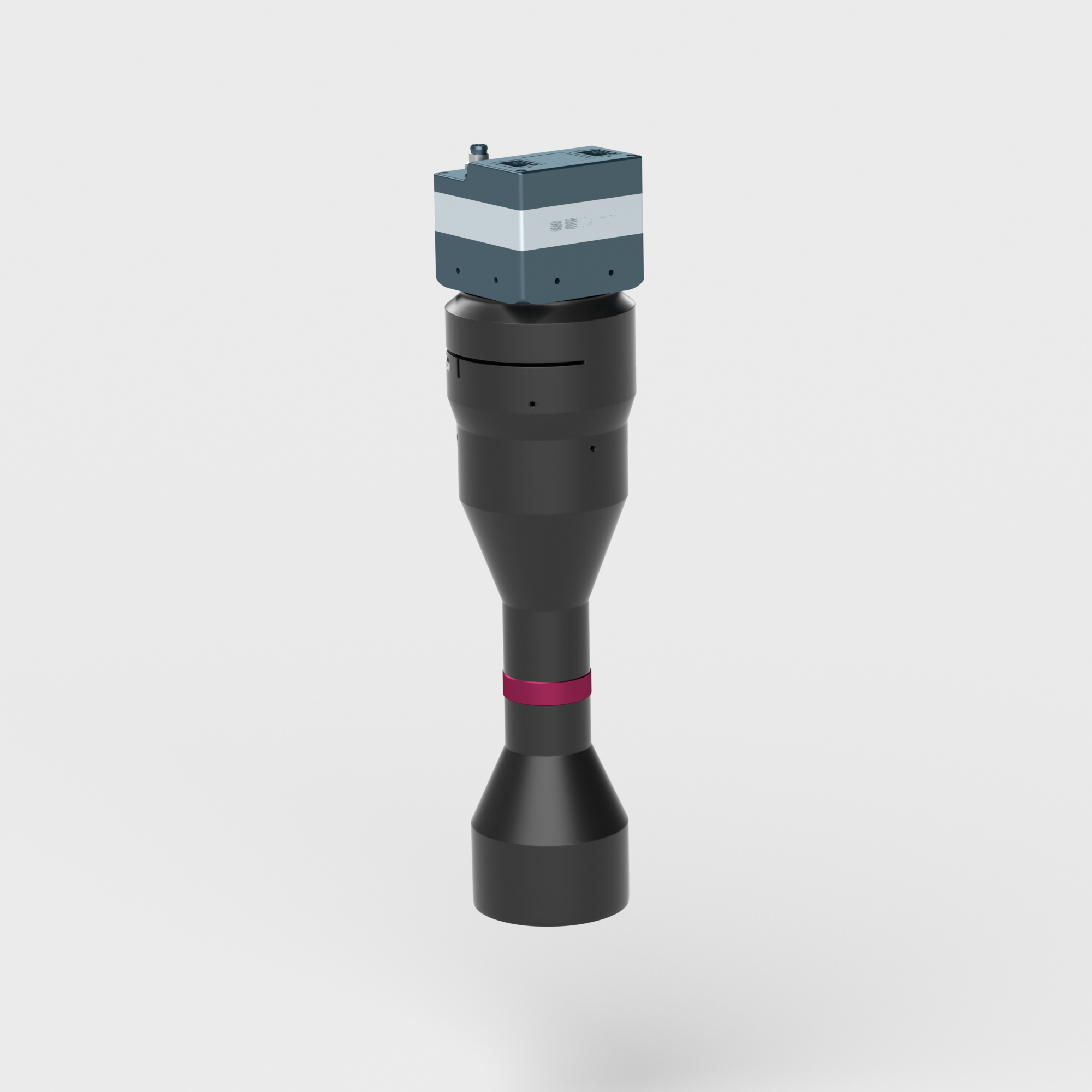

| Model NO. |
DTCM35FH-48-M58-AL |
Image Circle Diameter (Φmm) |
43.6(35mm Full) |
| Magnification(x) |
0.908 |
Working Distance(mm) |
128±3 |
| NA |
0.0266 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
48 |
| Best Aperture(f/#) |
17.1 |
MTF30 (lp/mm) |
>85 |
| Depth of Field(mm) |
±1.0@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
401±3 |
| Length (mm) |
261.3 |
Weight(kg) |
1.2 |
| Measured Depth of Field (mm) |
1.4 |
Filter Screw Size |
M60x0.5 |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
40.1x30.4 |
|
| KAI29050/2 (36.17x24.11) 34.8x23.2 |
39.8x26.6 |
| KAI43142 (36.18x24.12) |
39.8x26.6 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-48-xW-y |
|
|
| Beam Diameter 48mm |

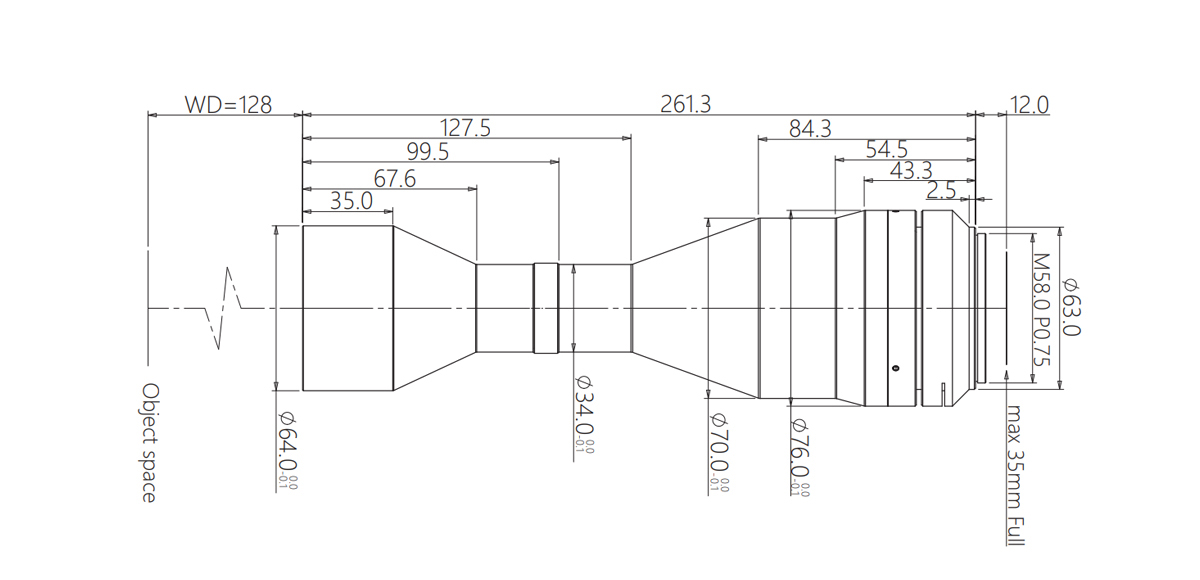

Dimensions
Naming Rule
