Model NO. | DTCA24K-92-M95-AL | Image Circle Diameter (Φmm) | 88(24K) | ||||
Magnification(x) | 0.960 | Working Distance(mm) | 150 | ||||
NA | 0.0624 | Type | Bi-Telecentric | ||||
Mount | M95 | Object Field of View(Φmm) | 91.6 | ||||
Best Aperture(f/#) | 8 | MTF30 (lp/mm) | >90 | ||||
Object Resolution(μm) | 5.4 | Depth of Field(mm) | ±0.3@F8.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 621 | Length (mm) | 458.5 | ||||
Weight(kg) | 6 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.5 | ||||
Filter Screw Size | M95x1.0 | ||||||
Field of View (mm × mm) |
64.32x48.38 with DALSA 86M | 67.0x50.4 | |||||
81.9mm with Linescan-16K 5μm | 85.3mm | ||||||
86.0mm with Linescan-24K 3.5μm | 89.6mm |

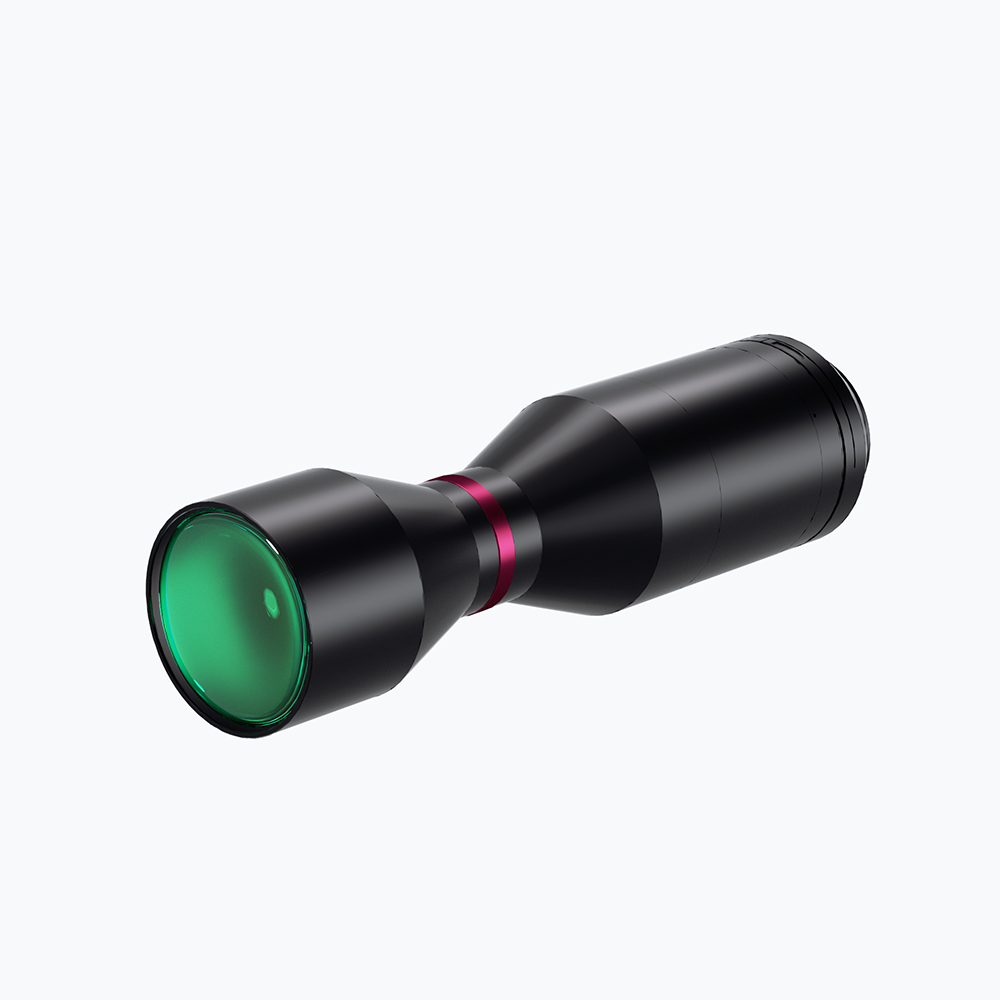

24K 0.96X Bi-Telecentric Lenses | DTCA24K-92-M95-AL COOLENS®
$4,091.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCA24K-92-M95-AL | Image Circle Diameter (Φmm) | 88(24K) | ||||
Magnification(x) | 0.960 | Working Distance(mm) | 150 | ||||
NA | 0.0624 | Type | Bi-Telecentric | ||||
Mount | M95 | Object Field of View(Φmm) | 91.6 | ||||
Best Aperture(f/#) | 8 | MTF30 (lp/mm) | >90 | ||||
Object Resolution(μm) | 5.4 | Depth of Field(mm) | ±0.3@F8.0 | ||||
Distortion Typical(% max) | <0.1 | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 621 | Length (mm) | 458.5 | ||||
Weight(kg) | 6 | Iris Adjustable | No | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.5 | ||||
Filter Screw Size | M95x1.0 | ||||||
Field of View (mm × mm) |
64.32x48.38 with DALSA 86M | 67.0x50.4 | |||||
81.9mm with Linescan-16K 5μm | 85.3mm | ||||||
86.0mm with Linescan-24K 3.5μm | 89.6mm |
