1" 0.14X Industrial Lenses | WH014-650A-110 COOLENS®

Name: 1" 0.14X Industrial Lenses | WH014-650A-110 COOLENS®
Brand: COOLENS
SKU: WH014-650A-110
Price: 386 USD
Availability: InStock
Rating: 0 (0 reviews)

WH014-650A-110

Image Circle:16(1")mm, Magnification:0.14X, WD:600mm, NA:0.00467, Mount:C, Type:Fixed Magnification Lenses

$386.00 USD

Quantity

Description

Model NO.	WH014-650A-110	Image Circle Diameter (Φmm)	16(1")
Magnification(x)	0.14	Working Distance(mm)	600
NA	0.0047	Type	Fixed Magnification
Mount	C	Best Aperture(f/#)	15
MTF30 (lp/mm)	50	Object Resolution(μm)	71.8
Depth of Field(mm)	61.2	Distortion Typical(% max)	0.25
Telecentricity Typical (°max)	Non-telecentric	Length (mm)	109.7
With Coaxial Illumination Port	No	Measured Depth of Field (mm)	25
Filter Screw Size	M25x0.5
Field of View (mm x mm)

1/2"(6.4x4.8)		45.7x34.3
1/1.8"(7.13x5.37)		50.9x38.4
2/3"(8.8x6.6)		62.9x47.1
1"(12.43x9.83)		88.8x70.2

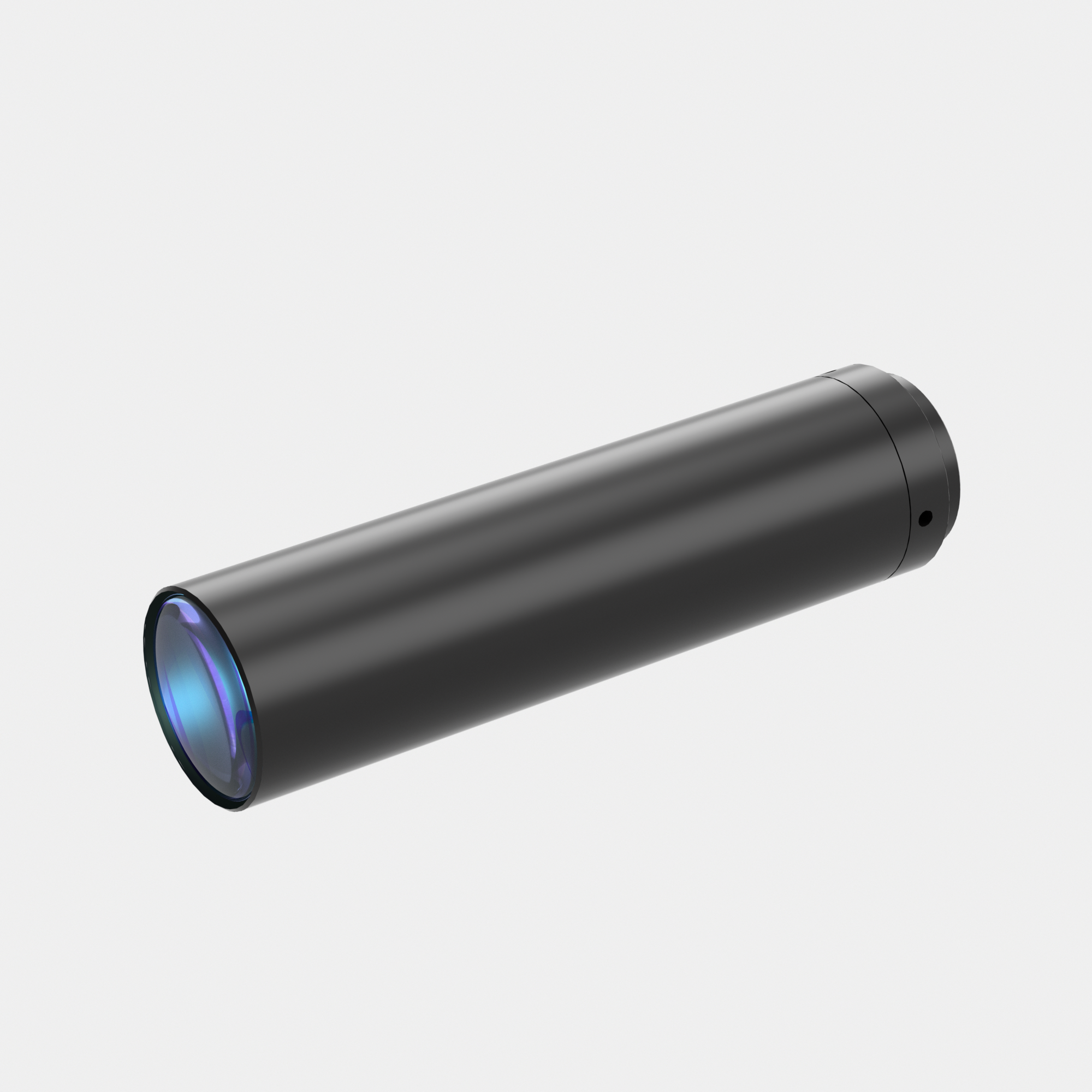

1" 0.14X Industrial Lenses | WH014-650A-110 COOLENS®

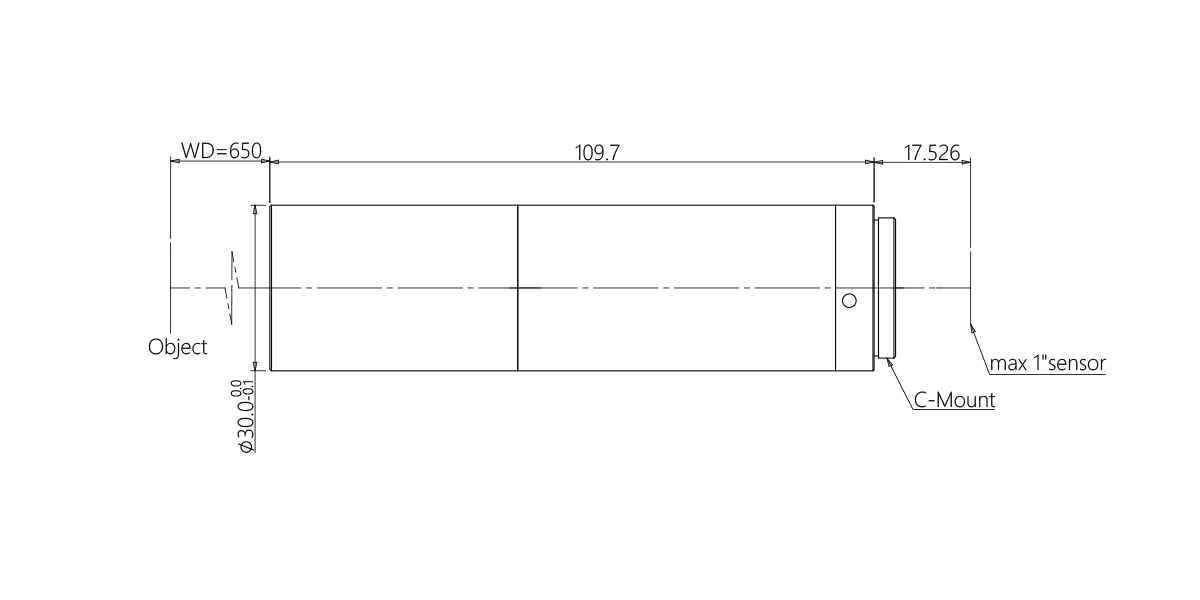

Dimensions

Naming Rule
