1" 0.16X Industrial Lenses | WH016-350A-110 COOLENS®

Name: 1" 0.16X Industrial Lenses | WH016-350A-110 COOLENS®
Brand: COOLENS
SKU: WH016-350A-110
Price: 386 USD
Availability: InStock
Rating: 0 (0 reviews)

WH016-350A-110

Image Circle:16(1")mm, Magnification:0.16X, WD:350mm, NA:0.00518, Mount:C, Type:Fixed Magnification Lenses

$386.00 USD

Quantity

Description

Model NO.	WH016-350A-110	Image Circle Diameter (Φmm)	16(1")
Magnification(x)	0.16	Working Distance(mm)	350
NA	0.0052	Type	Fixed Magnification
Mount	C	Best Aperture(f/#)	15.5
MTF30 (lp/mm)	50	Object Resolution(μm)	64.8
Depth of Field(mm)	48.4	Distortion Typical(% max)	0.2
Telecentricity Typical (°max)	Non-telecentric	Length (mm)	90.8
With Coaxial Illumination Port	No	Measured Depth of Field (mm)	25
Filter Screw Size	M25x0.5
Field of View (mm x mm)

1"(12.43x9.83)		77.7x61.4
1/1.8"(7.13×5.37)		44.6x33.6
2/3"(8.8×6.6)		55.0x41.2

1" 0.16X Industrial Lenses | WH016-350A-110 COOLENS®

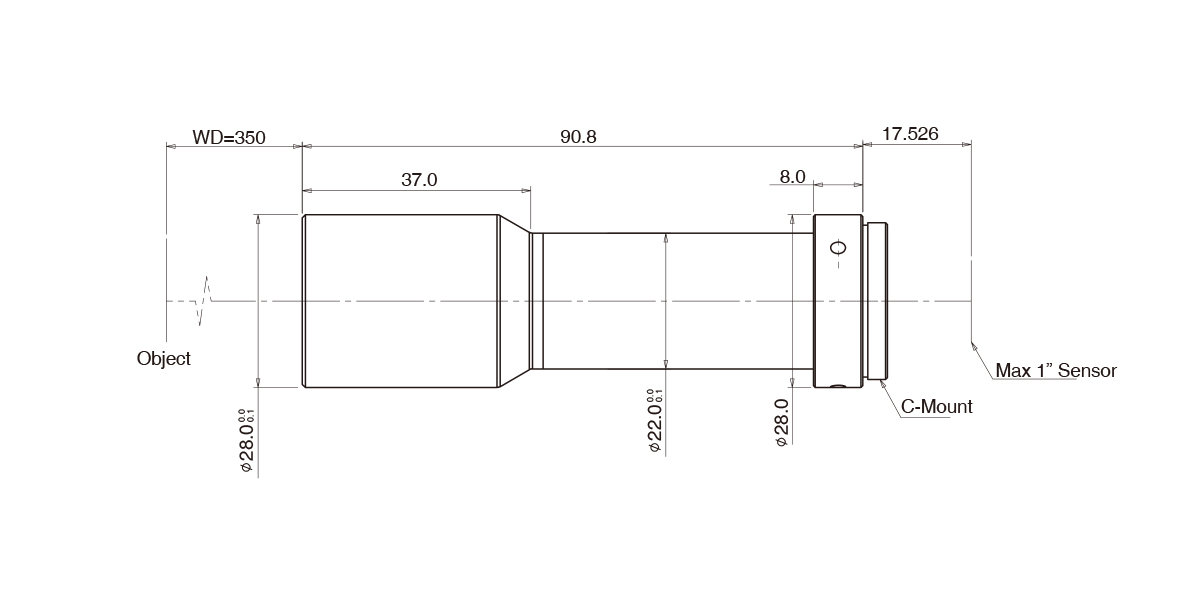

Dimensions

Naming Rule
