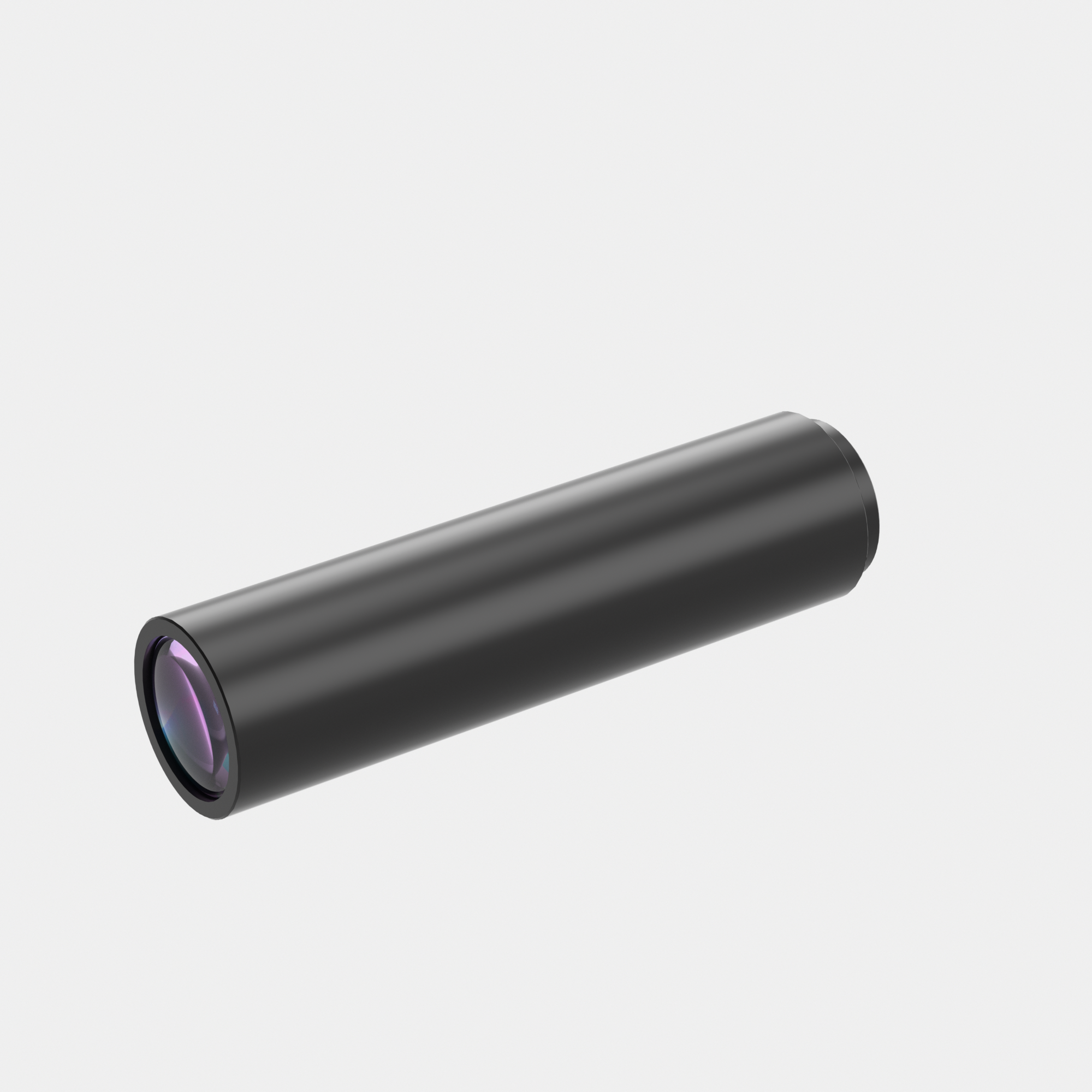

1" 0.16X Industrial Lenses | WH016-570A-110 COOLENS®

WH016-570A-110
Image Circle:16(1")mm, Magnification:0.16X, WD:570mm, NA:0.00665, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH016-570A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.16 Working Distance(mm) 570
NA 0.0067 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.1
MTF30 (lp/mm) 50 Object Resolution(μm) 50.5
Depth of Field(mm) 37.8 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 109.9
With Coaxial Illumination Port No Measured Depth of Field (mm) /

Filter Screw Size
1/2"(6.4×4.8) 40.0x30.0
1/1.8"(7.13×5.37)  44.6x33.6
2/3"(8.8×6.6)  55.0x41.3
1"(12.43x9.83) 77.7x61.4

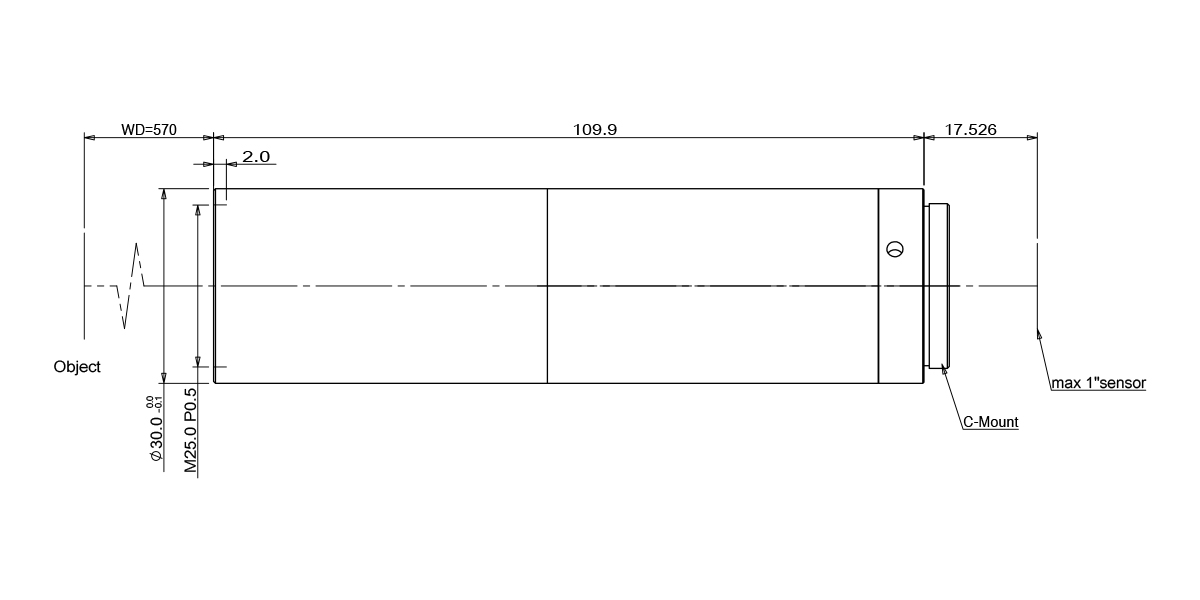

Dimensions

Naming Rule
