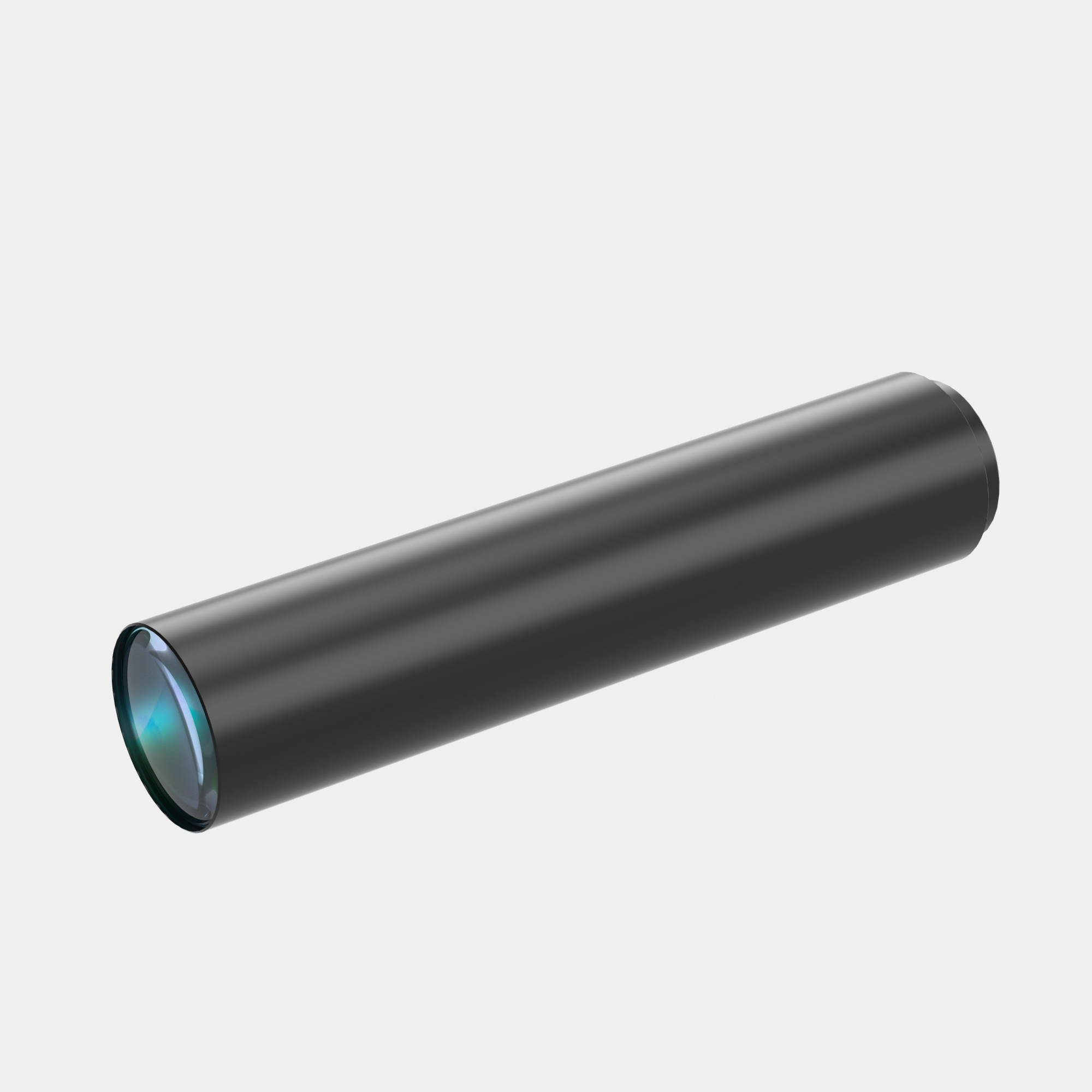

1" 0.175X Industrial Lenses | WH0175-640A-110 COOLENS®

WH0175-640A-110
Image Circle:16(1")mm, Magnification:0.175X, WD:640mm, NA:0.00801, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH0175-640A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.175 Working Distance(mm) 640
NA 0.008 Type Fixed Magnification
Mount C Best Aperture(f/#) 10.9
MTF30 (lp/mm) 77 Object Resolution(μm) 41.9
Depth of Field(mm) 28.5 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 132.3
With Coaxial Illumination Port No Measured Depth of Field (mm) 12
Filter Screw Size /
Field of View (mm x mm)
1/1.8"(7.13x5.37) 40.7x30.7
2/3"(8.8x6.6) 50.3x37.7
1"(12.43x9.83) 71.0x56.2

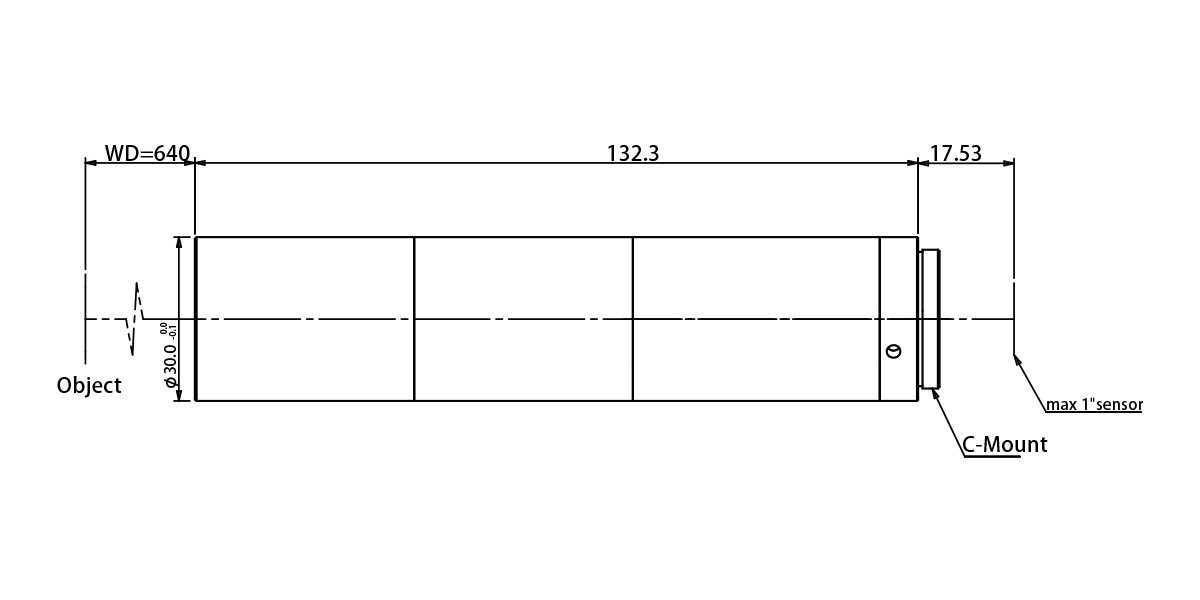

Dimensions

Naming Rule
