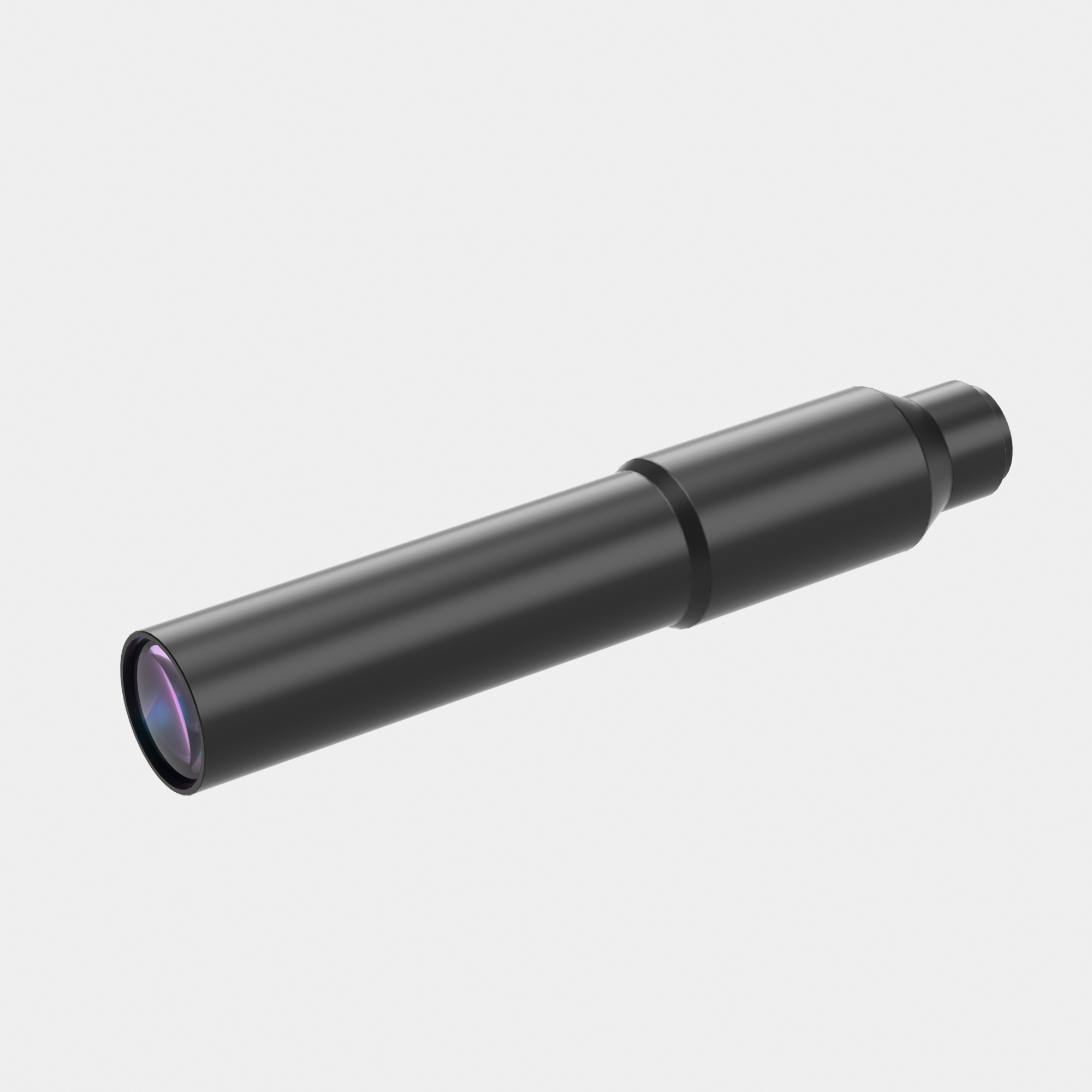

1" 0.17X Industrial Lenses | WH017-1050A-110 COOLENS®

WH017-1050A-110

Image Circle:16(1")mm, Magnification:0.17X, WD:1050mm, NA:0.00804, Mount:C, Type:Fixed Magnification Lenses

$515.00 USD

Quantity

Description

Model NO.		WH017-1050A-110		Image Circle Diameter (Φmm)		16(1")
Magnification(x)		0.17		Working Distance(mm)		1050
NA		0.008		Type		Fixed Magnification
Mount		C		Best Aperture(f/#)		10.6
MTF30 (lp/mm)		80		Object Resolution(μm)		41.7
Depth of Field(mm)		29.3		Distortion Typical(% max)		0.01
Telecentricity Typical (°max)		Non-telecentric		Length (mm)		226.4
With Coaxial Illumination Port		No		Measured Depth of Field (mm)		9
Filter Screw Size		M35x0.5
Field of View (mm x mm)

1/2"(6.4x4.8)				37.6x28.2
1/1.8"(7.13x5.37)				41.9x31.6
2/3"(8.8x6.6)				51.7x38.8
1"(12.43x9.83)				73.1x57.8

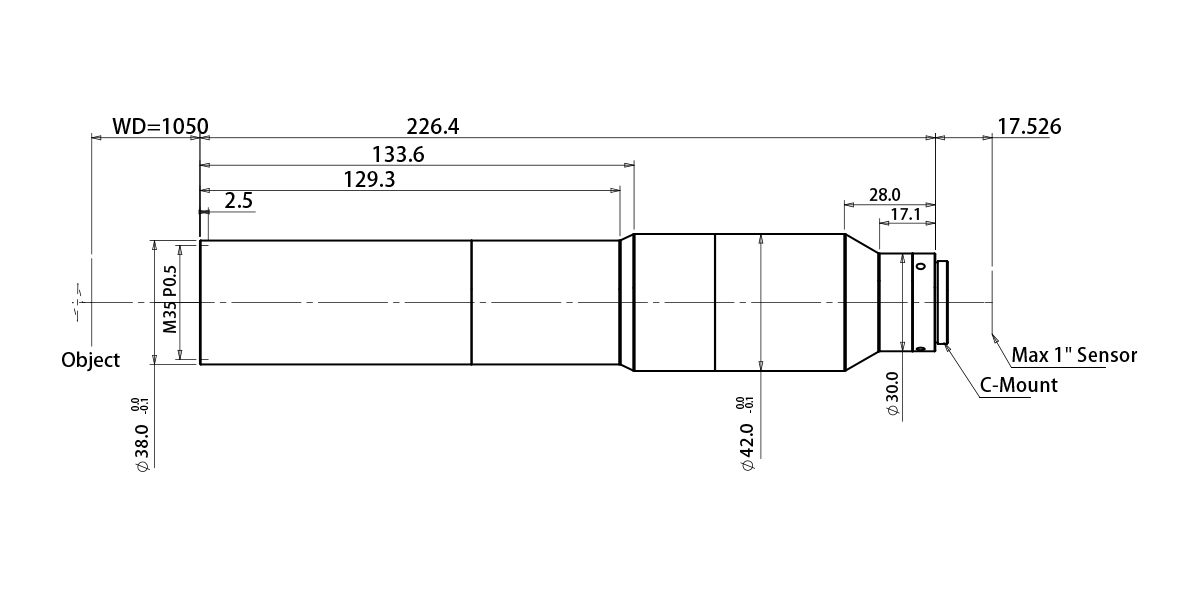

Dimensions

Naming Rule
