Model NO. | WH026-186A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.26 | Working Distance(mm) | 186 | ||||
NA | 0.0137 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 9.5 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 24.5 | ||||
Depth of Field(mm) | 11.2 | Distortion Typical(% max) | 0.01 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 141.2 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
2/3"(8.45x7.1) | 32.5x27.3 | ||||||
1"(13.13x8.76) | 50.5x33.7 |

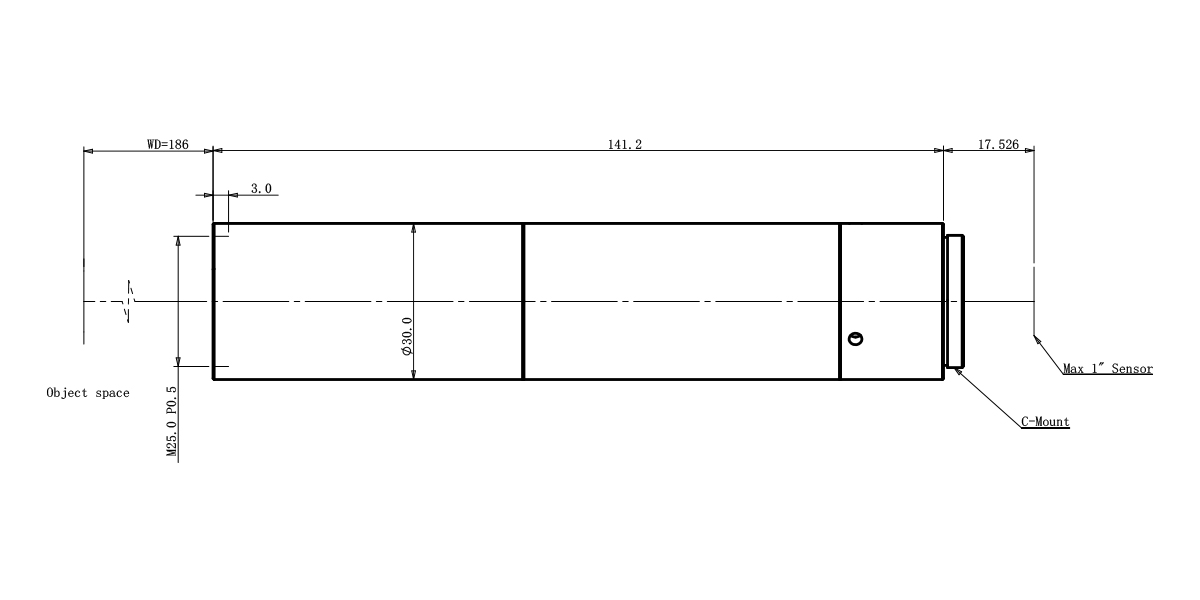

Dimensions
Naming Rule
