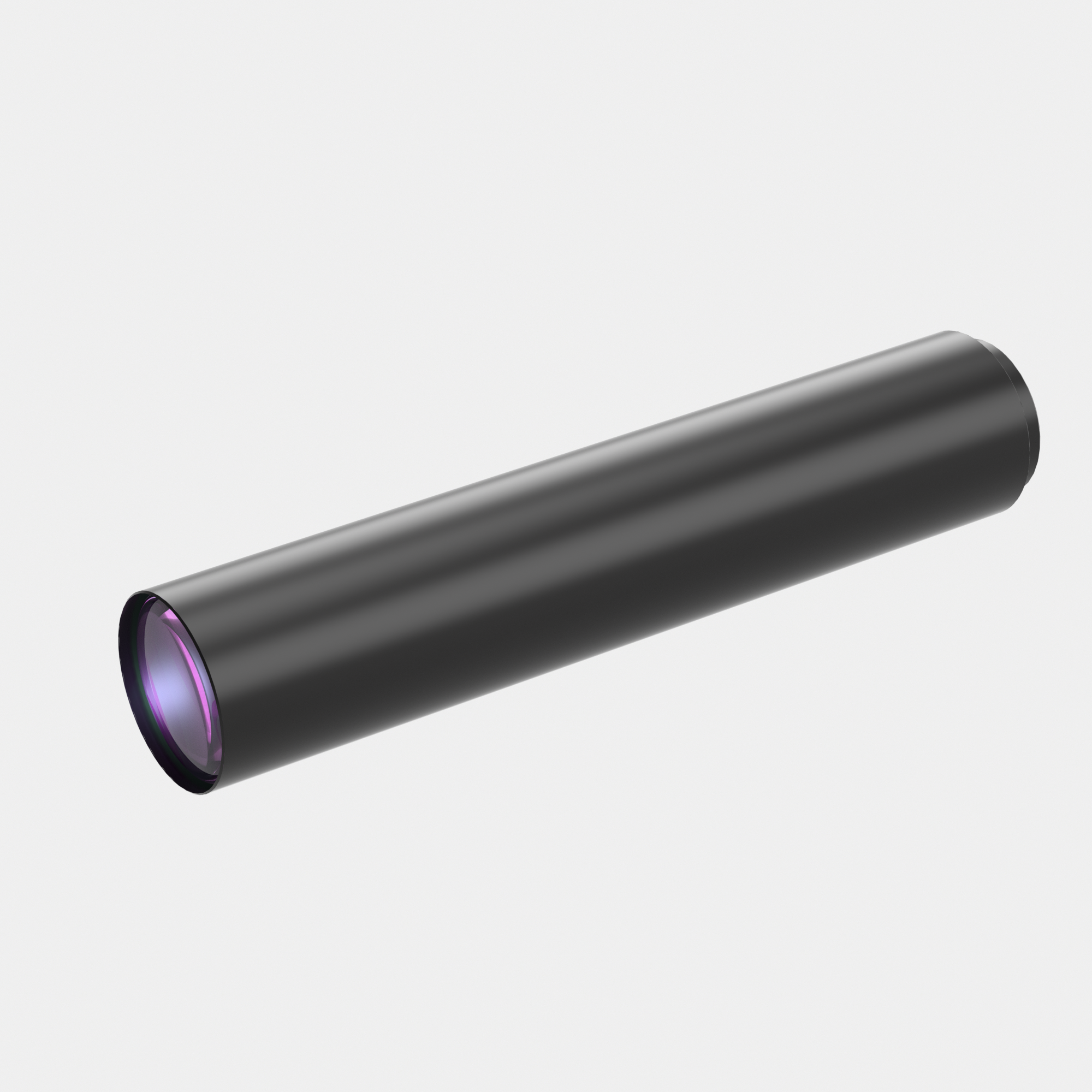

1" 0.27X Industrial Lenses | WH027-425A-110 COOLENS®

WH027-425A-110
Image Circle:16(1")mm, Magnification:0.27X, WD:425mm, NA:0.01349, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH027-425A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.27 Working Distance(mm) 425
NA 0.0135 Type Fixed Magnification
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 80 Object Resolution(μm) 24.9
Depth of Field(mm) 11 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 143.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 6.5
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 23.7x17.8
1/1.8"(7.13x5.37) 26.4x19.9
2/3"(8.8x6.6) 32.6x24.4
1"(12.43x9.83) 46.0x36.4

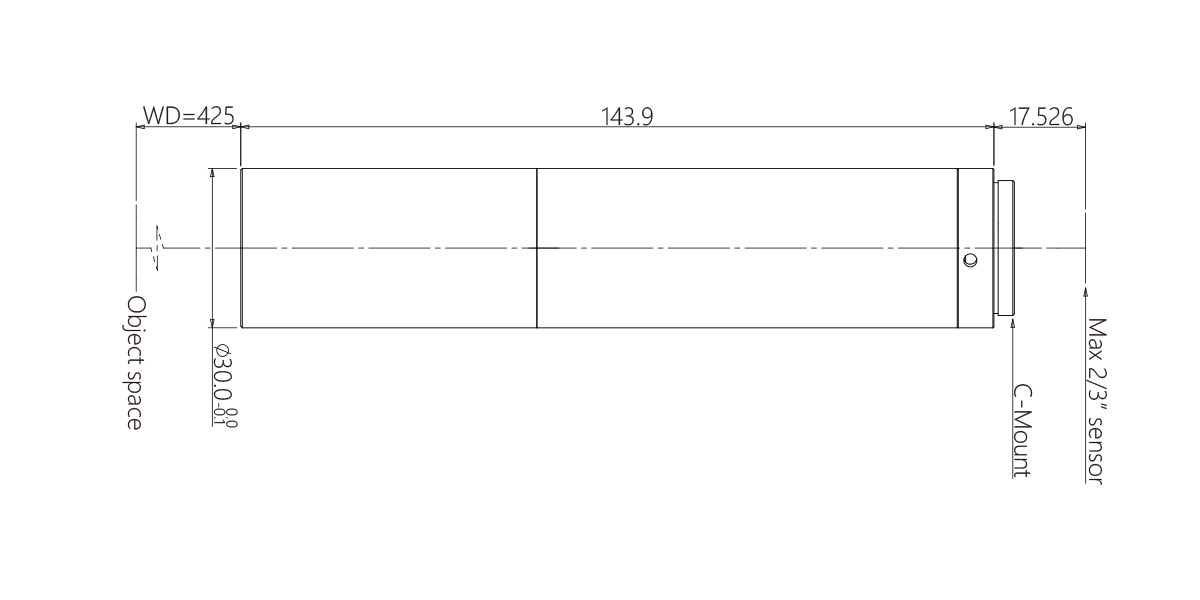

Dimensions

Naming Rule
