  • 1" 0.28X Industrial Lenses | WH028-680A-110 COOLENS®-OKLAB
1 / 1

1" 0.28X Industrial Lenses | WH028-680A-110 COOLENS®

WH028-680A-110
$386.00 USD
Shipping calculated at checkout.
Quantity
1" 0.28X Industrial Lenses | WH028-680A-110 COOLENS®-OKLAB

Description

Model NO. WH028-680A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.28 Working Distance(mm) 680
NA 0.0119 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.8
MTF30 (lp/mm) 78 Object Resolution(μm) 28.3
Depth of Field(mm) 12 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 238.4
With Coaxial Illumination Port No Measured Depth of Field (mm) 6
Filter Screw Size M35x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 22.9x17.1
1/1.8"(7.13x5.37) 25.5x19.2
2/3"(8.8x6.6) 31.4x23.6
1"(12.43x9.83) 44.4x35.1

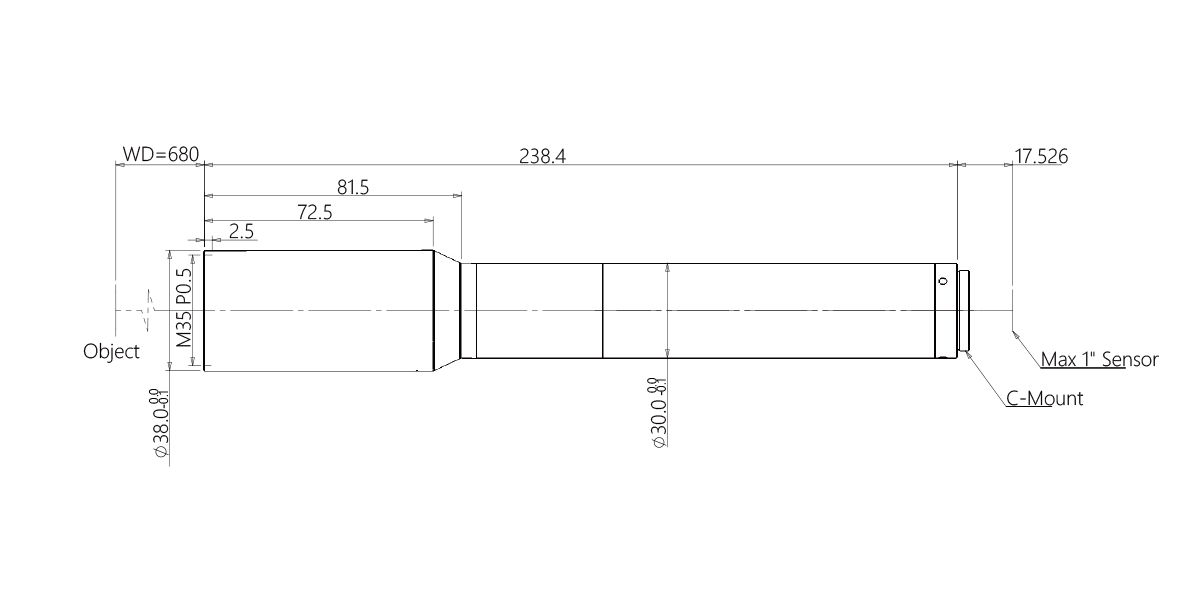

Dimensions

Naming Rule



Important Note
