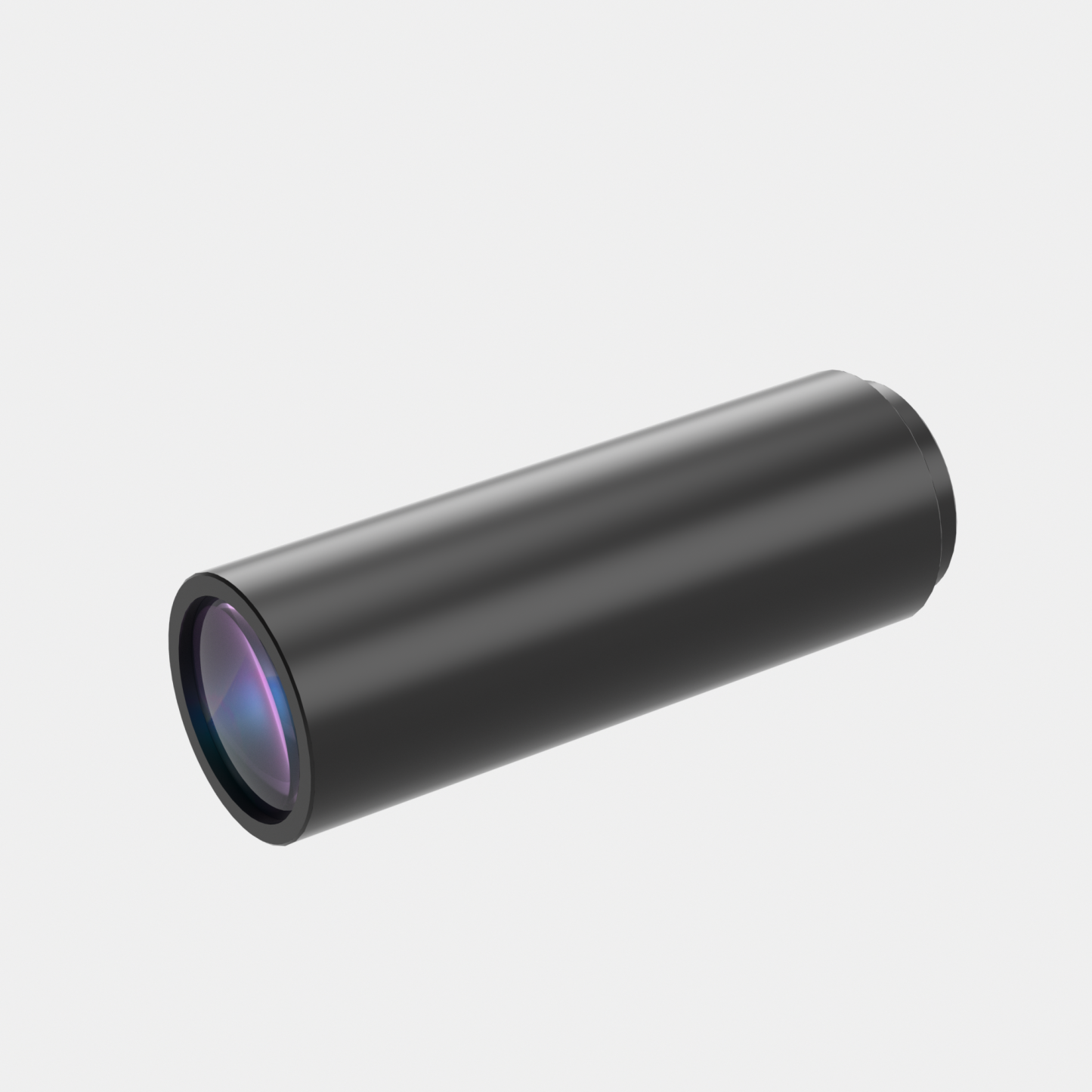

Model NO. | WH029-225A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.29 | Working Distance(mm) | 225 | ||||
NA | 0.0153 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 9.5 | ||||
MTF30 (lp/mm) | 93 | Object Resolution(μm) | 22 | ||||
Depth of Field(mm) | 9 | Distortion Typical(% max) | 0.01 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 82 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | M25x0.5 |

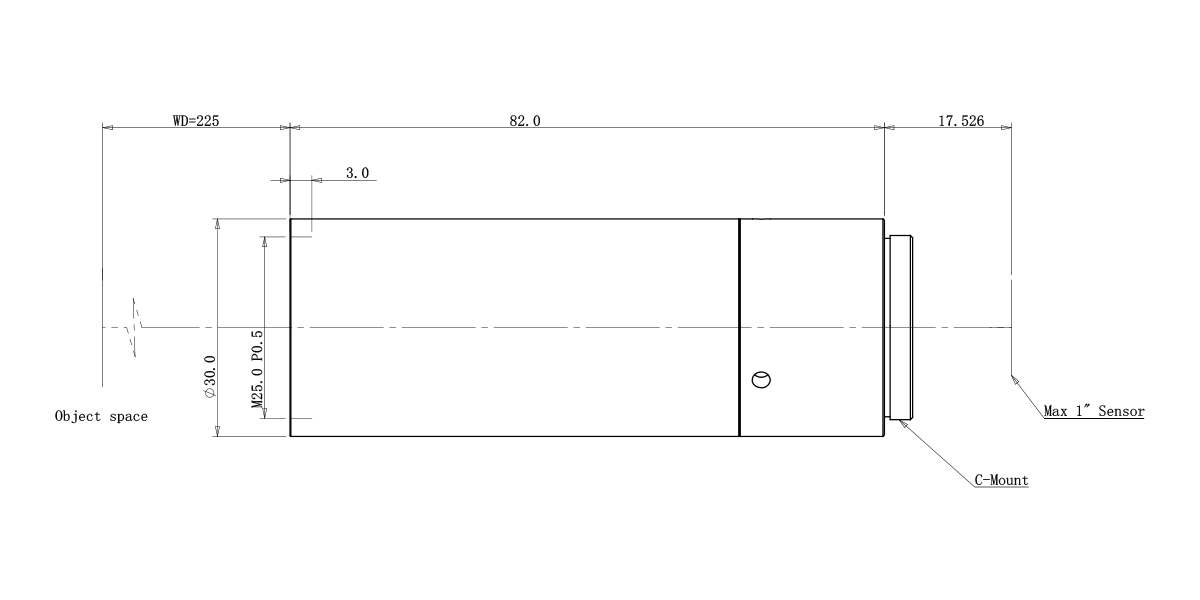

Dimensions
Naming Rule
