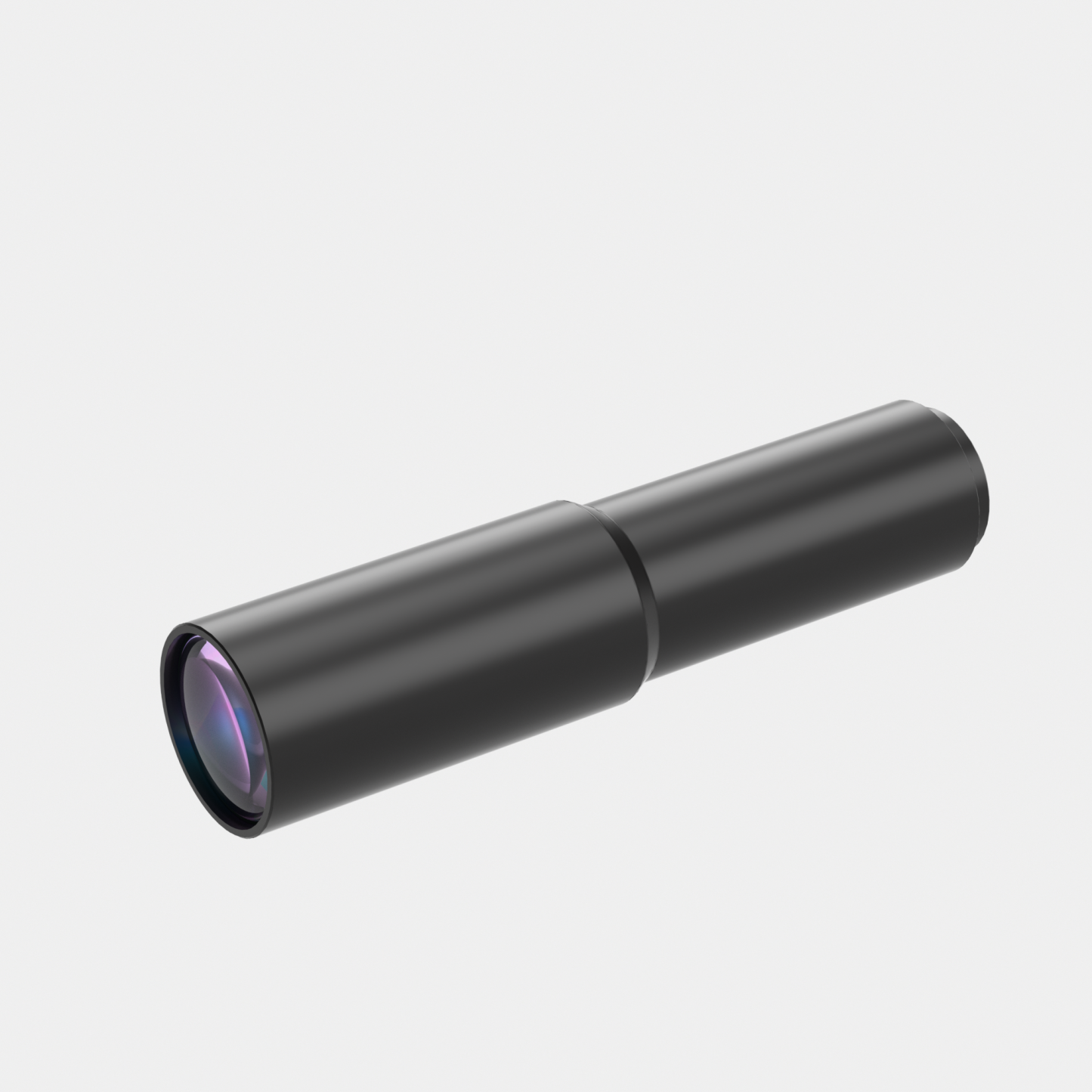

1" 0.29X Industrial Lenses | WH029-742A-110 COOLENS®

WH029-742A-110
Image Circle:16(1")mm, Magnification:0.29X, WD:742mm, NA:0.02, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH029-742A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.29 Working Distance(mm) 742
NA 0.02 Type Fixed Magnification
Mount C Best Aperture(f/#) 7.3
MTF30 (lp/mm) 108 Object Resolution(μm) 16.8
Depth of Field(mm) 6.9 Distortion Typical(% max) 0.04
Telecentricity Typical (°max) Non-telecentric Length (mm) 135.6
With Coaxial Illumination Port No Measured Depth of Field (mm) 2.5
Filter Screw Size M32x0.5

Field of View (mm x mm)
1/1.8"(7.13x5.37) 24.6x18.5
2/3"(8.45x7.1) 29.1x24.5
1"(13.13x8.76) 45.2x30.2

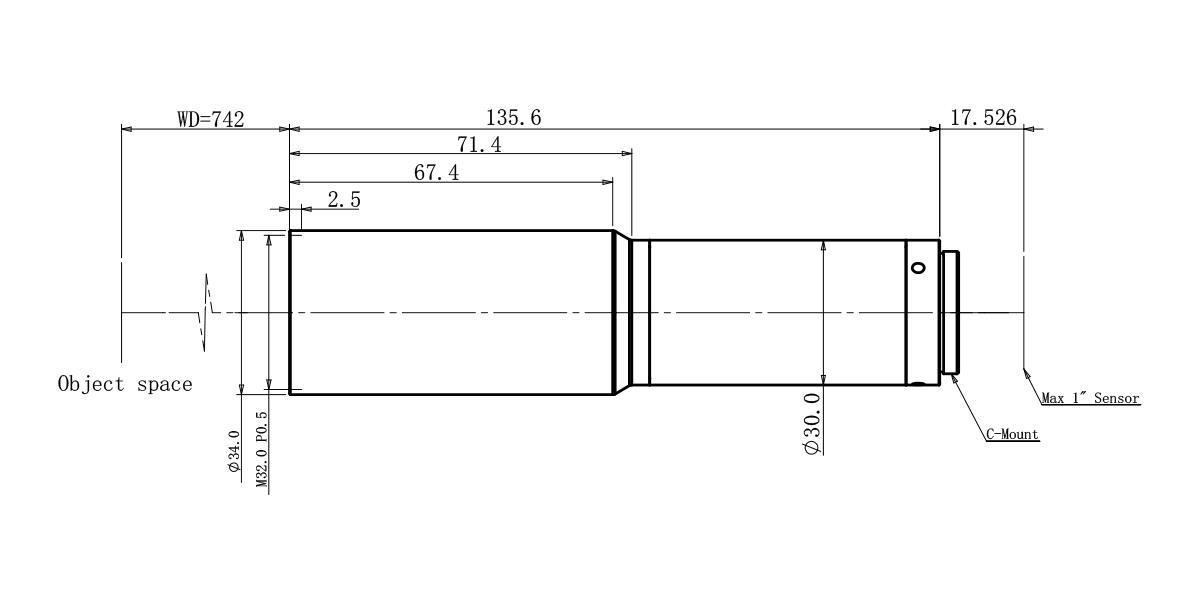

Dimensions

Naming Rule
