1" 0.3X Industrial Lenses | WH03-360A-110 COOLENS®

Name: 1" 0.3X Industrial Lenses | WH03-360A-110 COOLENS®
Brand: COOLENS
SKU: WH03-360A-110
Price: 429 USD
Availability: InStock
Rating: 0 (0 reviews)

WH03-360A-110

Image Circle:16(1")mm, Magnification:0.3X, WD:360mm, NA:0.01165, Mount:C, Type:Fixed Magnification Lenses

$429.00 USD

Quantity

Description

Model NO.	WH03-360A-110	Image Circle Diameter (Φmm)	16(1")
Magnification(x)	0.3	Working Distance(mm)	360
NA	0.0117	Type	Fixed Magnification
Mount	C	Best Aperture(f/#)	12.9
MTF30 (lp/mm)	55	Object Resolution(μm)	28.8
Depth of Field(mm)	11.5	Distortion Typical(% max)	<0.1
Telecentricity Typical (°max)	Non-telecentric	Length (mm)	140.3
With Coaxial Illumination Port	No	Measured Depth of Field (mm)	6
Filter Screw Size	M25x0.5
Field of View (mm x mm)

1/2"(6.4x4.8)		21.3x16.0
1/1.8"(7.13x5.37)		23.8x17.9
2/3"(8.8x6.6)		29.3x22.0
1"(12.43x9.83)		41.4x32.8

1" 0.3X Industrial Lenses | WH03-360A-110 COOLENS®

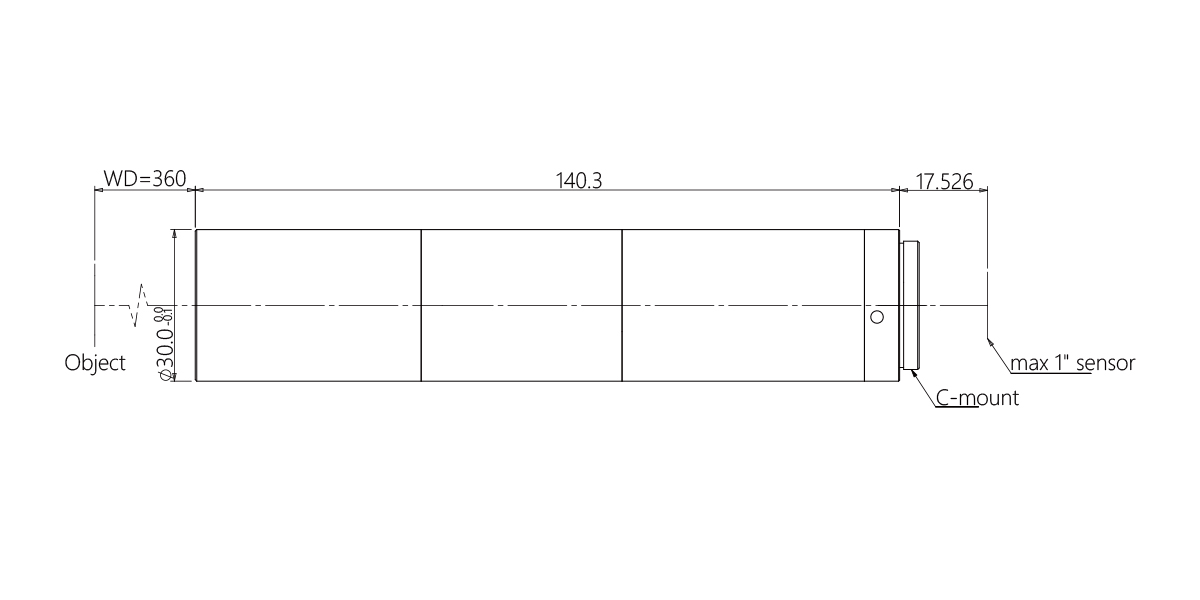

Dimensions

Naming Rule
