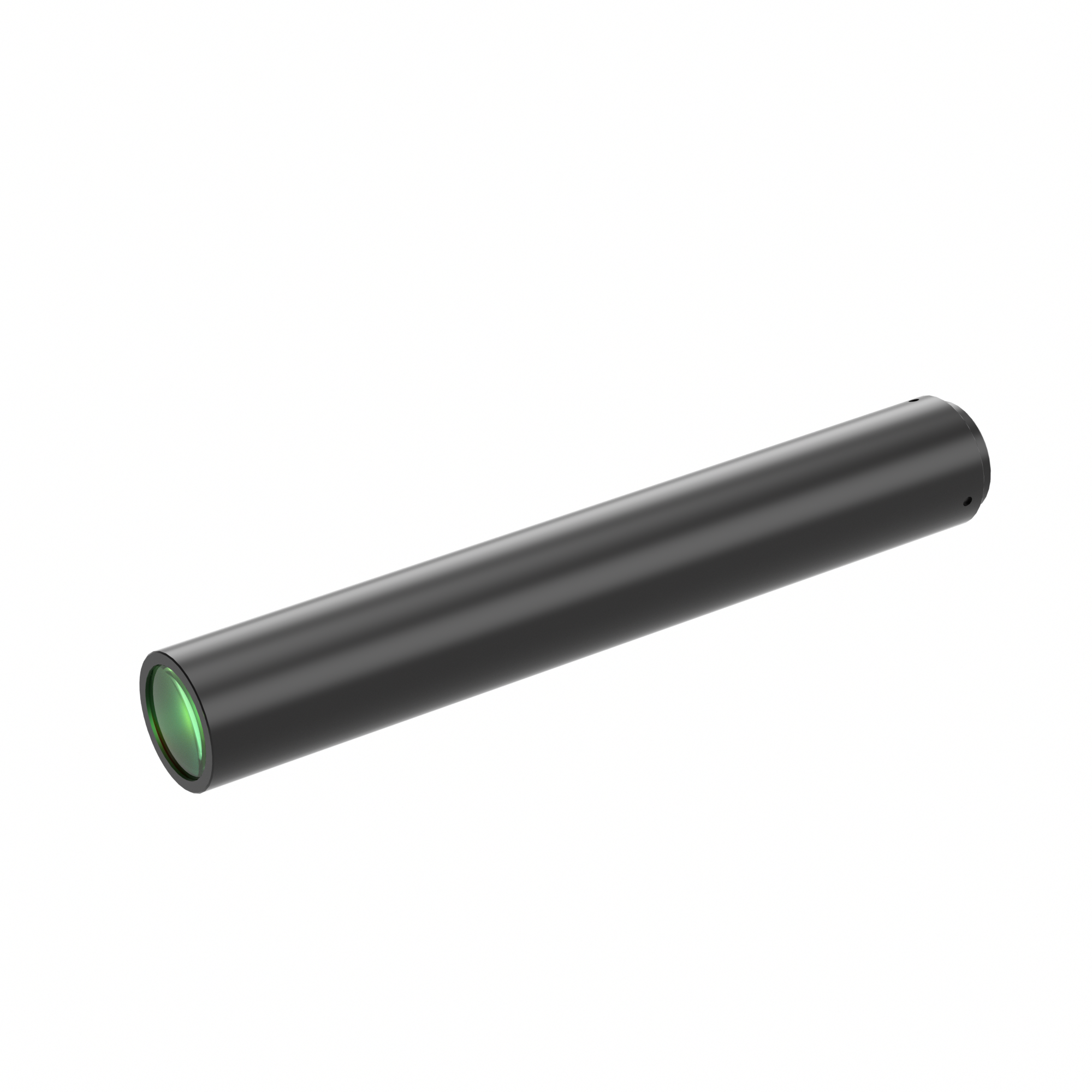

1" 0.55X Industrial Lenses | WH055-300A-110 COOLENS®

WH055-300A-110
Image Circle:16(1")mm, Magnification:0.55X, WD:300mm, NA:0.01976, Mount:C, Type:Fixed Magnification Lenses
$386.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$386.00 USD each
Description

Model NO. WH055-300A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.55 Working Distance(mm) 300
NA 0.0198 Type Fixed Magnification
Mount C Best Aperture(f/#) 13.9
MTF30 (lp/mm) 65 Object Resolution(μm) 17
Depth of Field(mm) 3.7 Distortion Typical(% max) 0.25
Telecentricity Typical (°max) Non-telecentric Length (mm) 195.8
With Coaxial Illumination Port No Measured Depth of Field (mm) 2
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 11.6x8.7
1/1.8"(7.13x5.37) 13.0x9.8
2/3"(8.8x6.6) 16.0x12.0
1"(12.43x9.83) 22.6x17.9

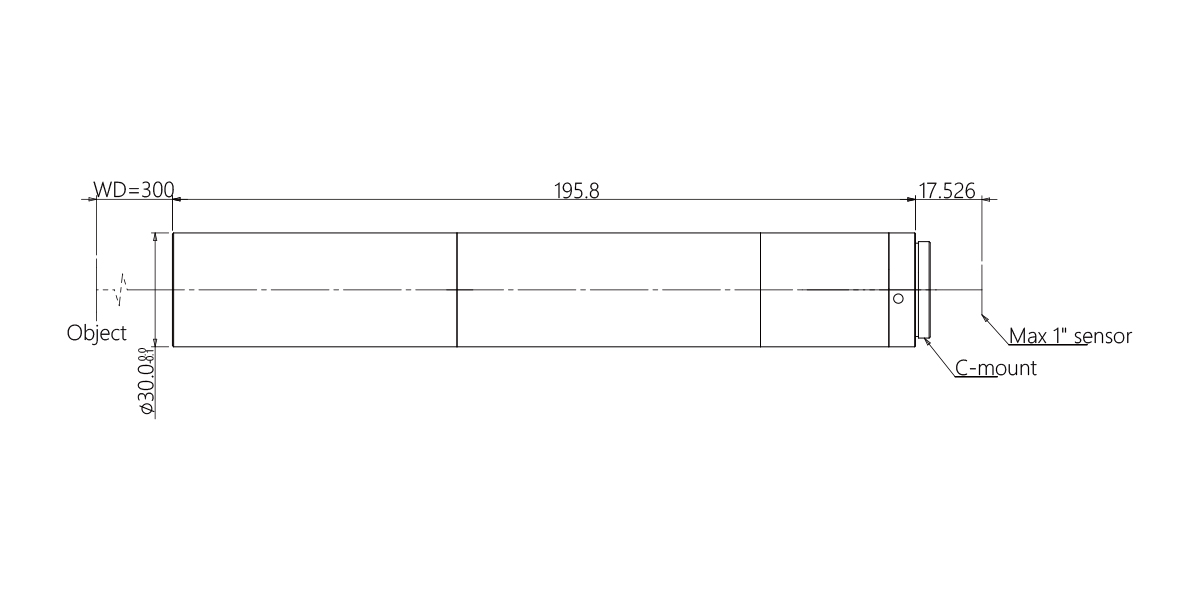

Dimensions

Naming Rule
