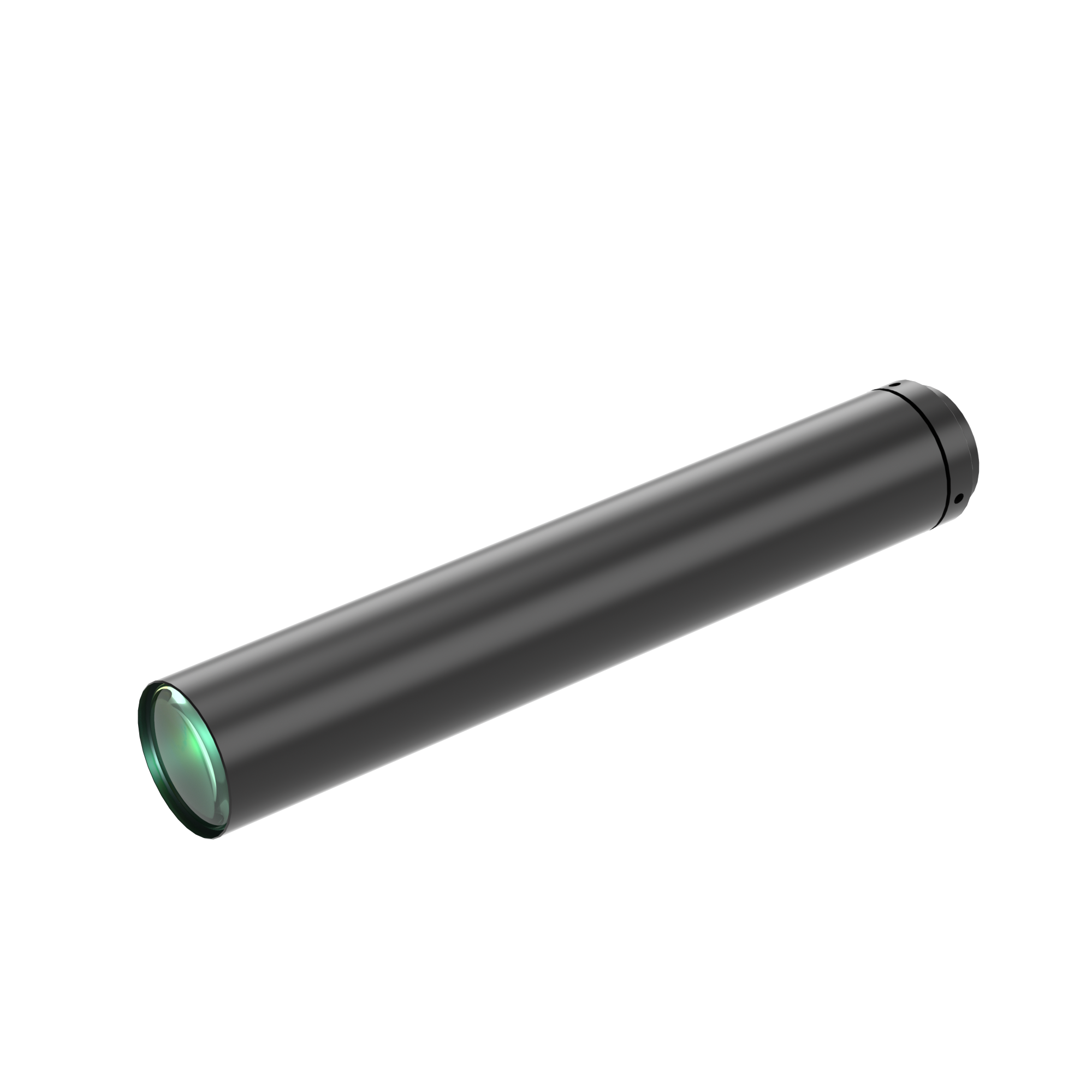

1" 0.5X Industrial Lenses | WH05-240A-110 COOLENS®

WH05-240A-110
Image Circle:16(1")mm, Magnification:0.5X, WD:240mm, NA:0.02006, Mount:C, Type:Fixed Magnification Lenses
$407.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$407.00 USD each
Description

Model NO. WH05-240A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.5 Working Distance(mm) 240
NA 0.0201 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.5
MTF30 (lp/mm) 75 Object Resolution(μm) 16.7
Depth of Field(mm) 4 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 174.4
With Coaxial Illumination Port No Measured Depth of Field (mm) 2.4
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 12.8x9.6
1/1.8"(7.13x5.37) 14.3x10.7
2/3"(8.8x6.6) 17.6x13.2
1"(12.43x9.83) 24.9x19.7

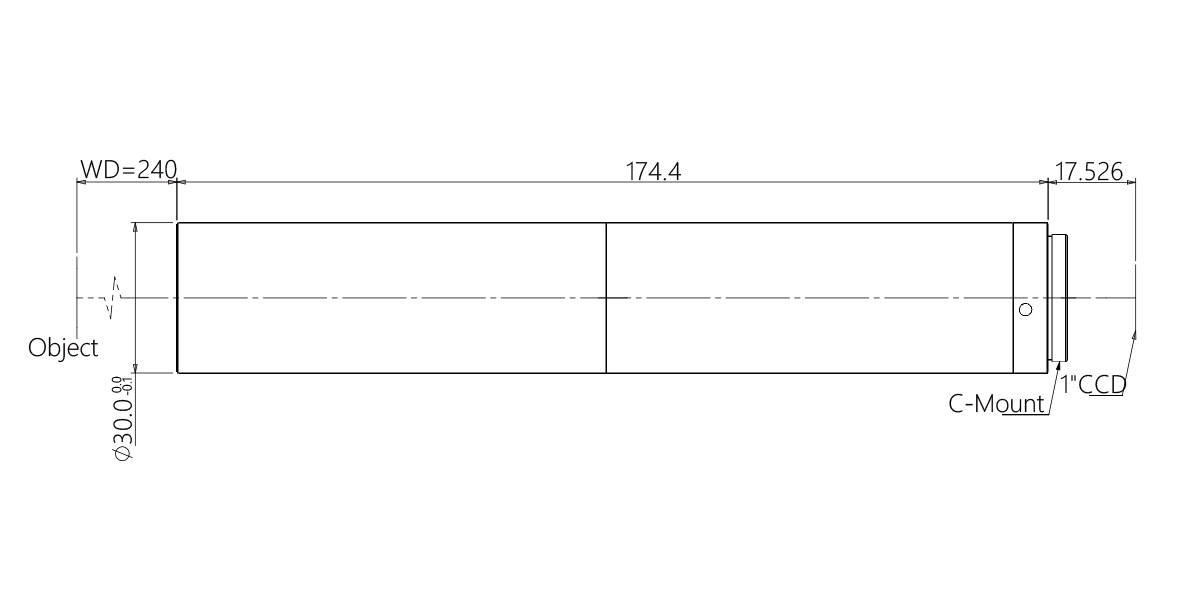

Dimensions

Naming Rule
