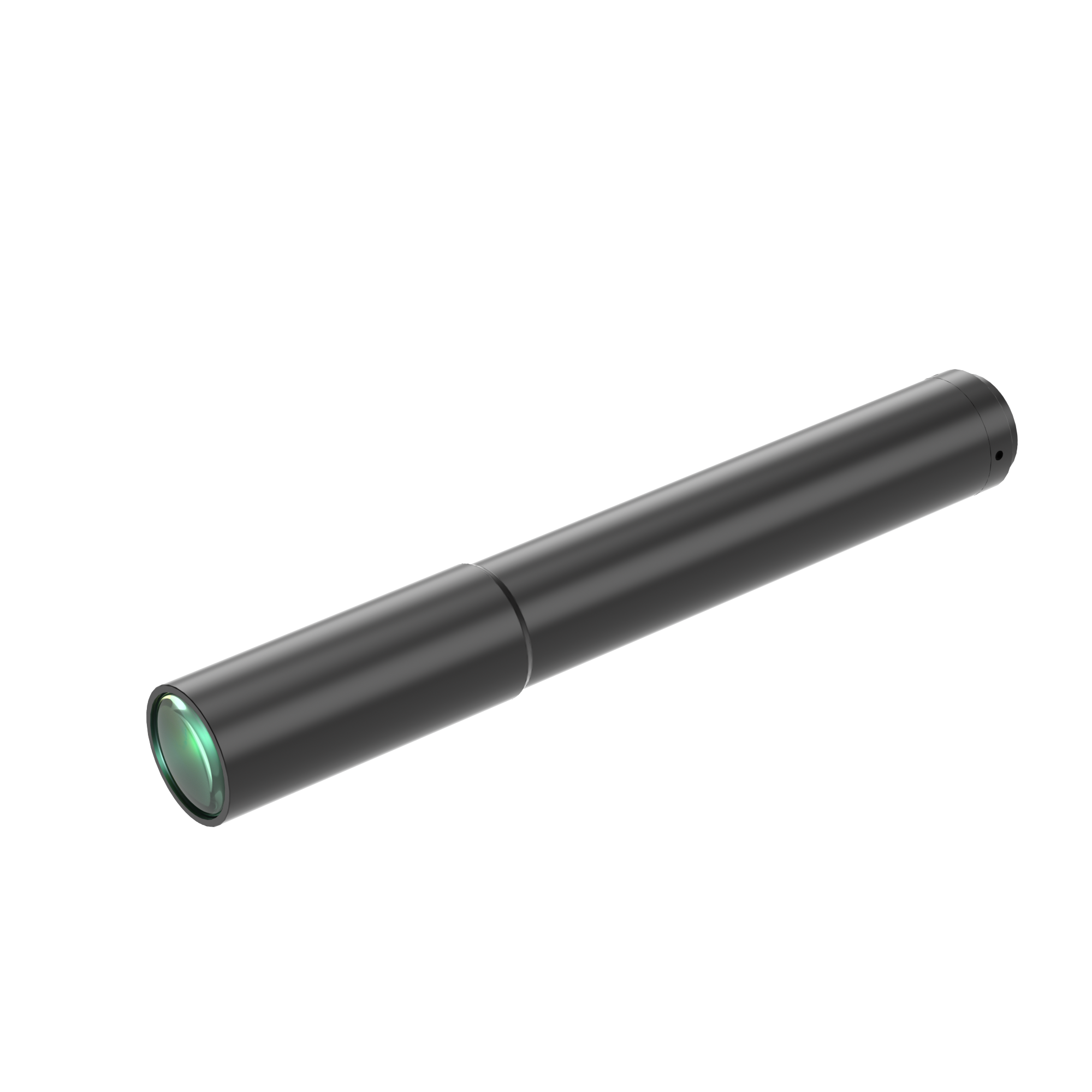

1" 0.5X Industrial Lenses | WH05-375A-110 COOLENS®

Name: 1" 0.5X Industrial Lenses | WH05-375A-110 COOLENS®
Brand: COOLENS
SKU: WH05-375A-110
Price: 450 USD
Availability: InStock
Rating: 0 (0 reviews)

WH05-375A-110

Image Circle:16(1")mm, Magnification:0.5X, WD:375mm, NA:0.02267, Mount:C, Type:Fixed Magnification Lenses

$450.00 USD

Quantity

Description

Model NO.	WH05-375A-110	Image Circle Diameter (Φmm)	16(1")
Magnification(x)	0.5	Working Distance(mm)	375
NA	0.0227	Type	Fixed Magnification
Mount	C	Best Aperture(f/#)	11
MTF30 (lp/mm)	75	Object Resolution(μm)	14.8
Depth of Field(mm)	3.5	Distortion Typical(% max)	0.05
Telecentricity Typical (°max)	Non-telecentric	Length (mm)	221.2
With Coaxial Illumination Port	No	Measured Depth of Field (mm)	1.8
Filter Screw Size	M29x0.5
Field of View (mm x mm)

1/1.8"(7.13x5.37)		14.3x10.7
2/3"(8.8x6.6)		17.6x13.2
1"(12.43x9.83)		24.9x119.7

1" 0.5X Industrial Lenses | WH05-375A-110 COOLENS®

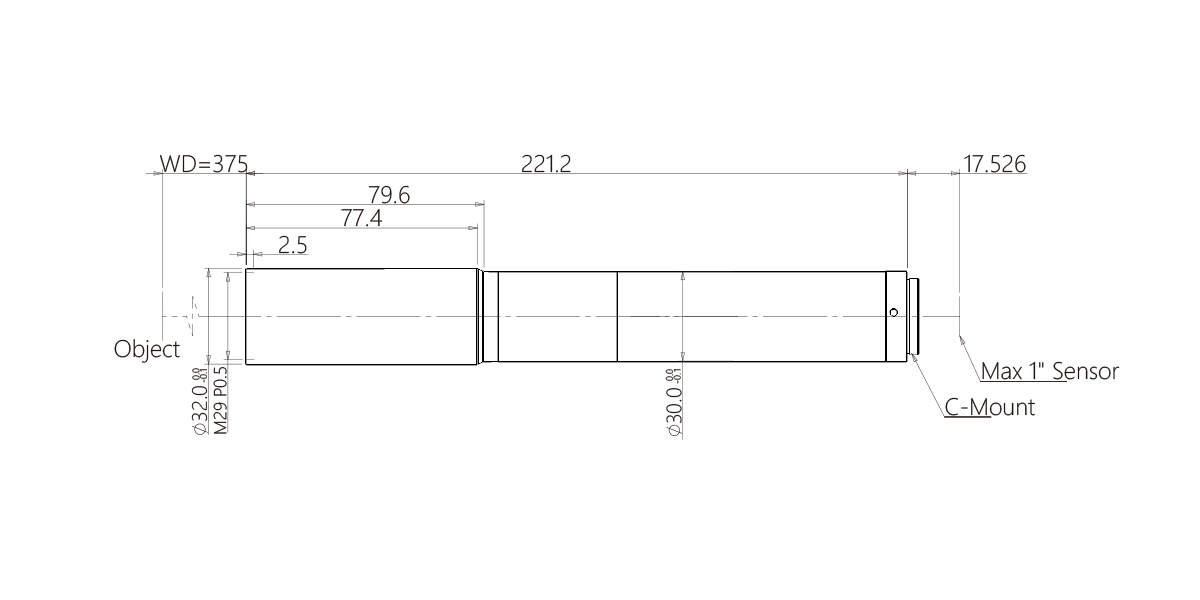

Dimensions

Naming Rule
