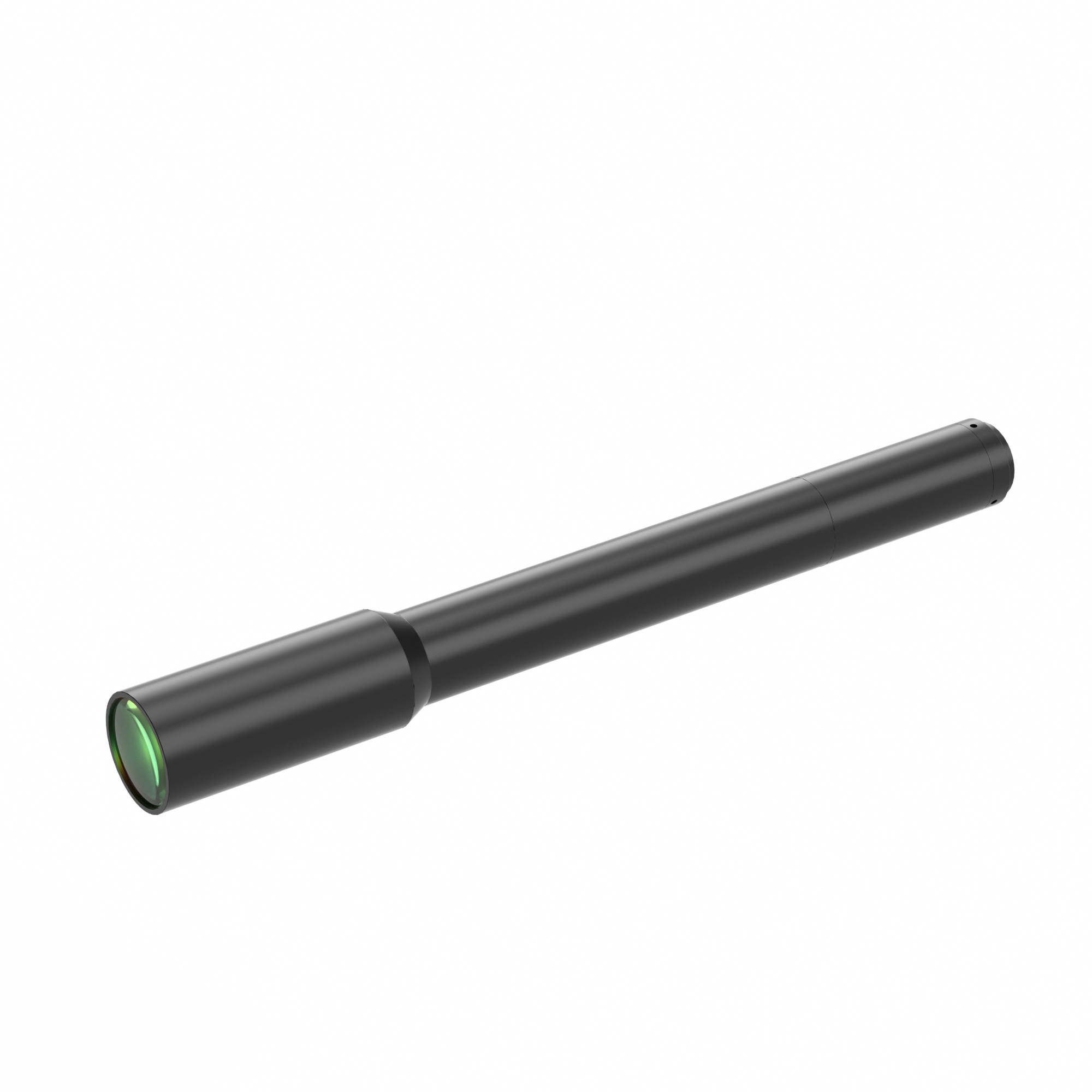

1" 0.5X Industrial Lenses | WH05-500A-110 COOLENS®

$471.00 USD
Shipping calculated at checkout.
Quantity
1" 0.5X  Industrial Lenses | WH05-500A-110 COOLENS®-OKLAB

Description

Model NO. WH05-500A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.5 Working Distance(mm) 500
NA 0.0173 Type Fixed Magnification
Mount C Best Aperture(f/#) 14.4
MTF30 (lp/mm) 70 Object Resolution(μm) 19.4
Depth of Field(mm) 4.6 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) Non-telecentric Length (mm) 316.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 3.2
Filter Screw Size M35x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 12.8x9.6
1/1.8"(7.13x5.37) 14.3x10.7
2/3"(8.8x6.6) 17.6x13.2
1"(12.43x9.83) 24.9x19.7

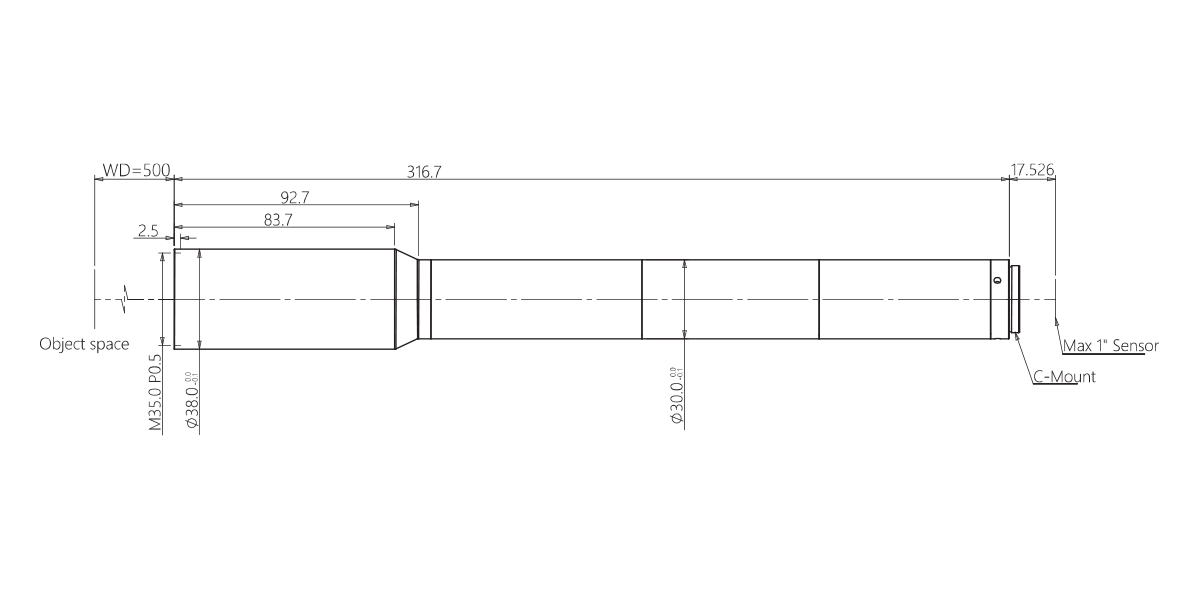

Dimensions

Naming Rule



  • Description

Model NO. WH05-500A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.5 Working Distance(mm) 500
NA 0.0173 Type Fixed Magnification
Mount C Best Aperture(f/#) 14.4
MTF30 (lp/mm) 70 Object Resolution(μm) 19.4
Depth of Field(mm) 4.6 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) Non-telecentric Length (mm) 316.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 3.2
Filter Screw Size M35x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 12.8x9.6
1/1.8"(7.13x5.37) 14.3x10.7
2/3"(8.8x6.6) 17.6x13.2
1"(12.43x9.83) 24.9x19.7

Dimensions

Naming Rule
